BOSE MODULE REPLACEMENTREMOVAL PROCEDURE
1. Remove the front floor kick-up panel.
2. Remove the cover from the instrument panel (IP) electrical center.
3. Remove the RDO/ANT MiniFuse(R) #24 from the IP electrical center.
4. Remove the IP left lower insulator panel.
5. Disconnect the electrical/audio connector from the Bose(R) signal processing module.
IMPORTANT: The signal processing module is only held in place by retaining bolts. Be sure to support the signal processor upon removal of the bolts.

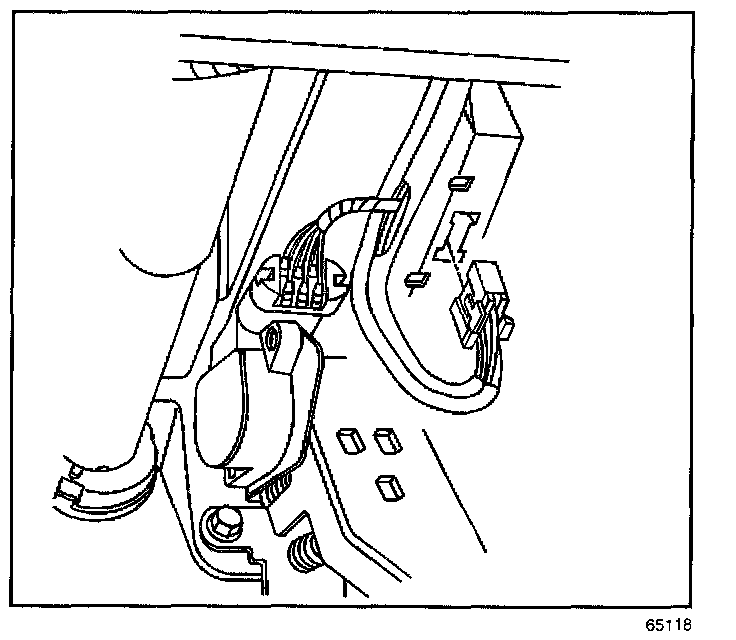

6. Remove the bolts retaining the Bose(R) signal processor to the steering column bracket.
7. Remove the signal processing module.
INSTALLATION PROCEDURE

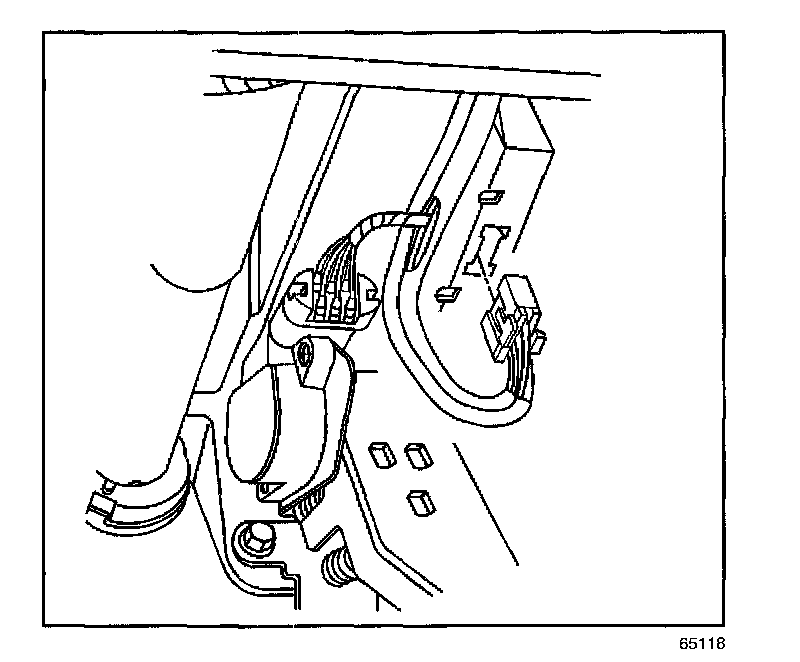

1. Install the Bose(R) signal processing module into position on the steering column bracket.
NOTE: Refer to Fastener Notice in Service Precautions.
2. Install the Bose(R) signal processing module retaining bolts.
Tighten
Tighten the Bose(R) signal processing module retaining bolts to 2.5 N.m (22 lb in).
3. Connect the electrical/audio connector to the signal processing module.
4. Install the IP left lower insulator panel.
5. Install the RDO/ANT MiniFuse(R) #24 to the IP electrical center.
6. Install the cover to the I/P electrical center.
7. Install the front floor kick-up panel.
