Rear Compartment Lid Release CTRL & Rear Compartment Lid Ajar SW (Coupe)
Rear Compartment Lid Release CTRL & Rear Compartment Lid Ajar SW (Coupe)

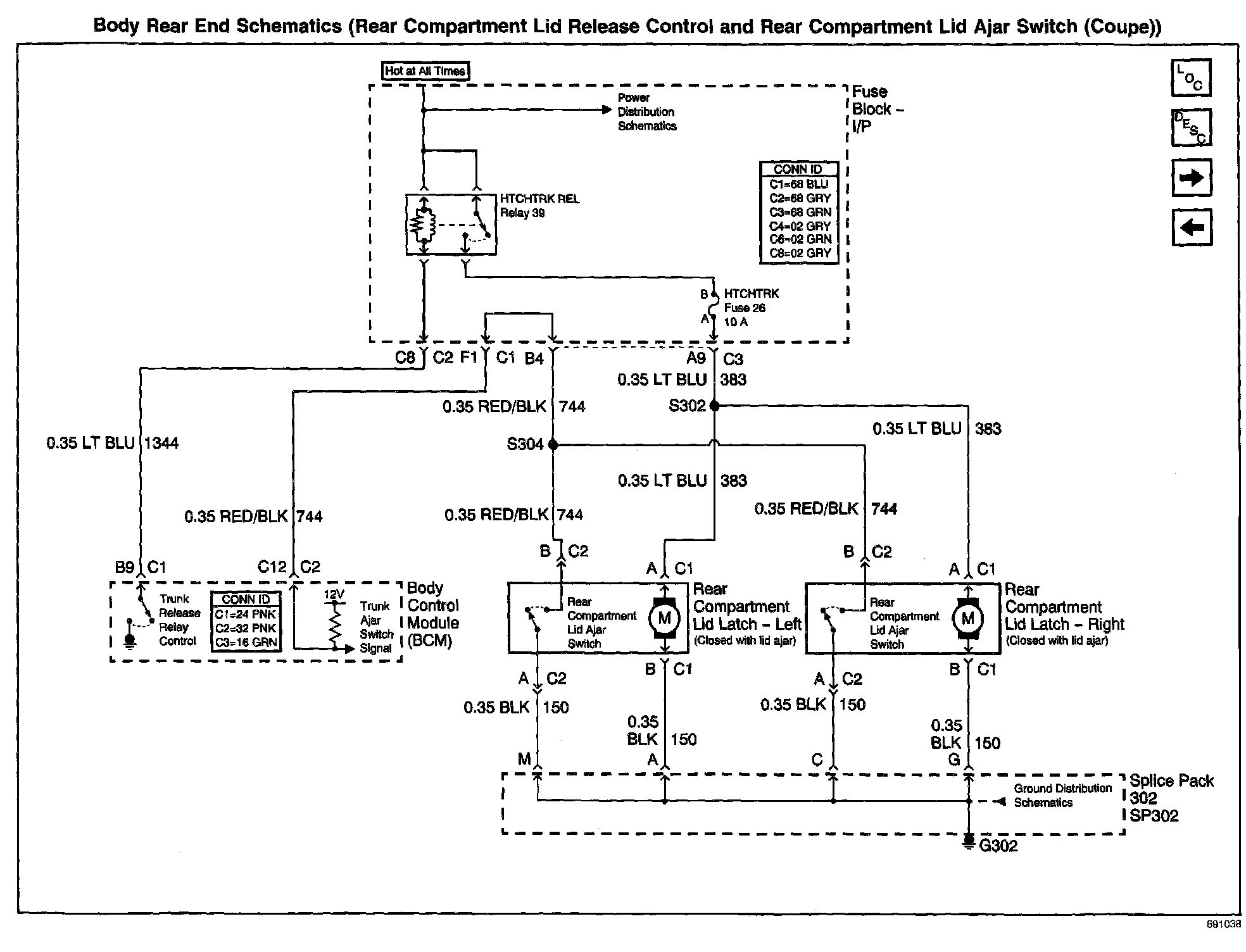

Body Rear End Schematics: Rear Compartment Lid Release Control And Rear Compartment Lid Ajar Switch (Coupe):
