Ambient Temperature Sensor / Switch HVAC

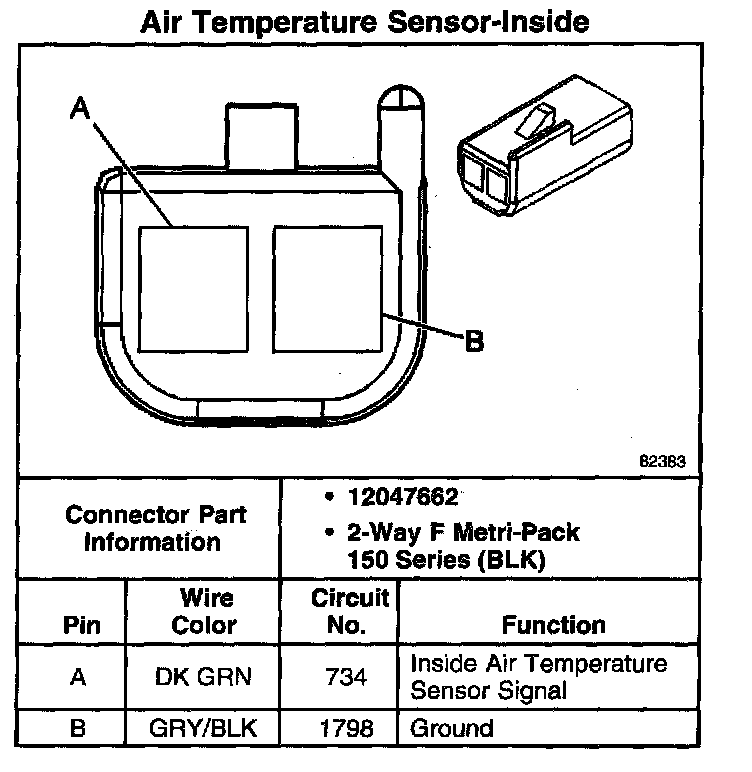

Air Temperature Sensor-Inside - HVAC Systems - Automatic:

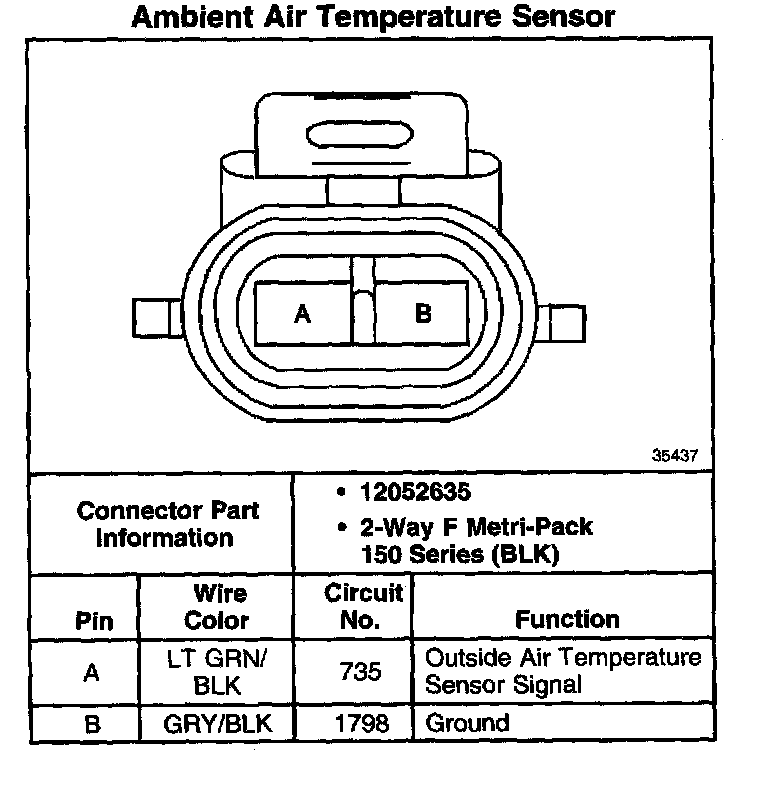

Ambient Air Temperature Sensor - HVAC Systems - Automatic:
