Corvette V8-5.7L VIN S
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Amplifier, Sound System
>>
Bose(R) Signal Processor - Hardtop/Convertible
Bose(R) Signal Processor - Hardtop/Convertible

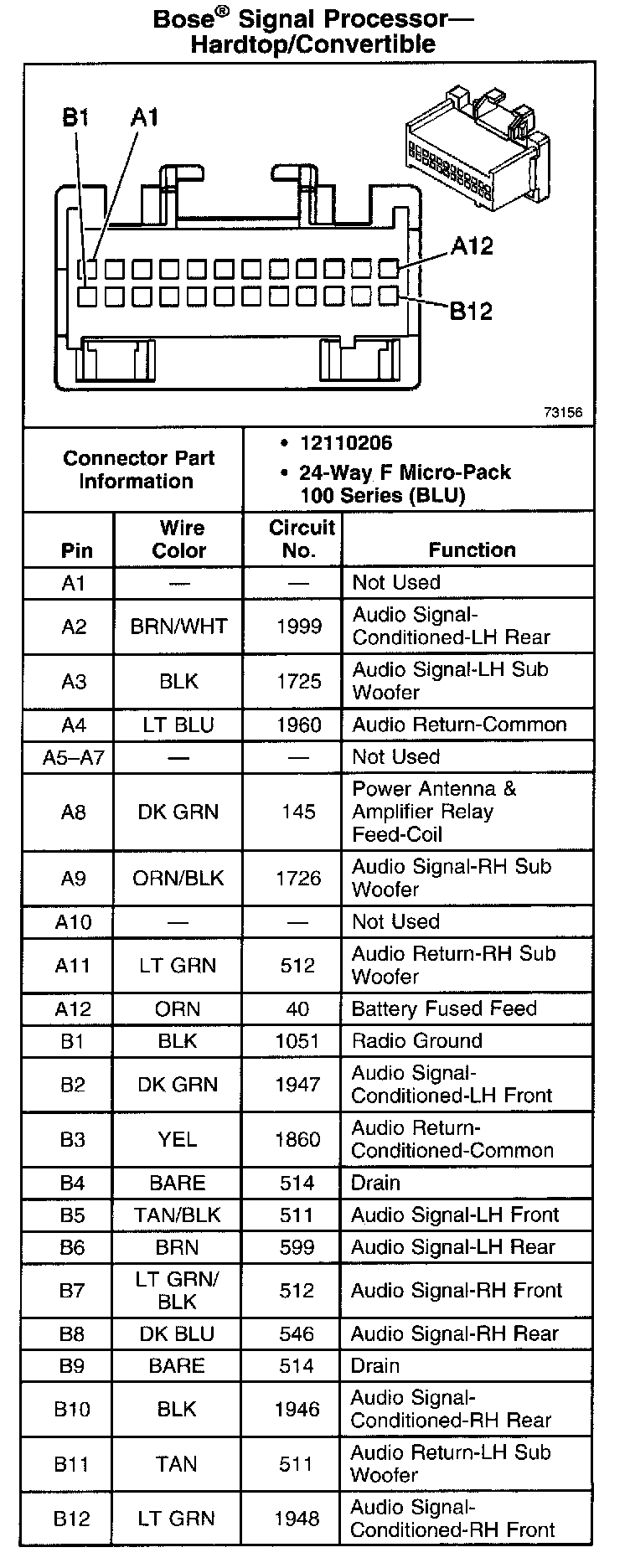

Bose(R) Signal Processor - Hardtop/Convertible:
