Home >> Chevrolet >> 2002 >> Corvette V8-5.7L VIN S >> Repair and Diagnosis >> Diagrams >> Connector Views >> Brake Lamp >> Tail/Stop and Turn Signal Lamp - Right (Domestic)

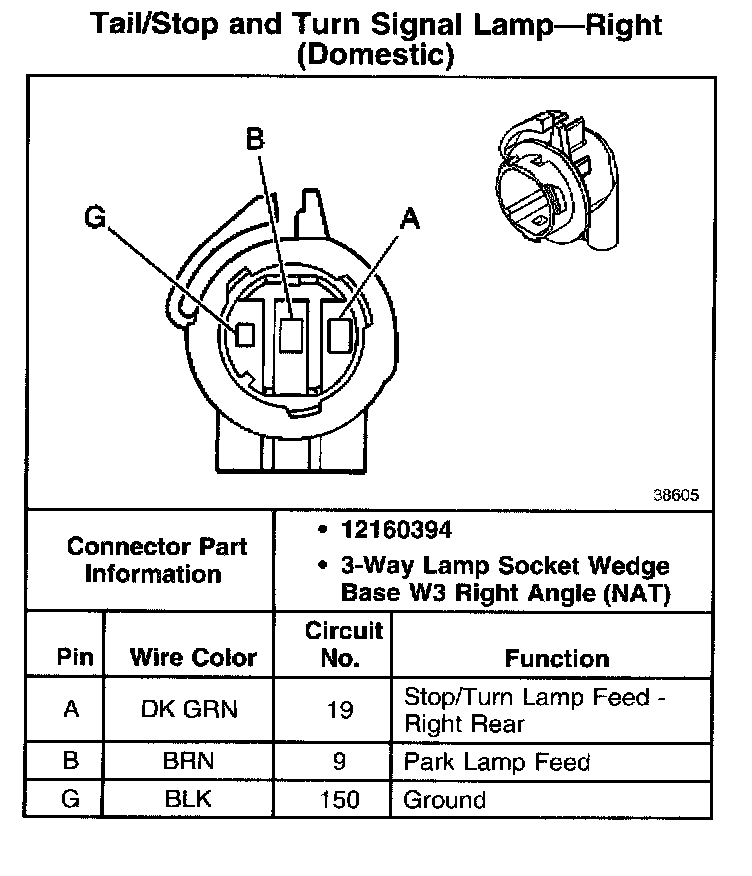

Tail/Stop and Turn Signal Lamp - Right (Domestic)

Tail/Stop And Turn Signal Lamp - Right (Domestic):
