CD Changer
CD Changer

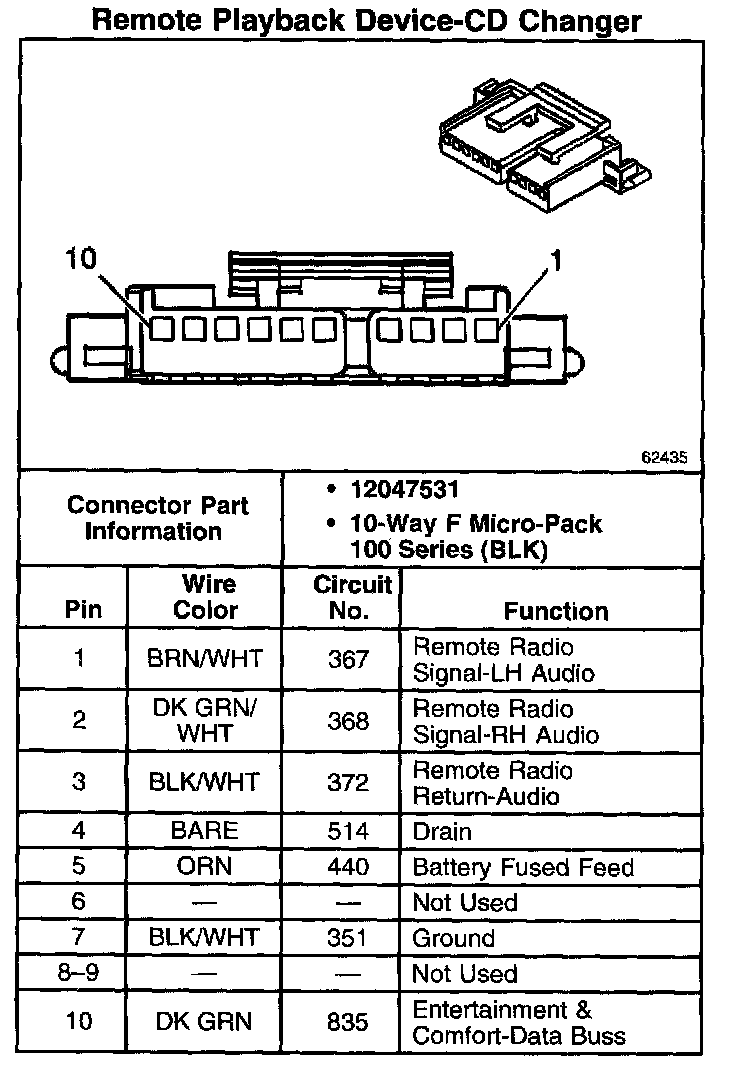

Remote Playback Device - CD Changer:

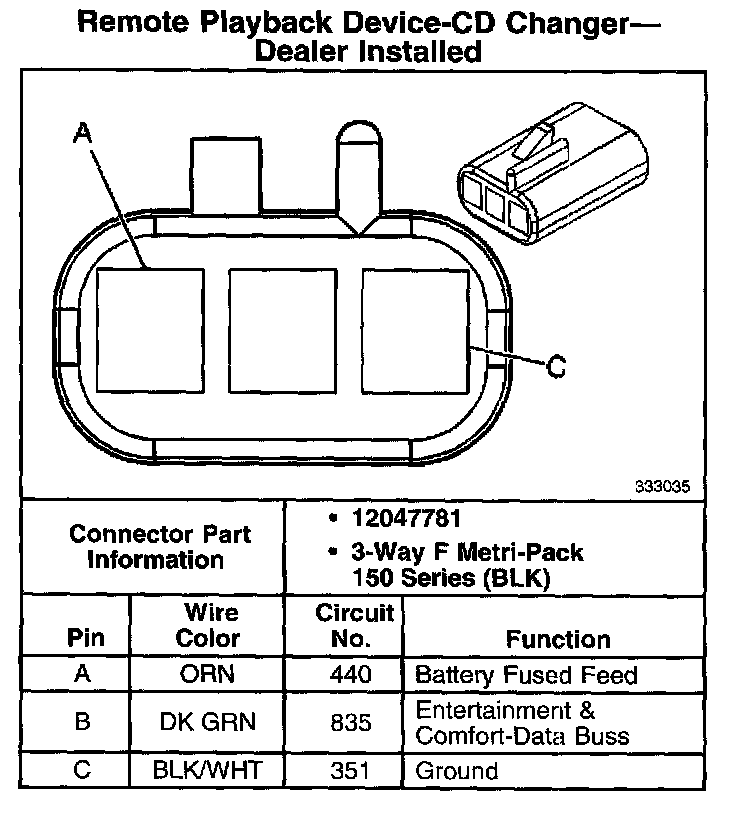

Remote Playback Device - CD Changer - Dealer Installed:
