Door Switch

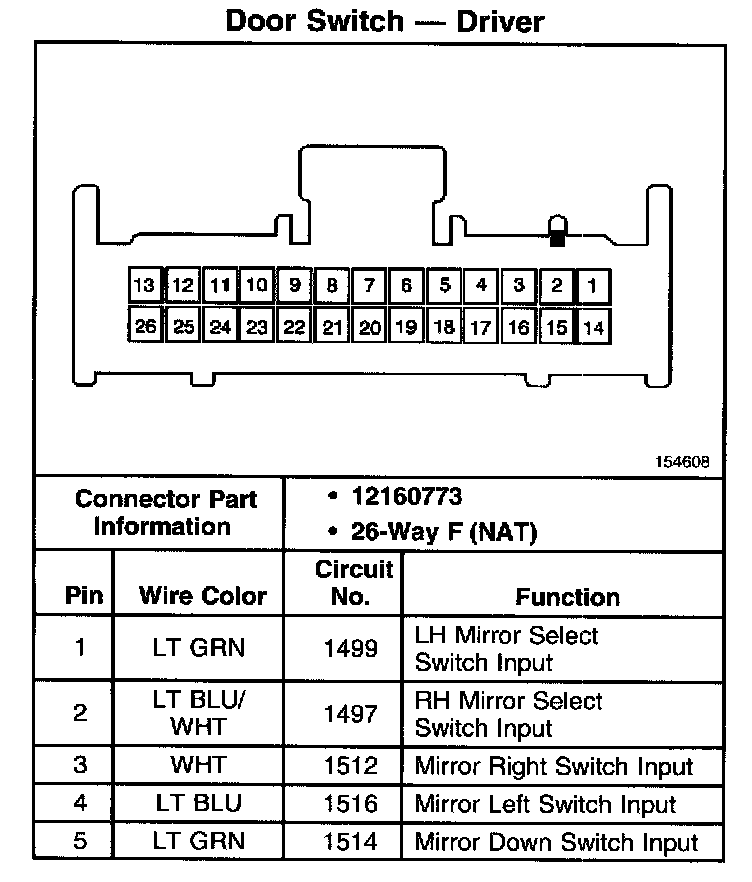

Door Switch - Driver Part 1:



Door Switch - Driver Part 2:

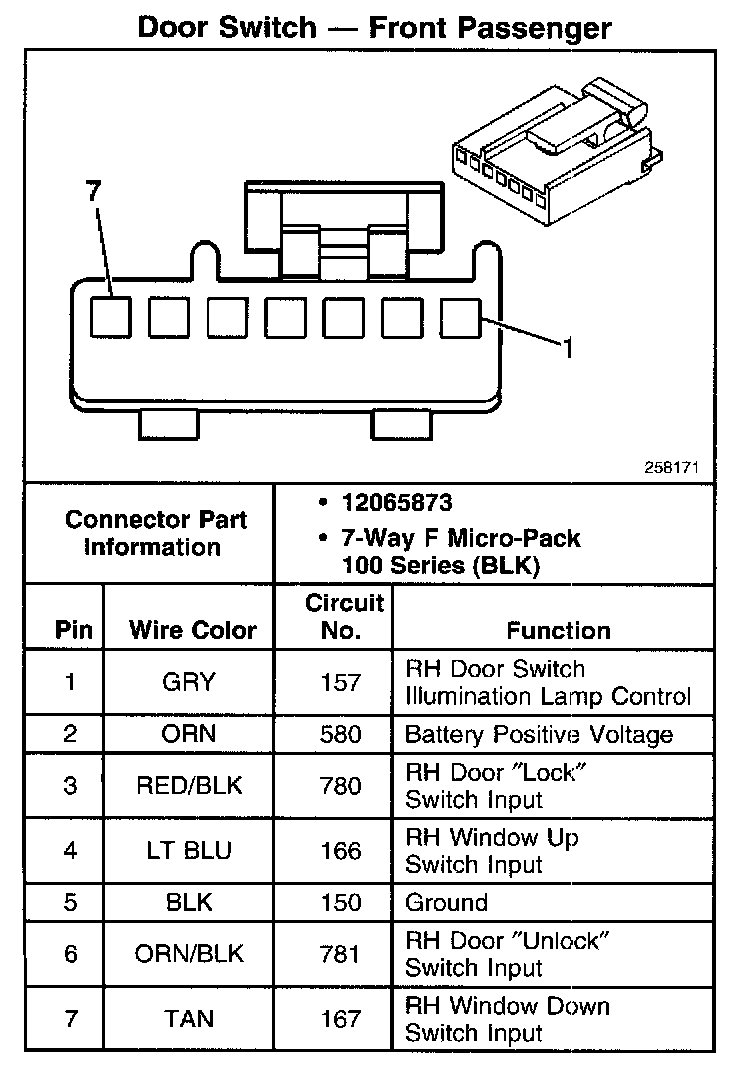

Door Switch - Front Passenger:
