Fuse Block - I/P
Fuse Block - I/P
Fuse Block-I/P C1:

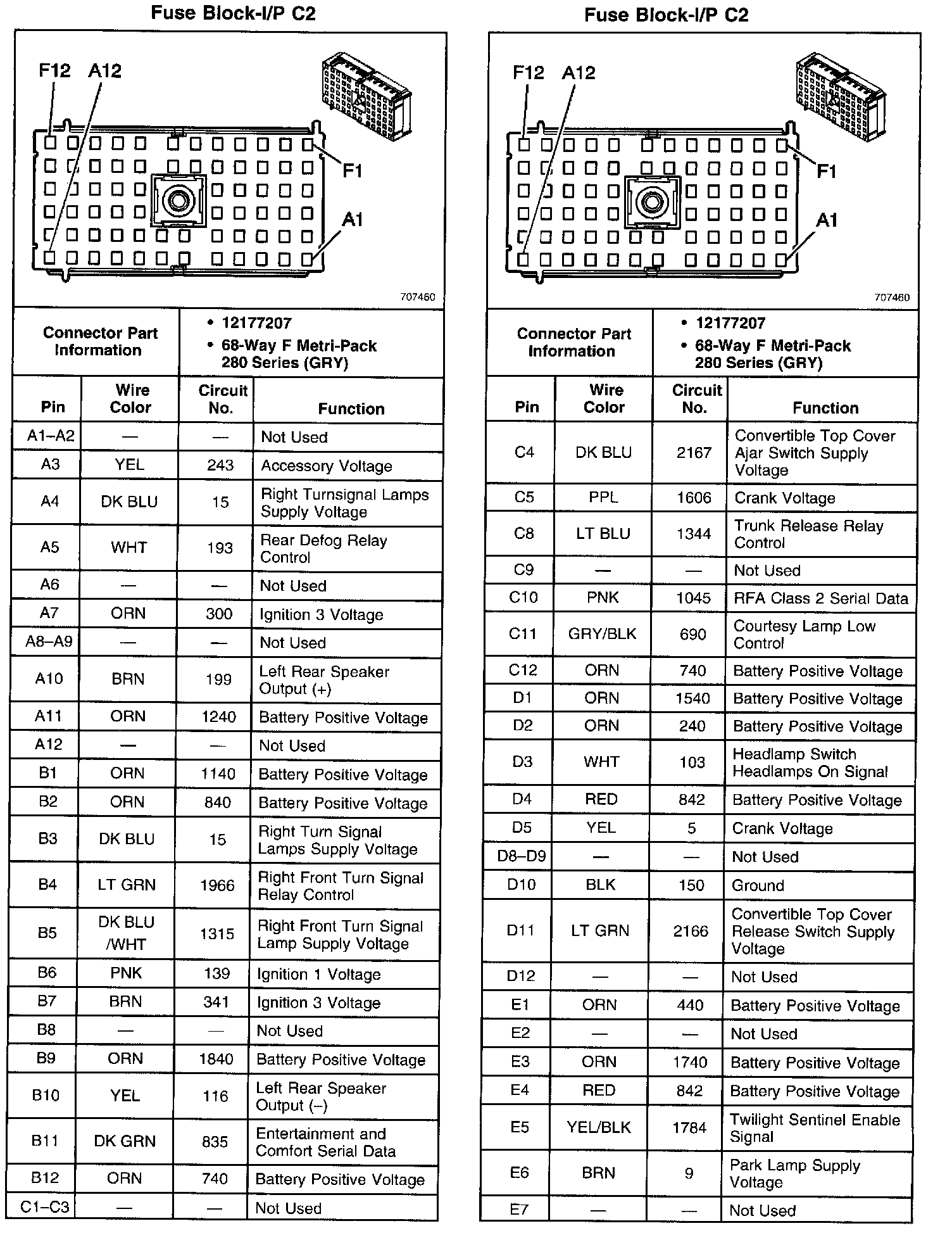

Fuse Block-I/P C2 Part 1:

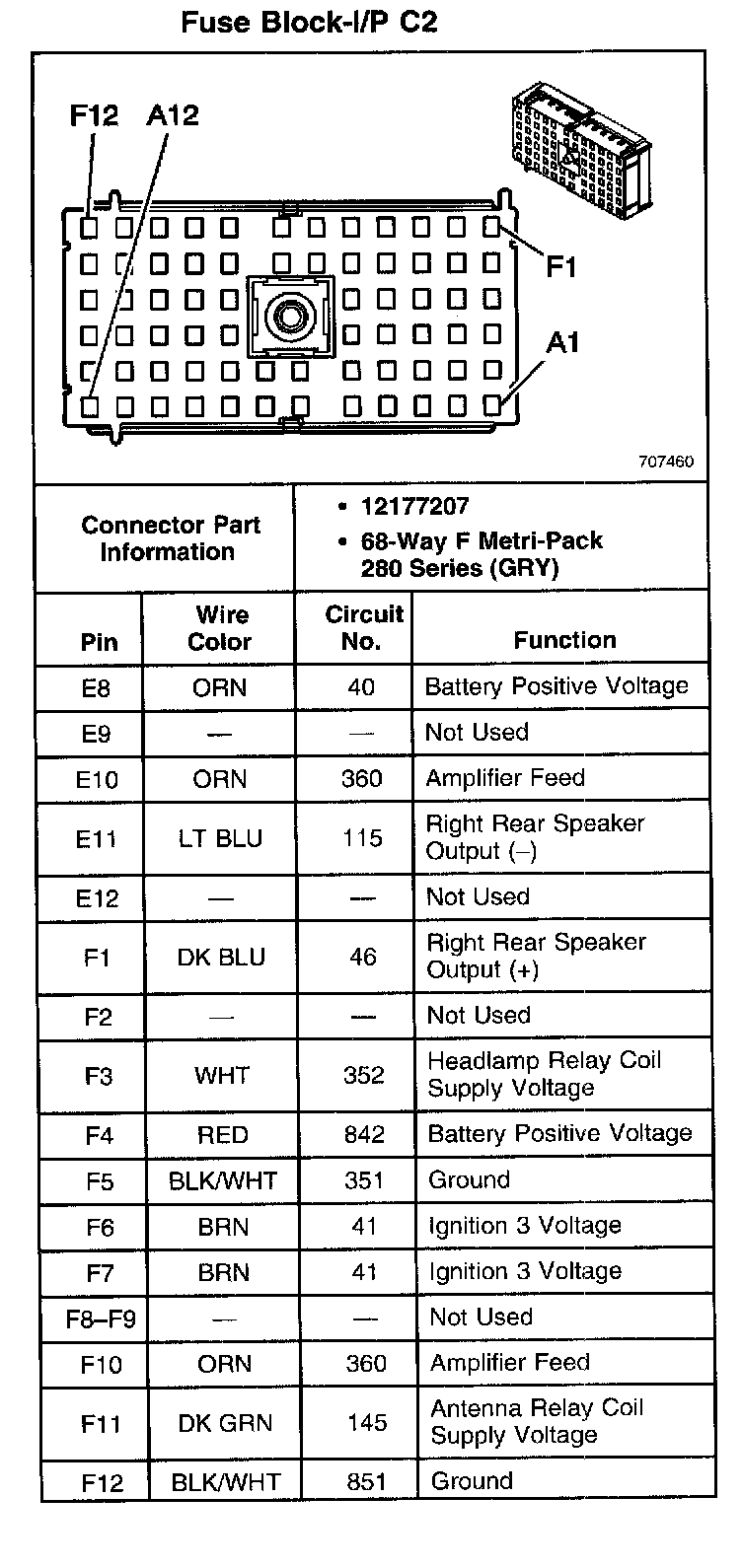

Fuse Block-I/P C2 Part 2:
Fuse Block-I/P C3 Part 1:
Fuse Block-I/P C3 Part 2:
