Headlamp
>>
System Diagram
System Diagram

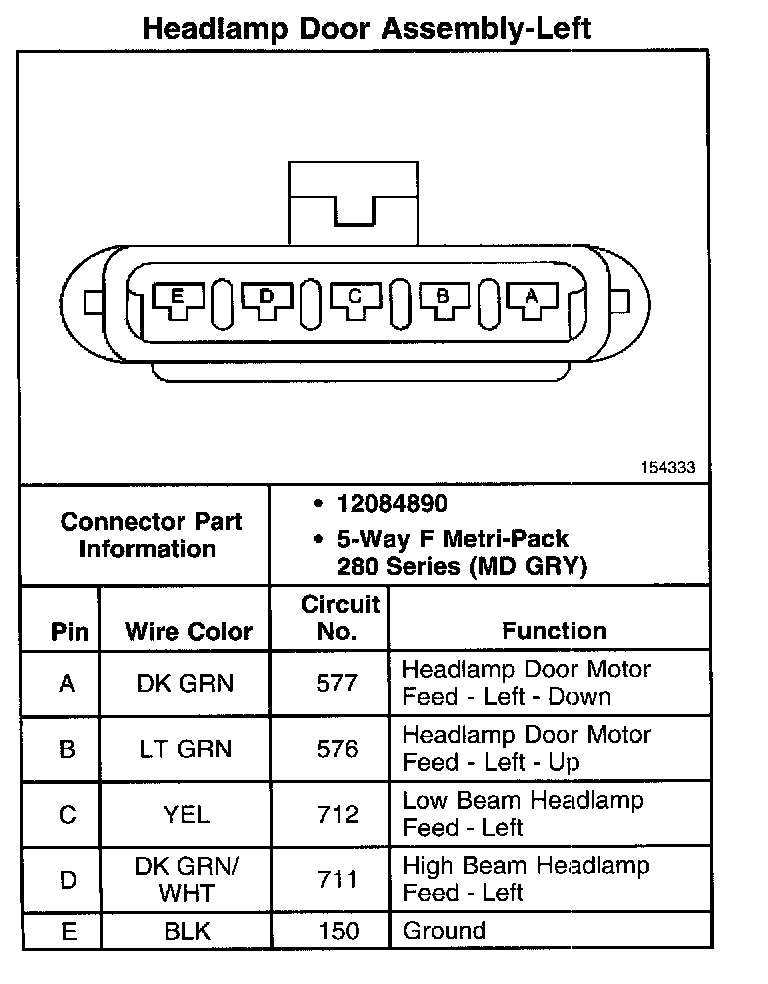

Headlamp Door Assembly - Left:
Headlamp Door Assembly - Right:
