Outside Rearview Mirror - Passenger C2
Outside Rearview Mirror - Passenger C2

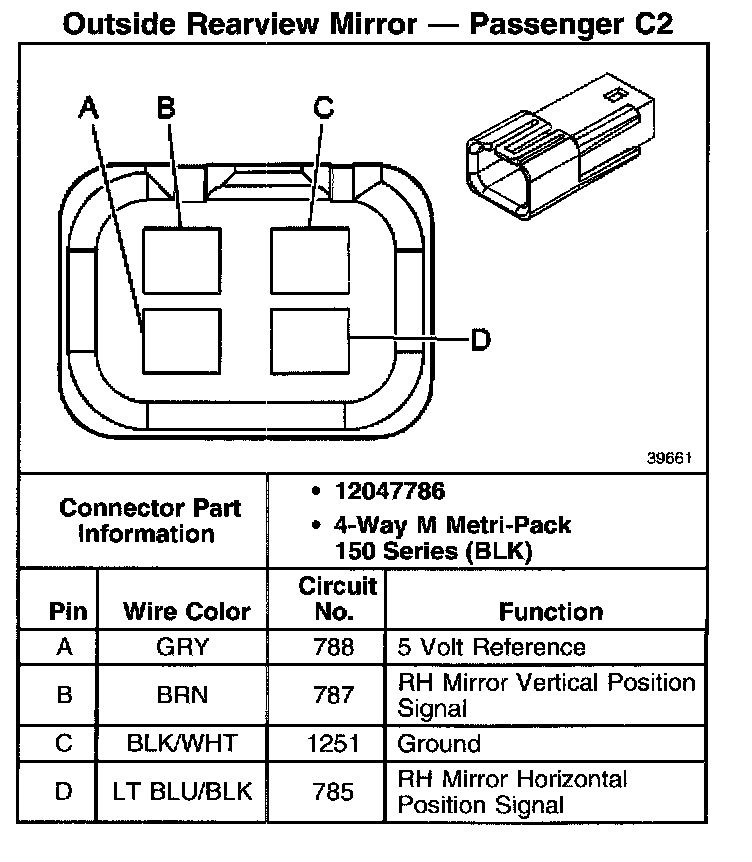

Outside Rearview Mirror - Passenger C2:
