Corvette V8-5.7L VIN S
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Transmission Control Systems
>>

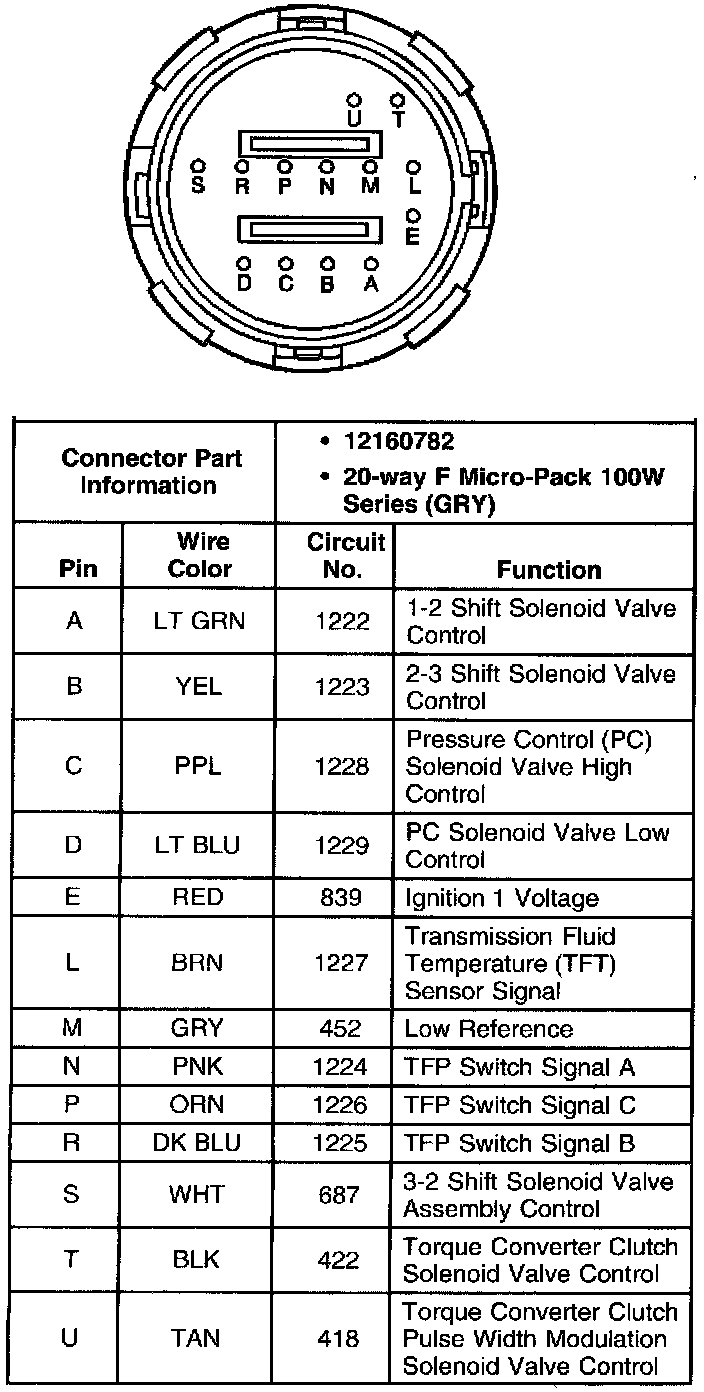

A/T Inline Harness Connector End View
A/T Inline Harness Connector End View
