Home >> Chevrolet >> 2002 >> Corvette V8-5.7L VIN S >> Repair and Diagnosis >> Diagrams >> Connector Views >> Trunk / Liftgate Switch >> Rear Compartment Lid Latch C1

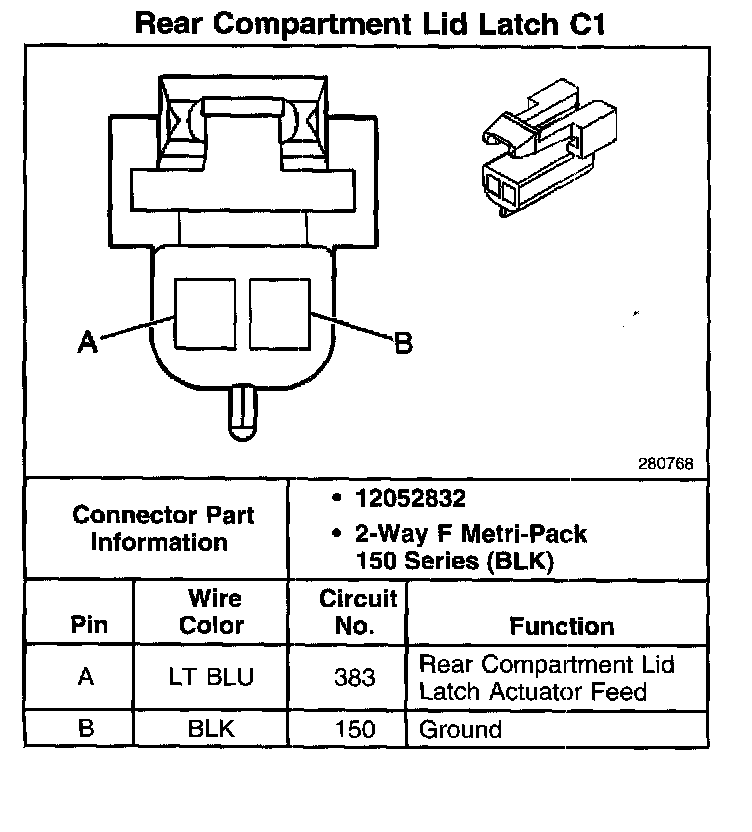

Rear Compartment Lid Latch C1

Rear Compartment Lid Latch C1:
