Master Connector List

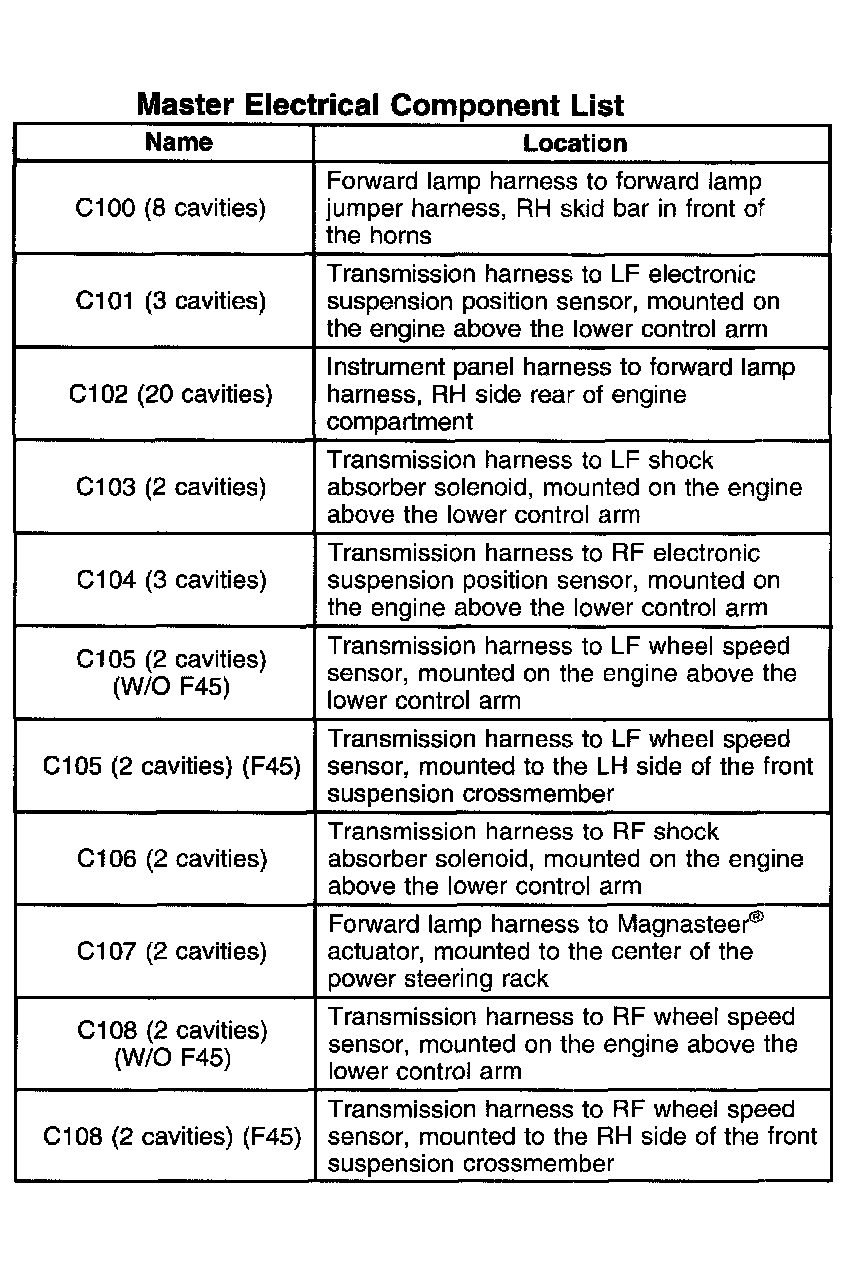

C100 (8 cavities) - C108 (2 cavities) (F45):

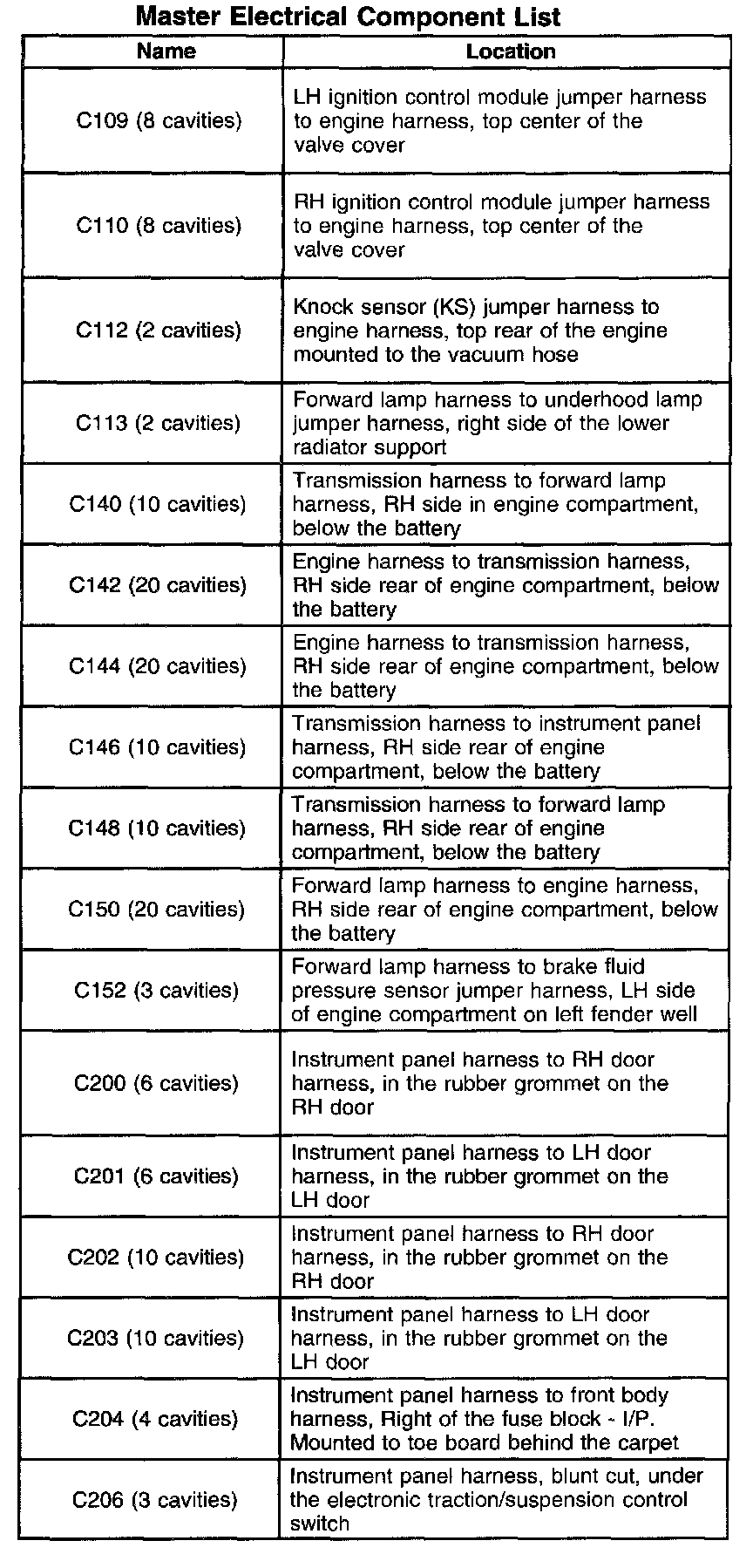

C109 (8 cavities) - C206 (3 cavities):

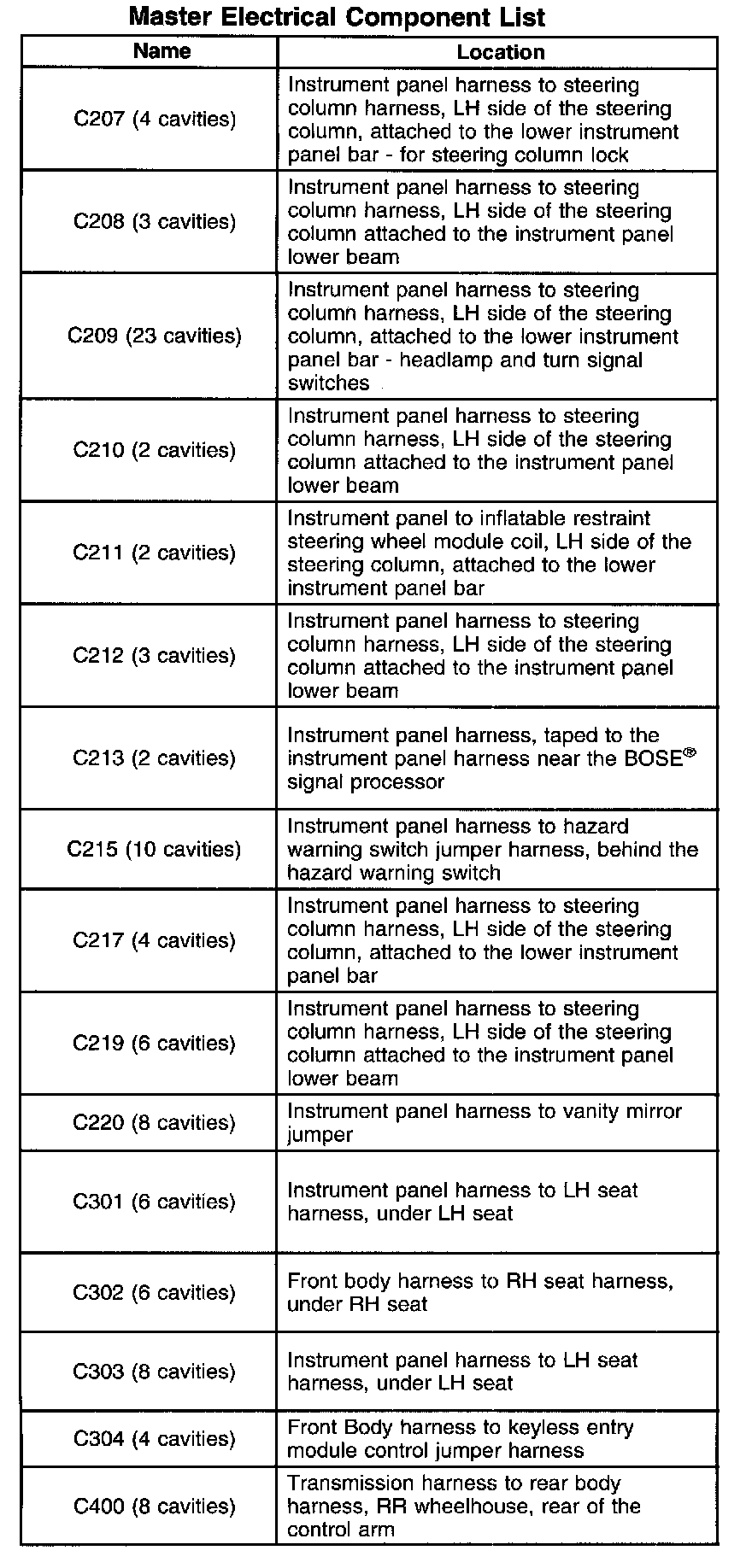

C207 (4 cavities) - C400 (8 cavities):

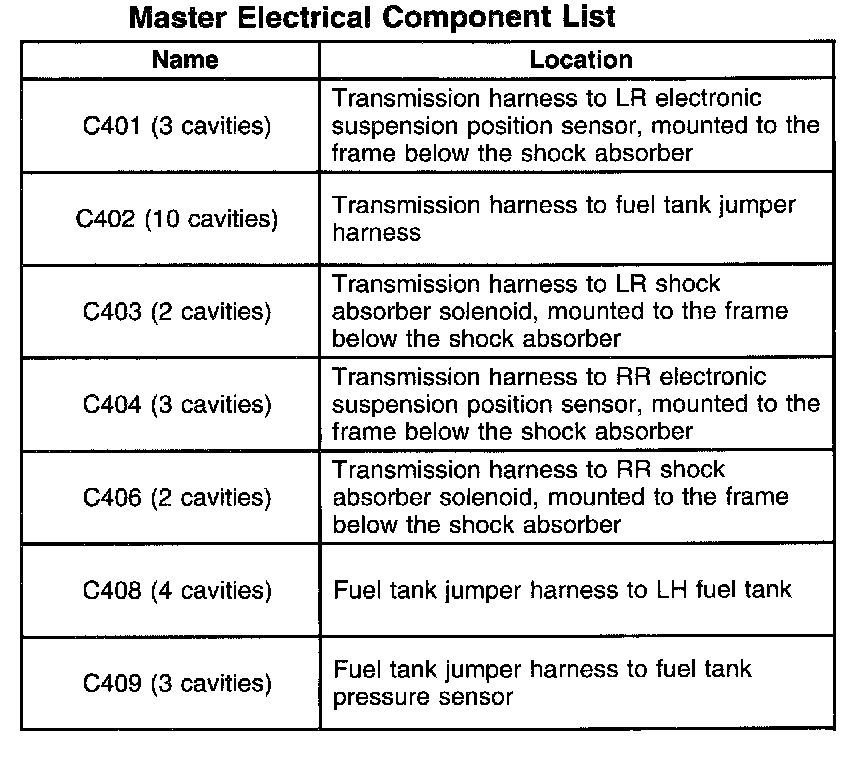

C401 (3 cavities) - C409 (3 cavities):

"For a description of the RPO Code(s) shown in this article or any of the images therein, refer to the RPO Code List found at Vehicle/Application ID". RPO Codes
