Accessory Delay Module
Accessory Delay Module

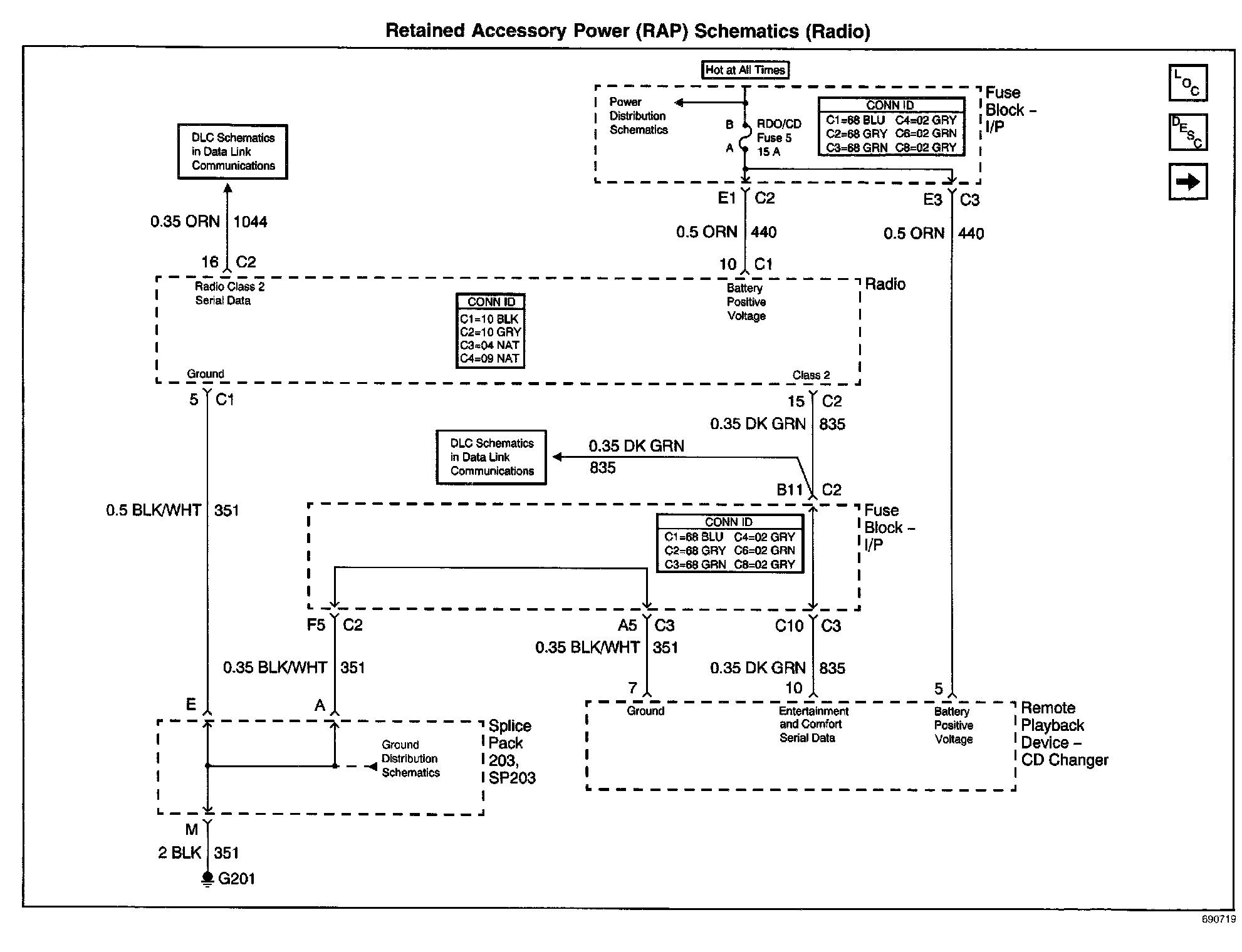

Retained Accessory Power (RAP) Schematics: Radio:

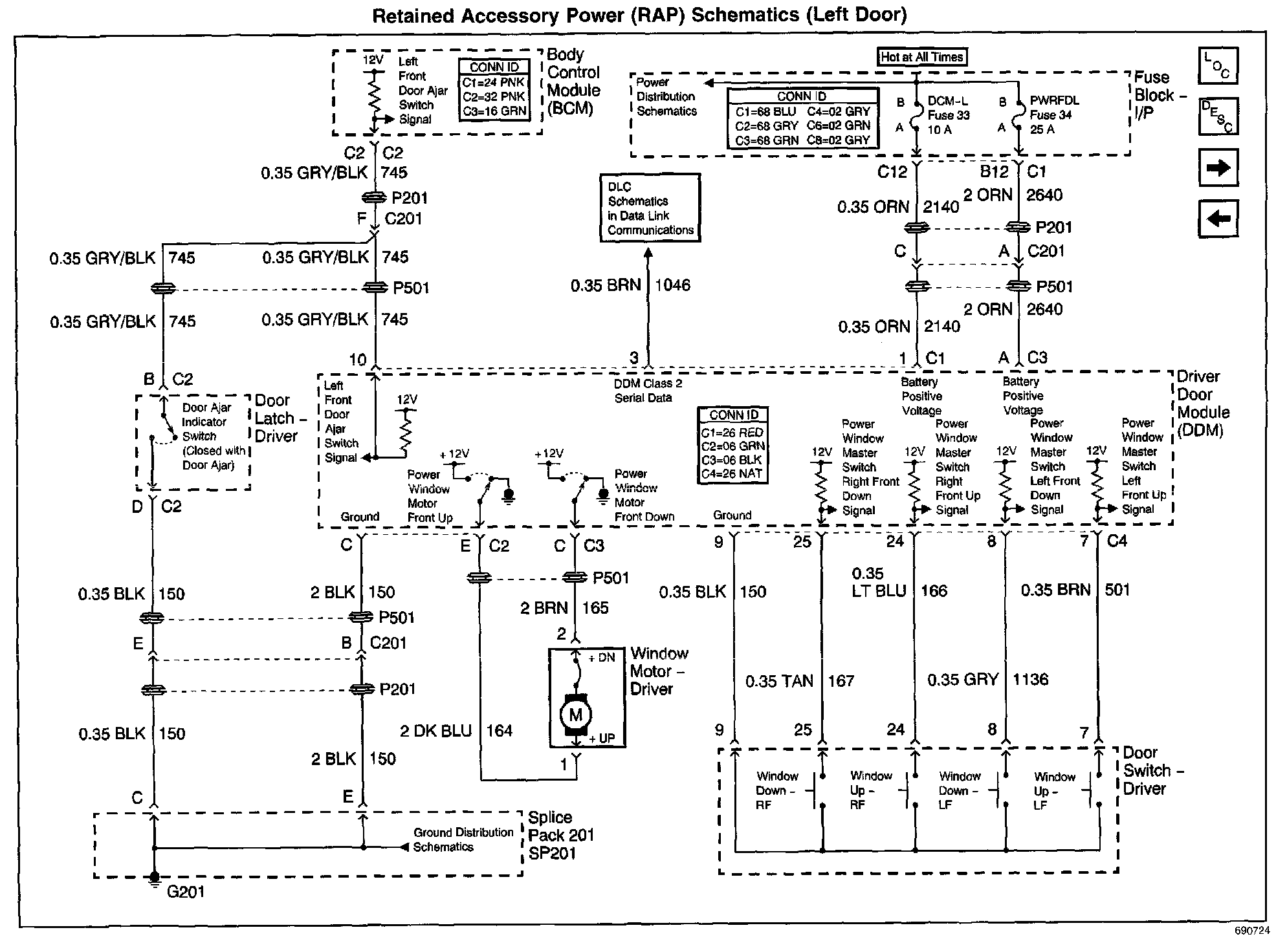

Retained Accessory Power (RAP) Schematics: Left Door:

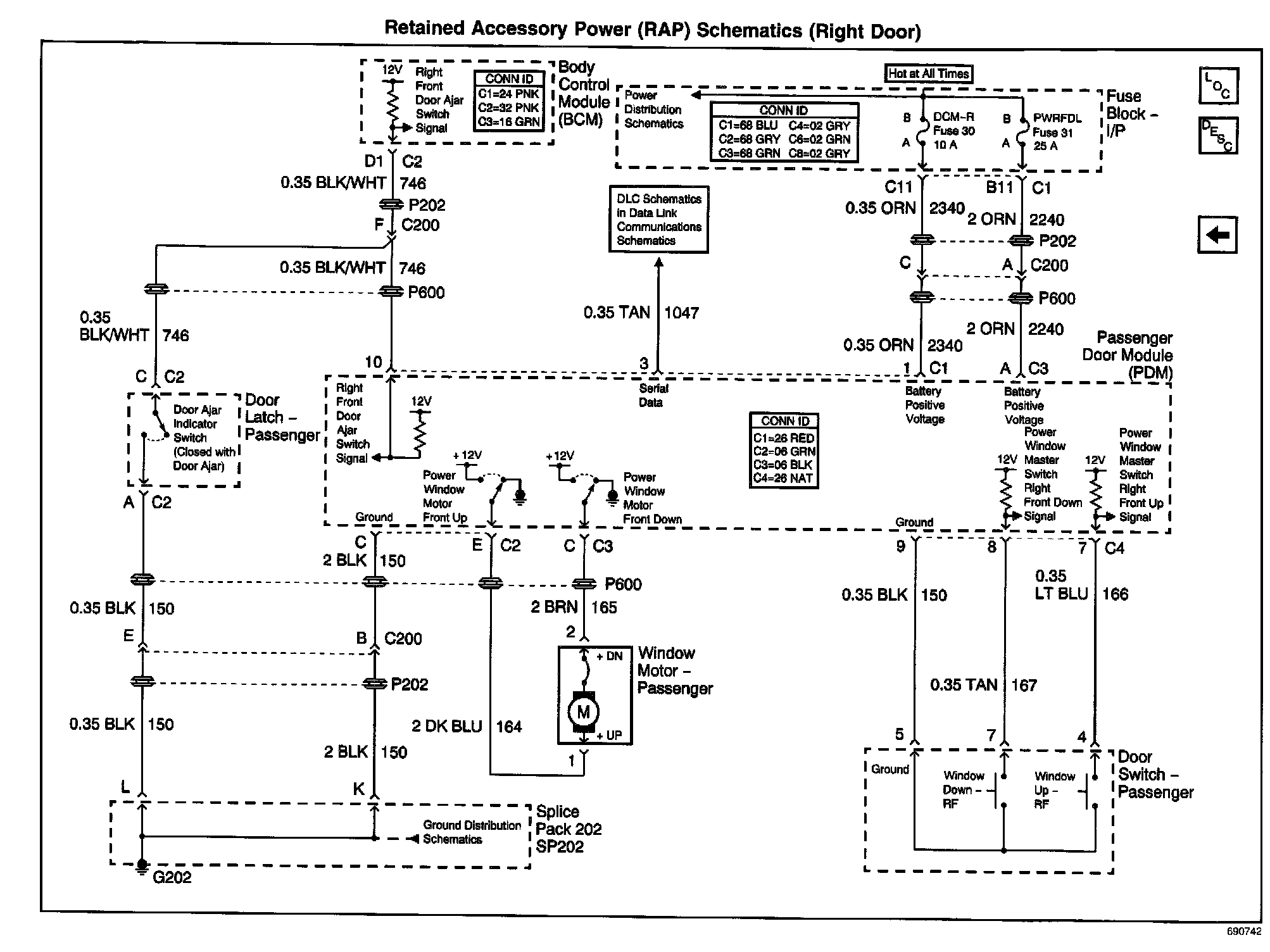

Retained Accessory Power (RAP) Schematics: Right Door:
