Inside Rearview Mirror Schematics
Inside Rearview Mirror Schematics

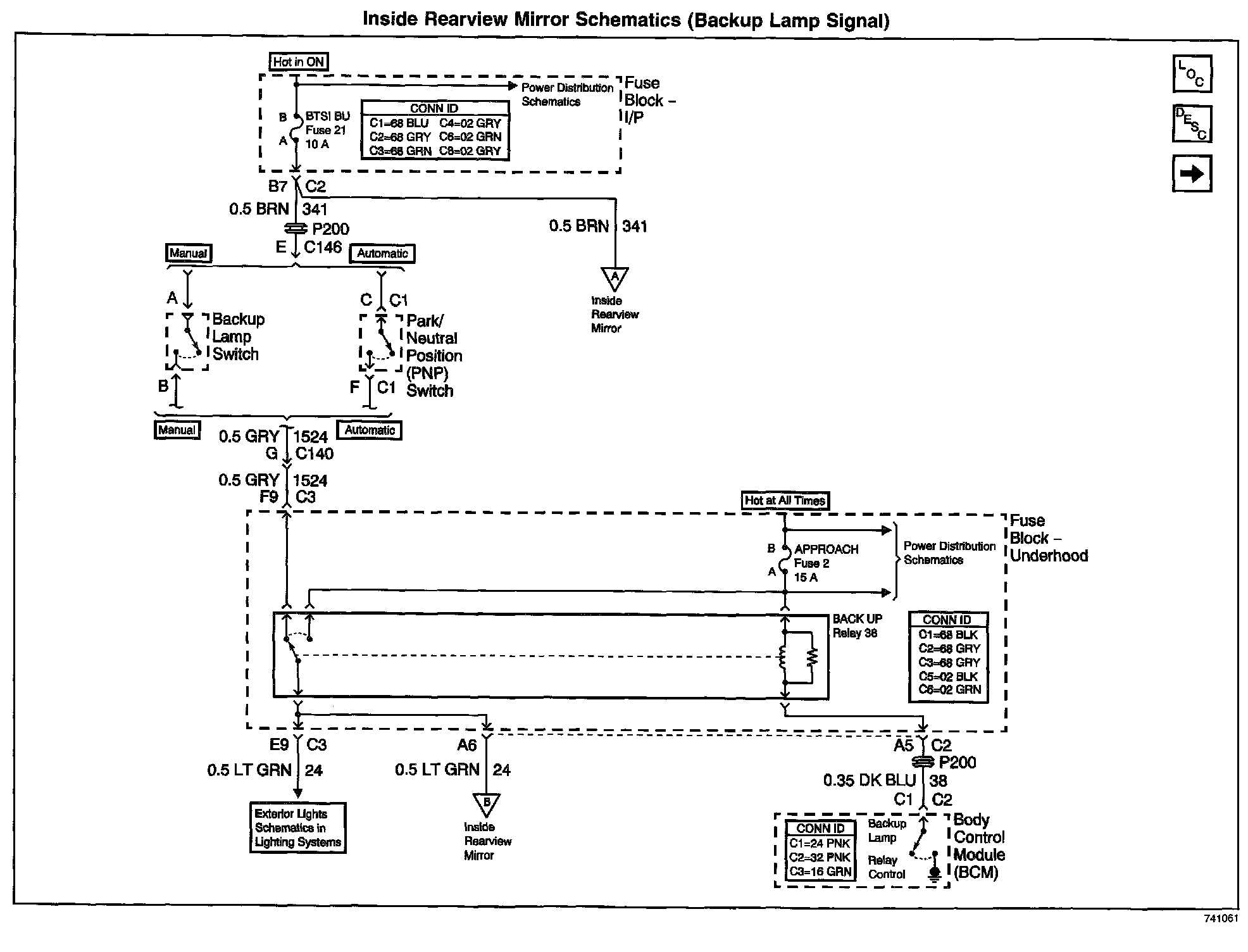

Inside Rearview Mirror Schematics: Backup Lamp Signal:
Inside Rearview Mirror Schematics: Headlight And Photo Sensors:
