Speedometer Head
Speedometer Head

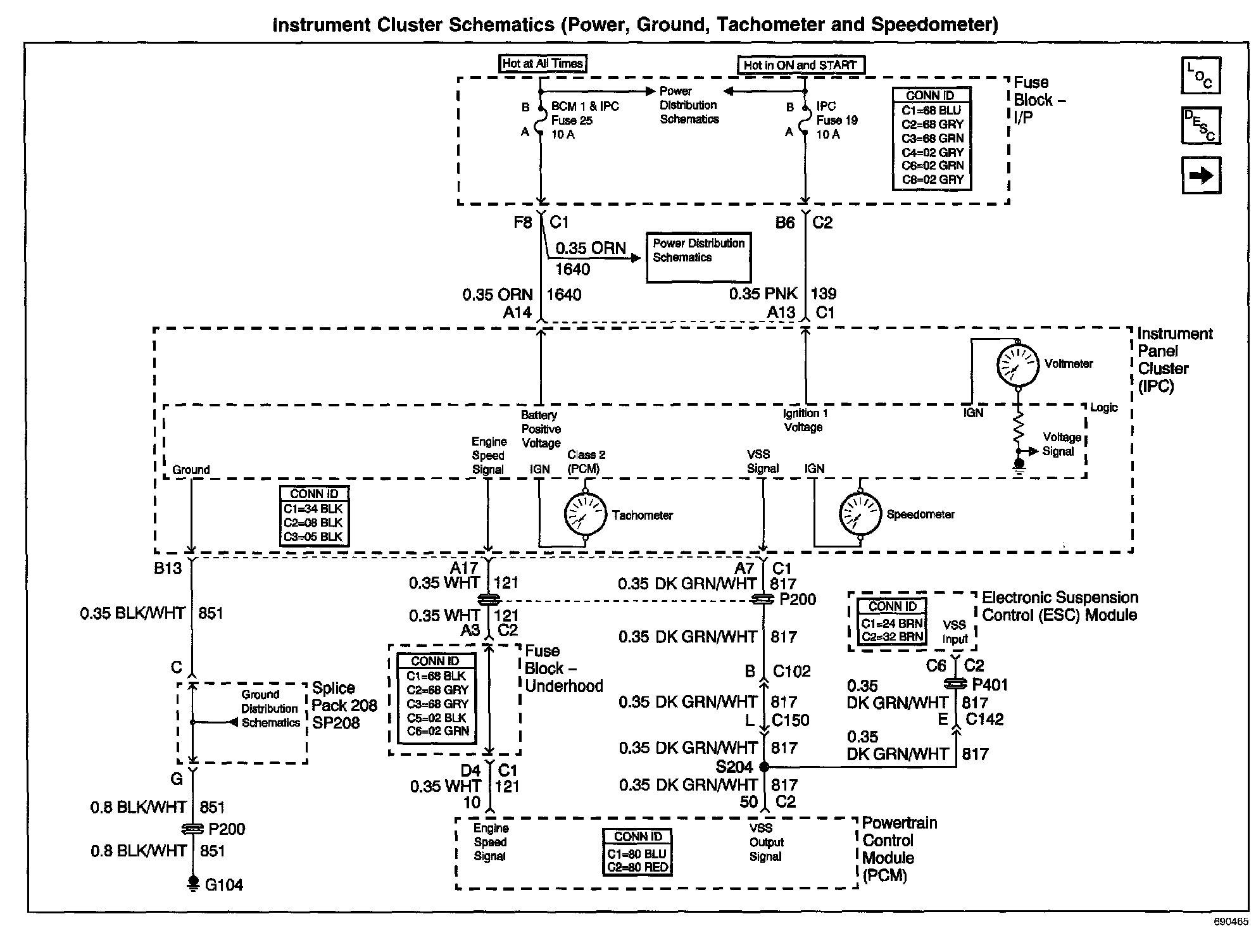

Instrument Cluster Schematics: Power, Ground, Tachometer And Speedometer:
