Right Door Mirror And Window Control

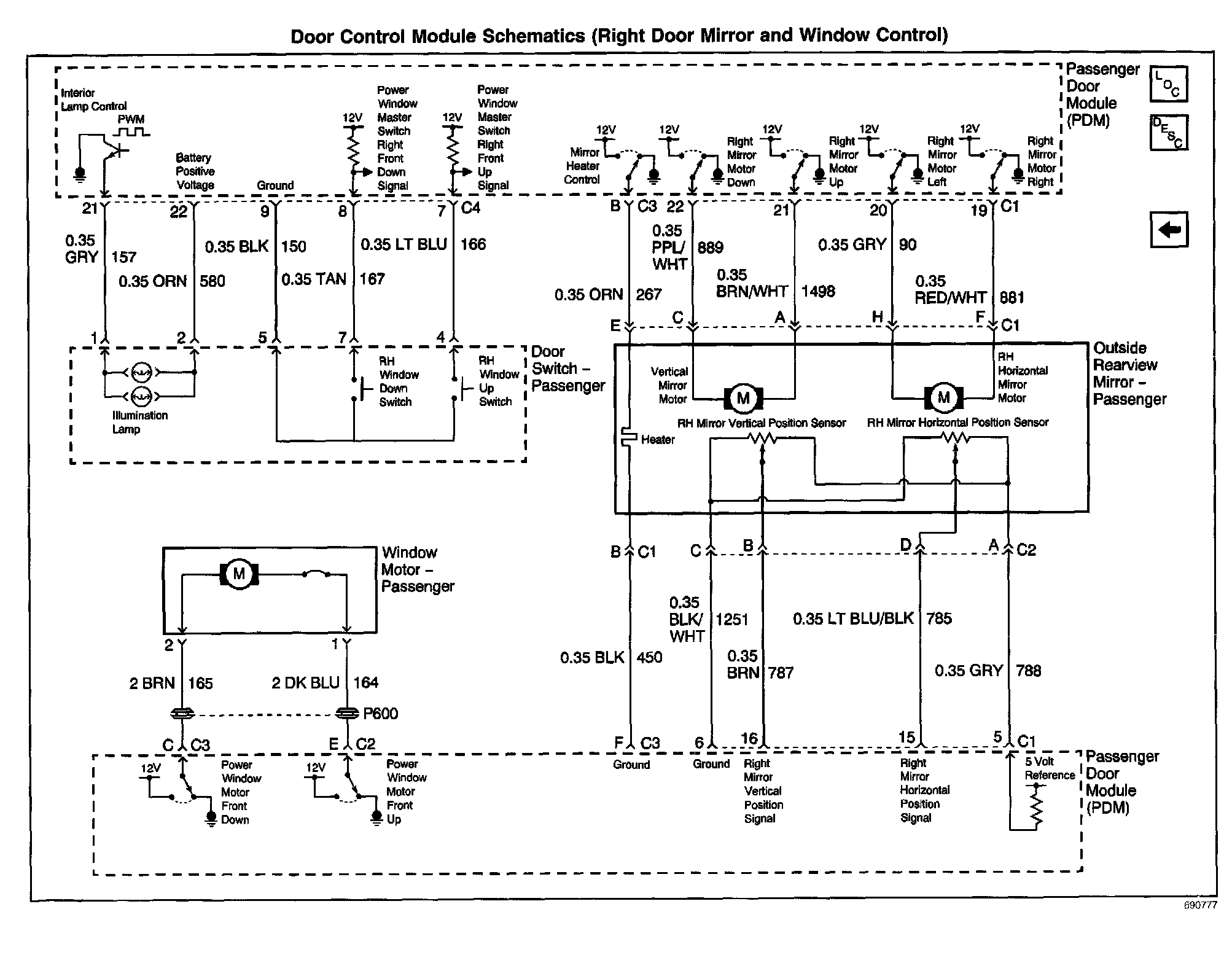

Door Control Module Schematics: Right Door Mirror And Window Control:
