Left Door Switch Signals
Left Door Switch Signals

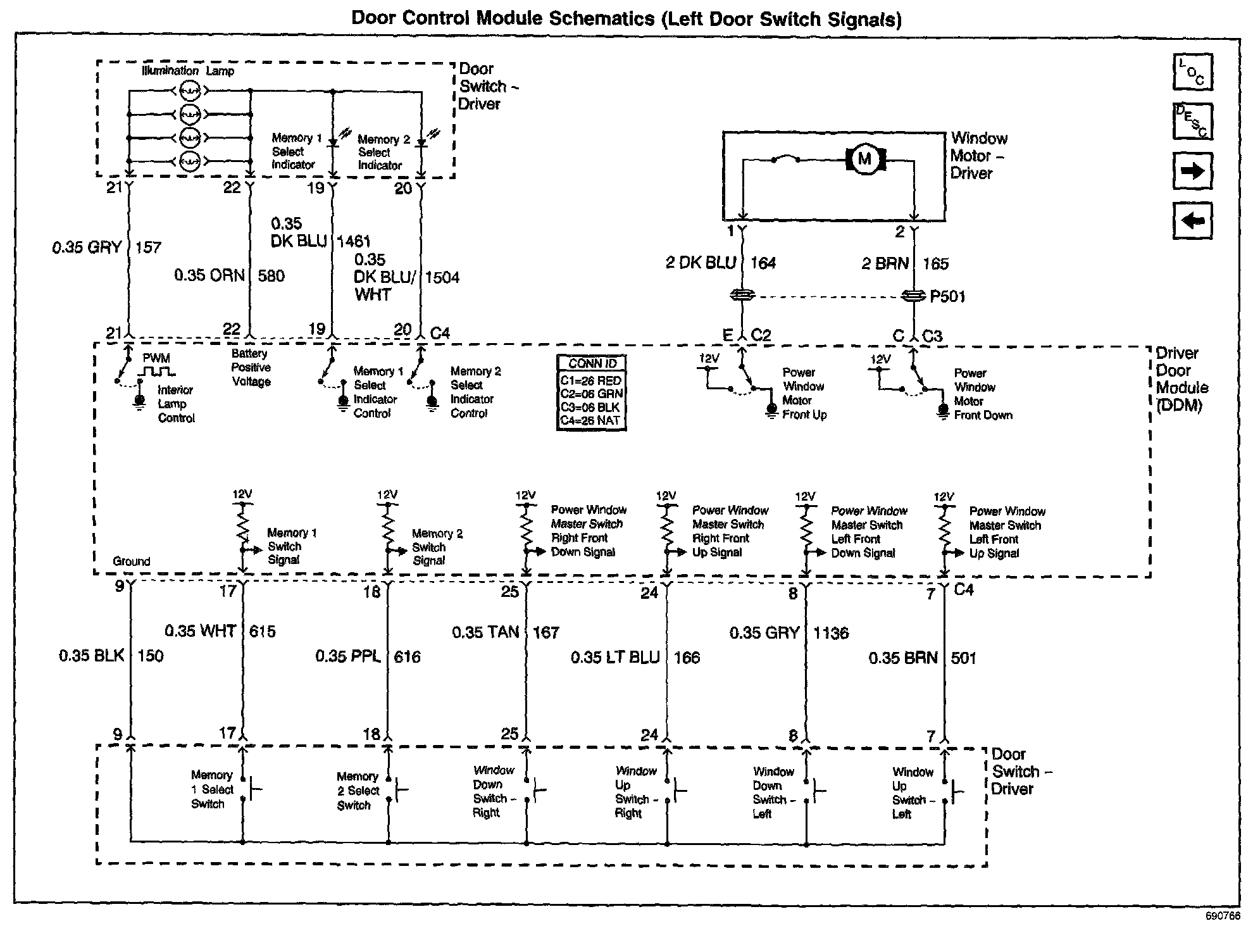

Door Control Module Schematics: Left Door Switch Signals:
