Controlled/Monitored Subsystems References

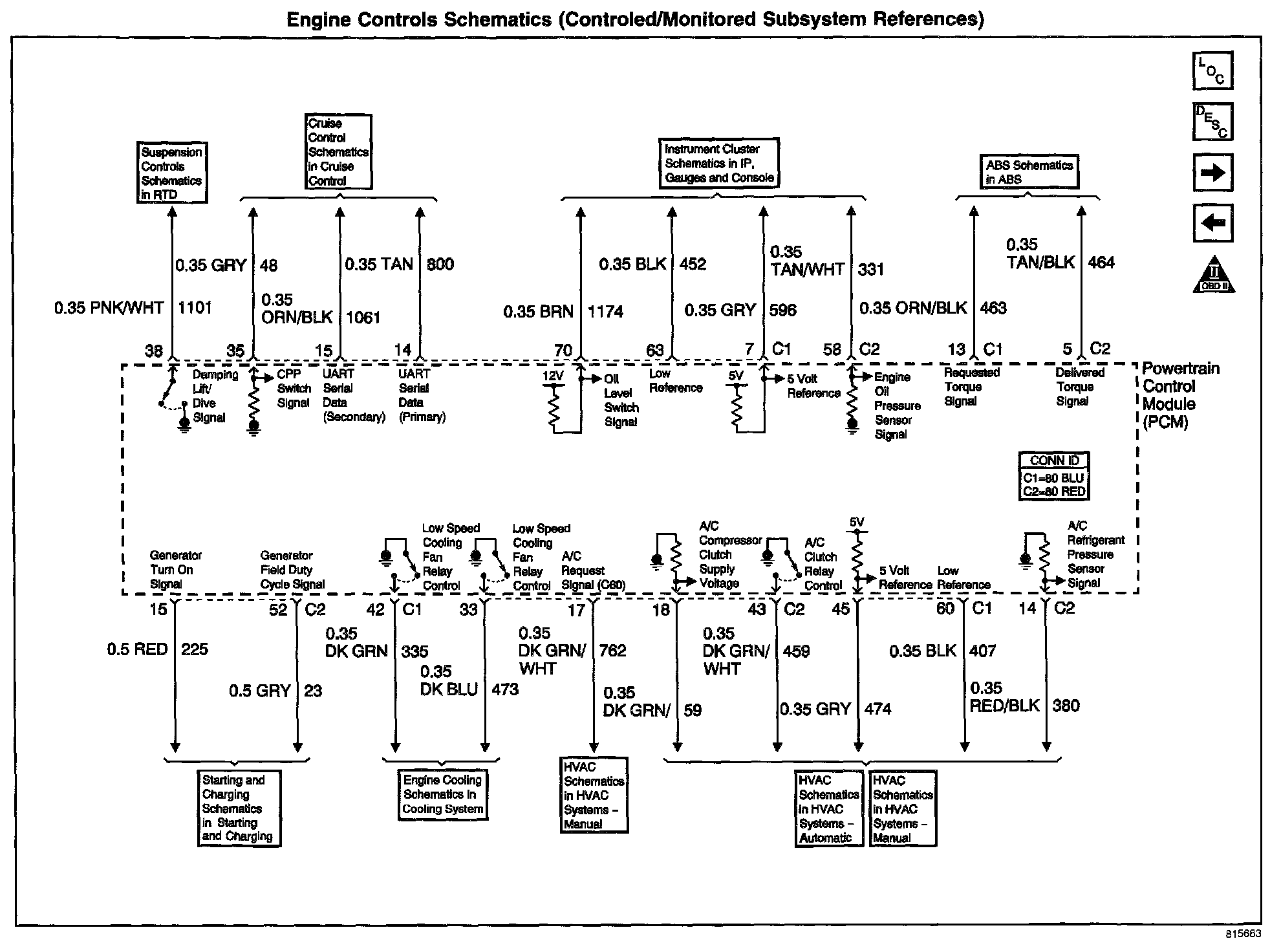

Engine Controls Schematics: Controled/Monitored Subsystem References:
