Compressor Clutch Relay: Service and Repair

COMPRESSOR RELAY REPLACEMENT

REMOVAL PROCEDURE

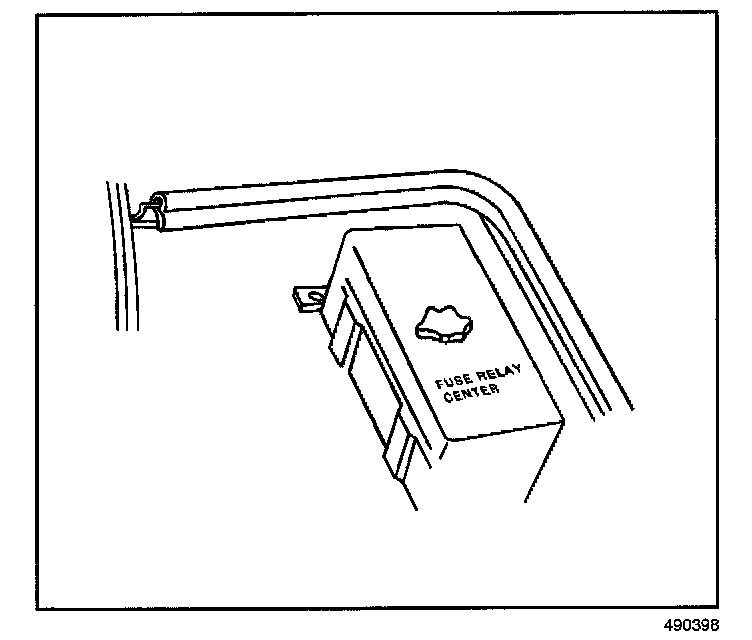

1. Remove the under hood electrical center cover.

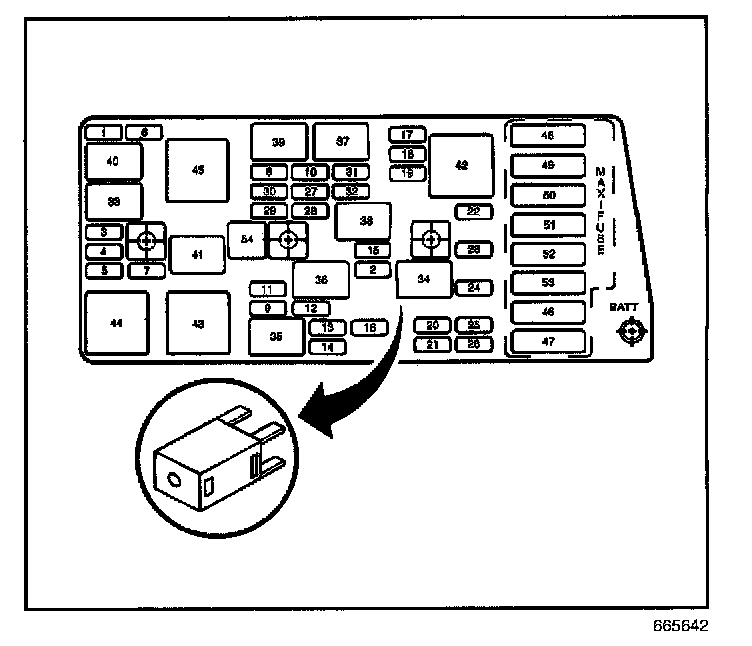

2. Remove the A/C compressor relay from the electrical center.

INSTALLATION PROCEDURE

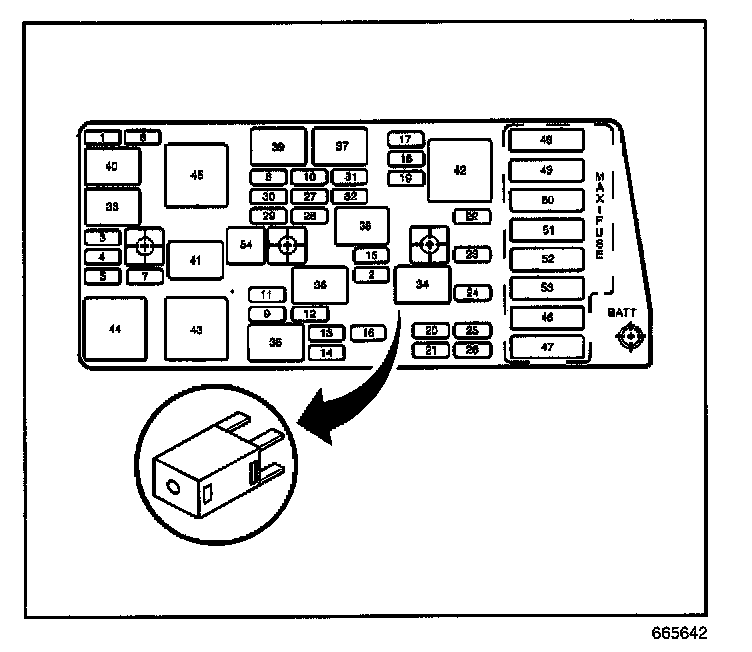

1. Install the A/C compressor relay to the electrical center.




2. Install the under hood electrical center cover.
