Instrument Panel (IP) - Dimmer Switch Replacement

REMOVAL PROCEDURE




1. Remove the instrument panel cluster (IPC) from the vehicle.

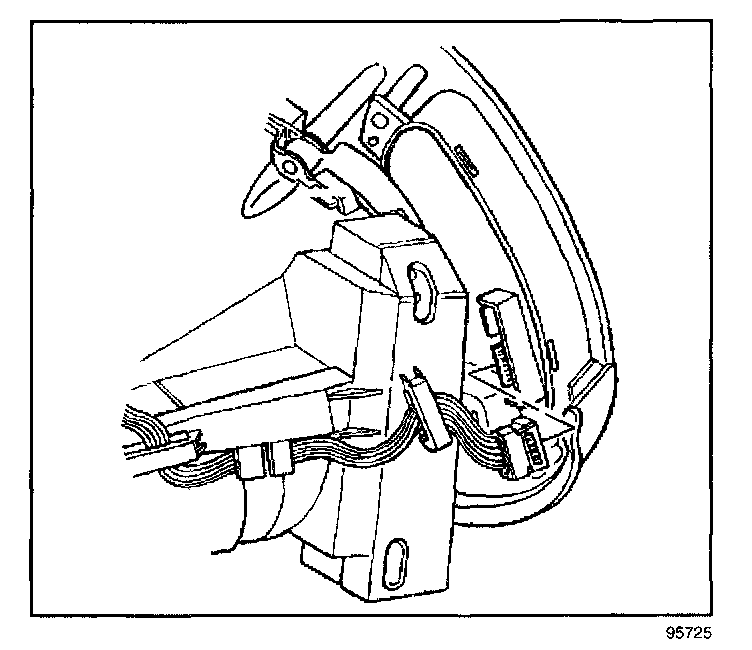

2. Disconnect the electrical connector from the instrument panel (IP) dimmer switch.

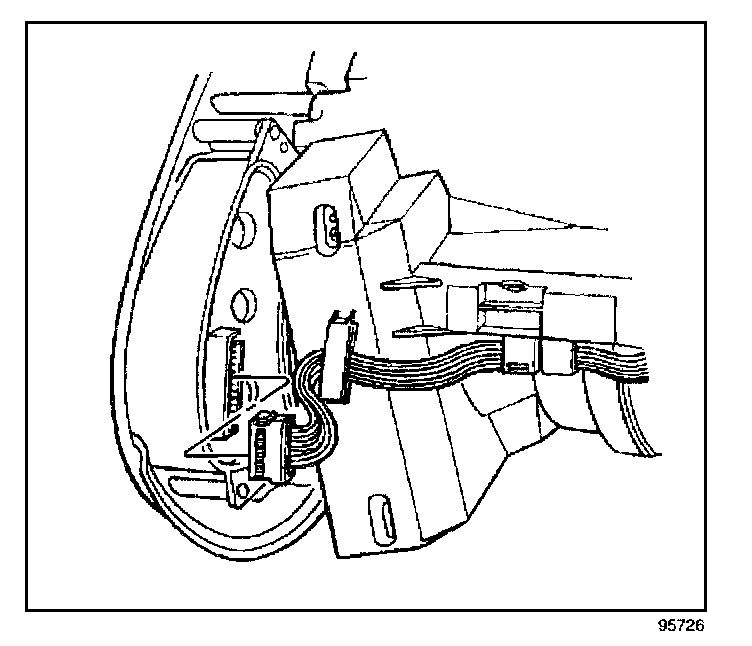

3. Disconnect the electrical connector from the driver information center (DIC) switch.

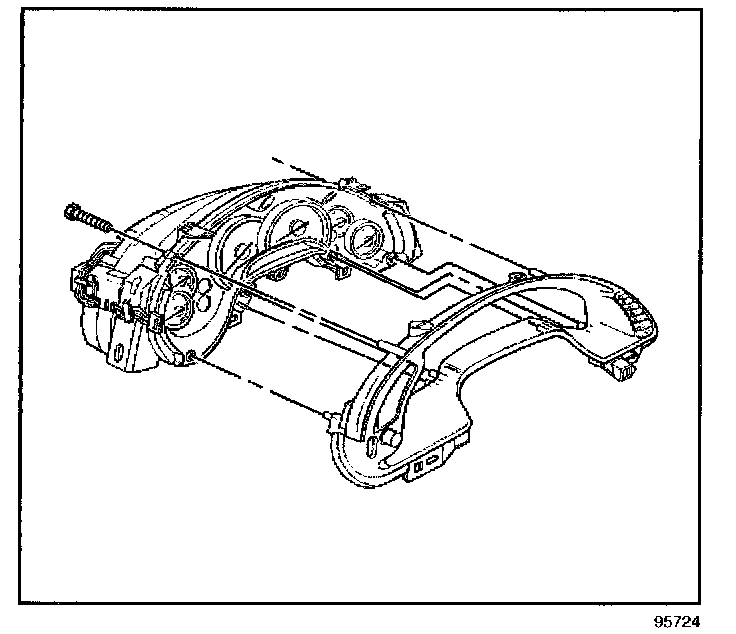

4. Remove the IPC bezel retaining screws.
5. Remove the bezel from the IPC.

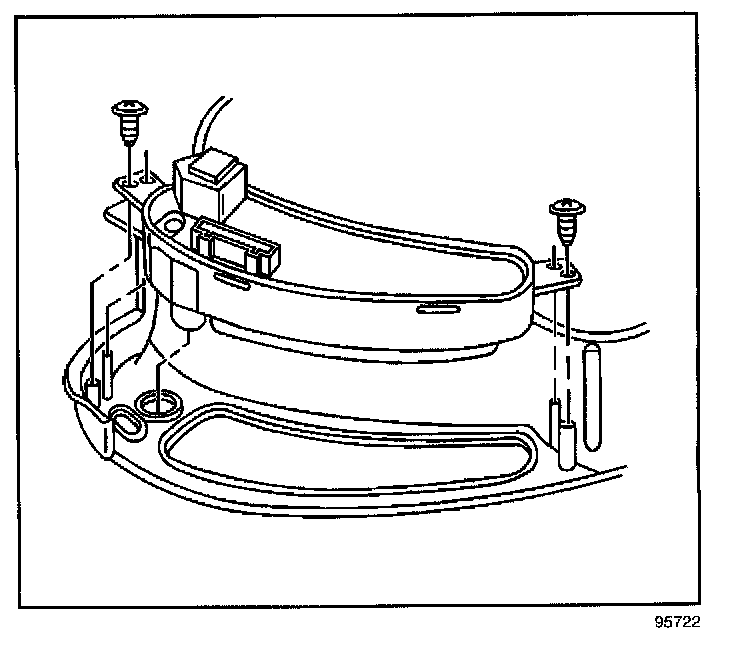

6. Remove the IP dimmer switch retaining screws.
7. Remove the IP dimmer switch.

INSTALLATION PROCEDURE




1. Install the dimmer switch to the IP cluster bezel.

NOTE: Refer to Fastener Notice in Service Precautions.

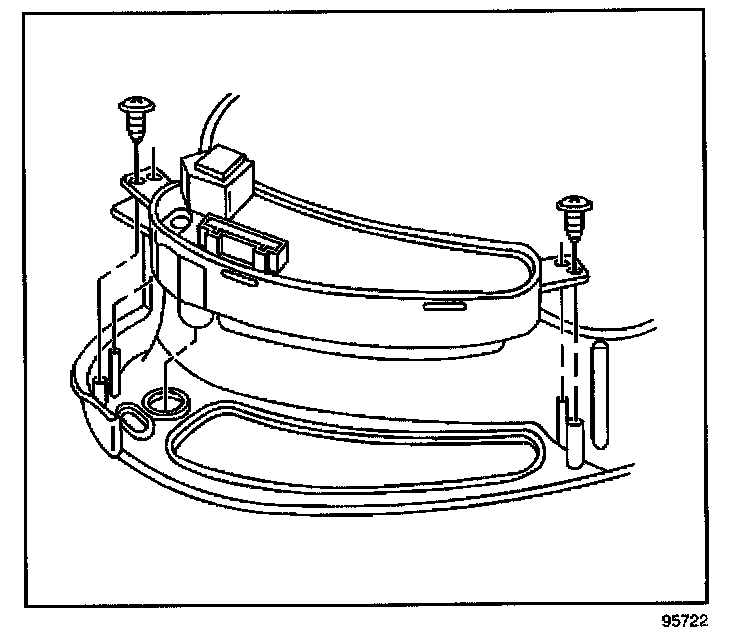

2. Install the retaining screws to the IP dimmer switch.

Tighten
Tighten the retaining screws to 1.5 N.m (13 lb in).




3. Install the bezel to the IPC. Align the bezel onto the guide pins.

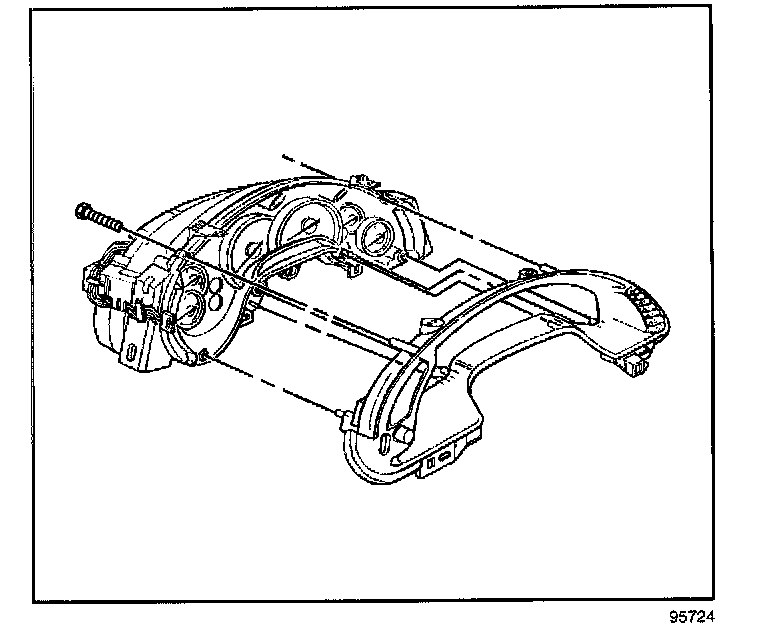

4. Install the IPC bezel retaining screws.

Tighten
Tighten the retaining screws to 1.5 N.m (13 lb in).

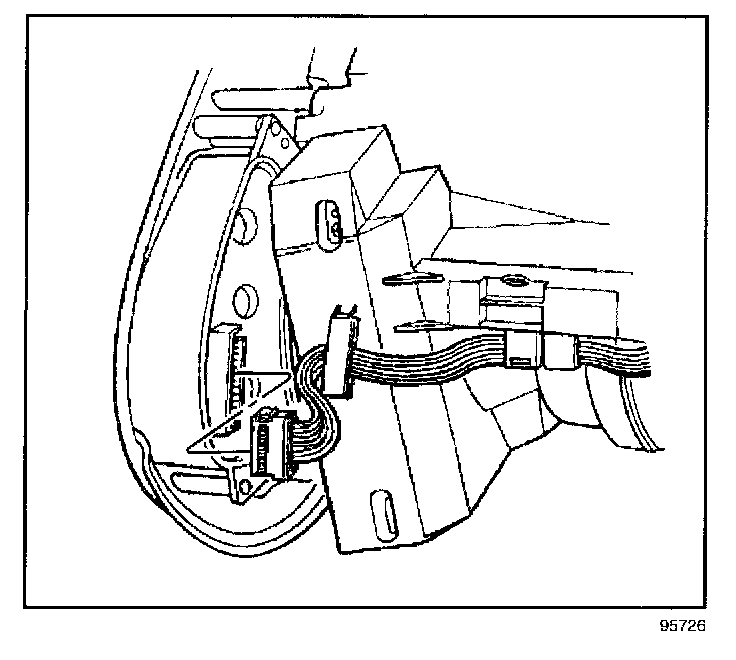

5. Connect the electrical connector to the IP dimmer switch.




6. Connect the DIC switch electrical connector.
7. Install the IPC to the vehicle.
