Driver Information Center, ENG Oil TEMP Gauge SEN & Dimmer SW
Driver Information Center, ENG Oil TEMP Gauge SEN & Dimmer SW

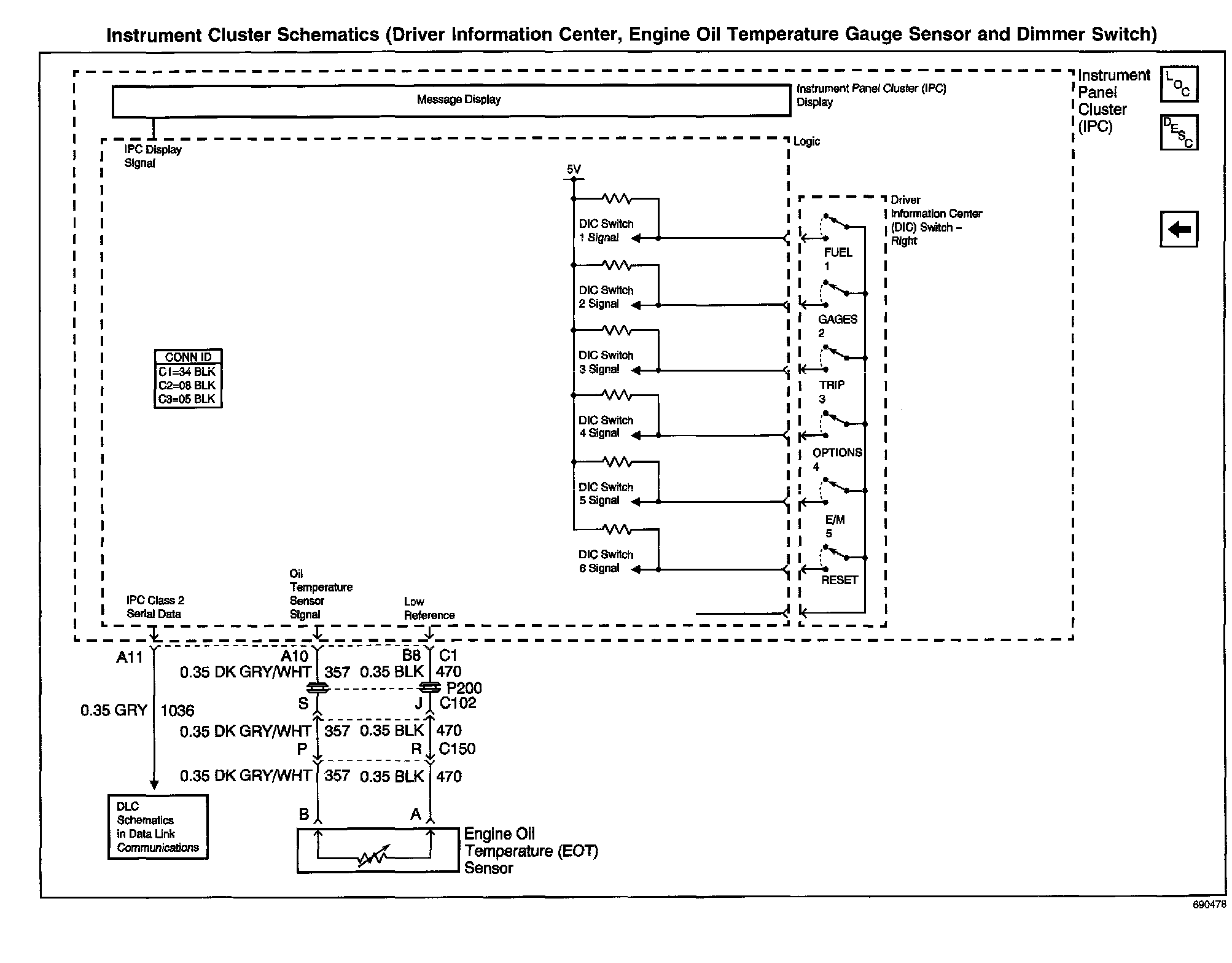

Instrument Cluster Schematics: Driver Information Center, Engine Oil Temperature Gauge Sensor And Dimmer Switch:
