Instrument Panel Cluster (IPC) - Replacement

REMOVAL PROCEDURE

NOTE: Refer to IPC Servicing Notice in Service Precautions.

CAUTION: Refer to Battery Disconnect Caution in Service Precautions.




1. Disconnect the negative battery cable.
2. Remove the I/P upper trim pad.

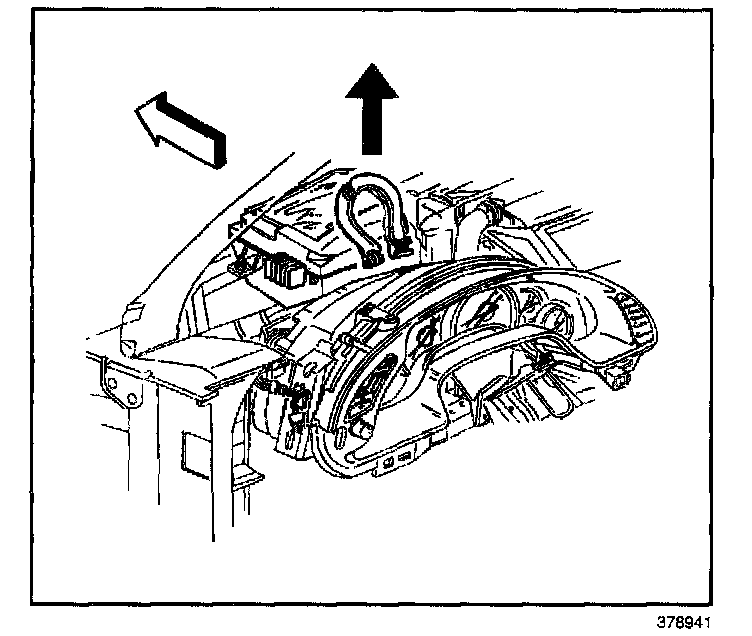

3. Carefully lift the head-up display (HUD) electrical harness from between the instrument panel cluster (IPC) and the HUD, if equipped.
4. Disconnect the HUD electrical connector from the IPC, if equipped.

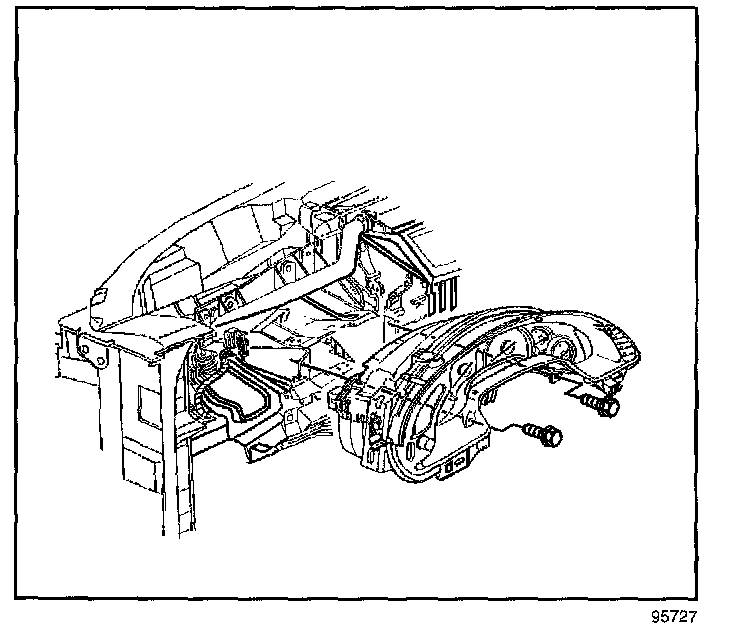

5. Remove the retaining screws that secure the IPC to the steering column bracket.
6. Raise the rear of the IPC slightly to release the locator tab, then lift the IPC to access the electrical connector.

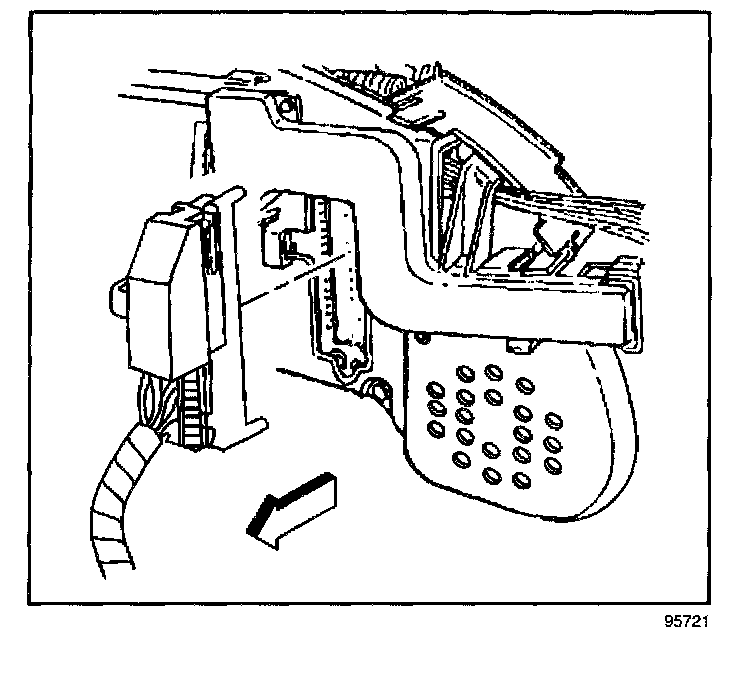

7. Disconnect the IPC electrical connector.
8. Remove the IPC.

INSTALLATION PROCEDURE




1. Connect the IPC electrical connector.




2. Position the IPC to the steering column bracket.

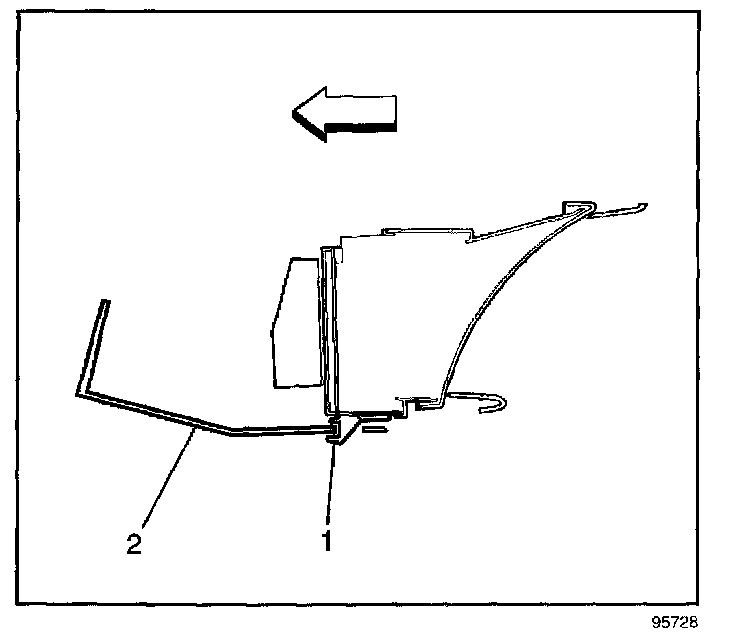

3. Verify that the IPC retaining tab (1) is positioned correctly to the steering column bracket (2).

NOTE: Refer to Fastener Notice in Service Precautions.




4. Install the retaining screws that secure the IPC to the steering column bracket.

Tighten
Tighten the retaining screws to 3 N.m (27 lb in).




5. Connect the HUD electrical connector to the IPC, if equipped.

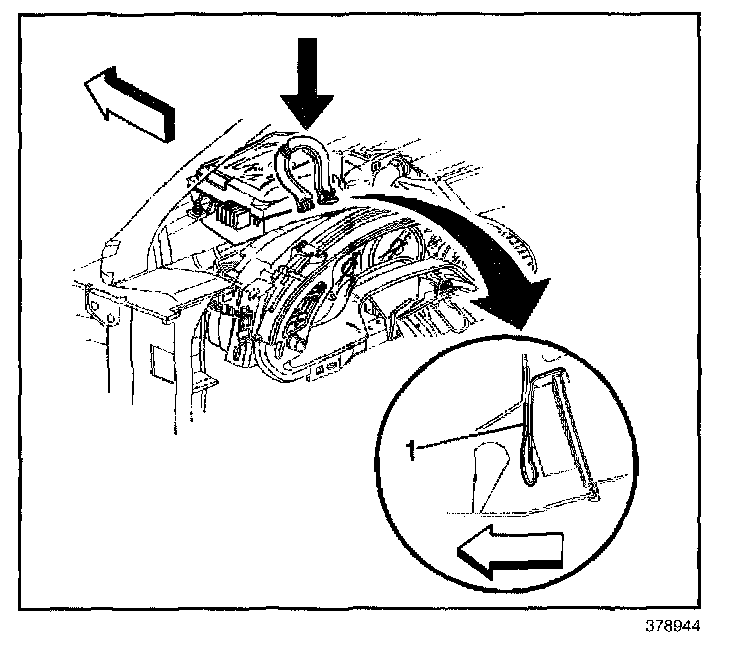

6. Carefully tuck the HUD electrical harness (1) down between the IPC and the HUD as shown.
7. Install the I/P upper trim pad.
8. Connect the negative battery cable.

Tighten
Tighten the bolt to 15 N.m (11 lb ft).

9. Program the transmitters. Refer to Transmitter Programming in Keyless Entry.
10. Synchronize the transmitters. Refer to Transmitter Synchronization in keyless Entry.
