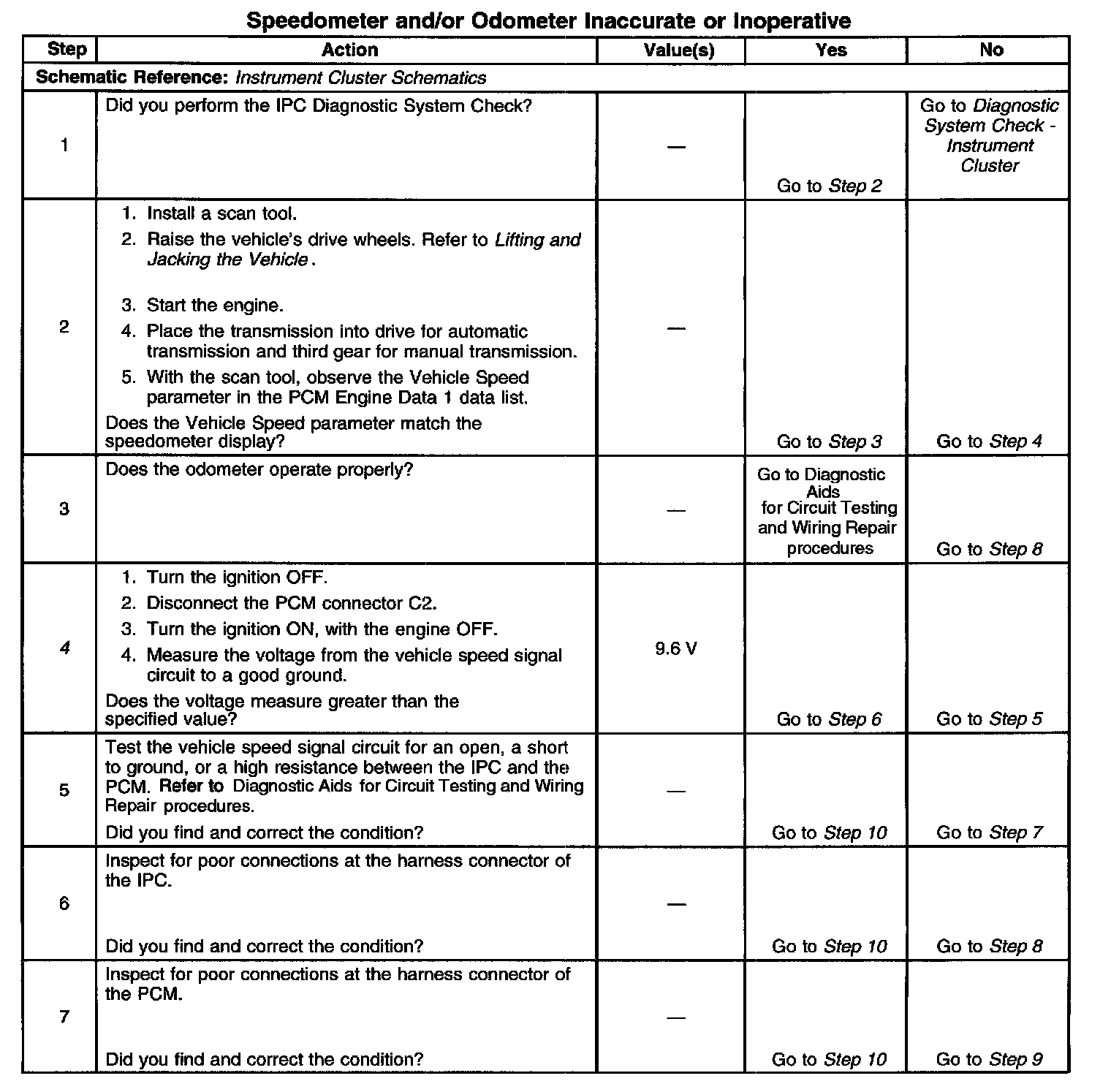

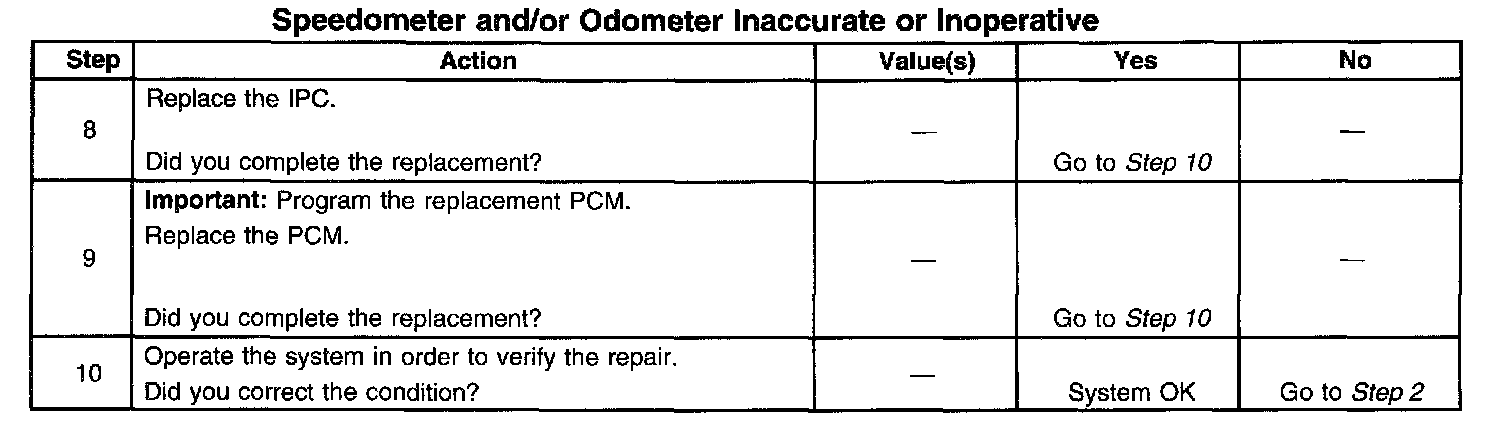

Speedometer and/or Odometer Inaccurate or Inoperative

TEST DESCRIPTION

Steps 1-7:

Steps 8-10:

The number(s) below refer to the step number(s) on the diagnostic table.
4. This step tests for the proper vehicle speed signal from the PCM.
