Transmission Shift Position Indicator Lamp: Service and Repair
TRANS FLOOR SHIFT CONTROL INDICATOR LAMP REPLACEMENTREMOVAL PROCEDURE

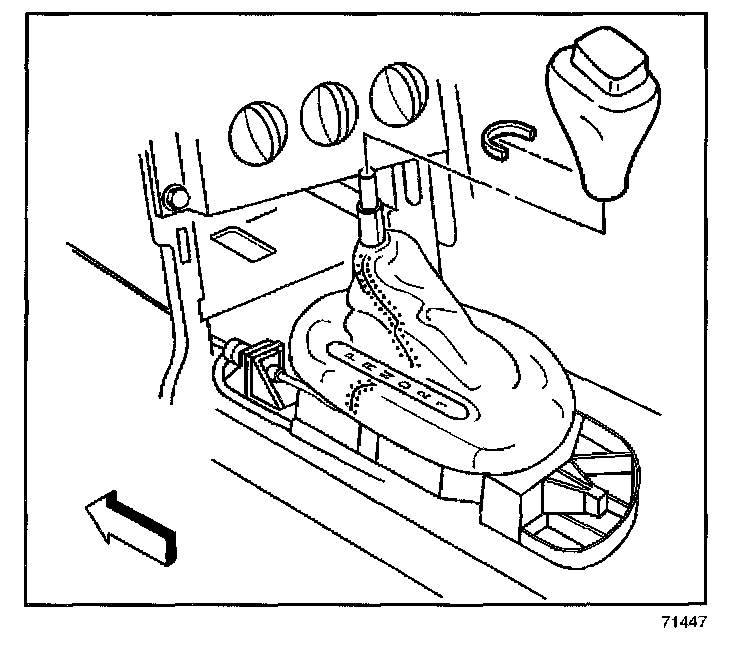

1. Remove the floor shift control.
2. Remove the floor shift control boot assembly.

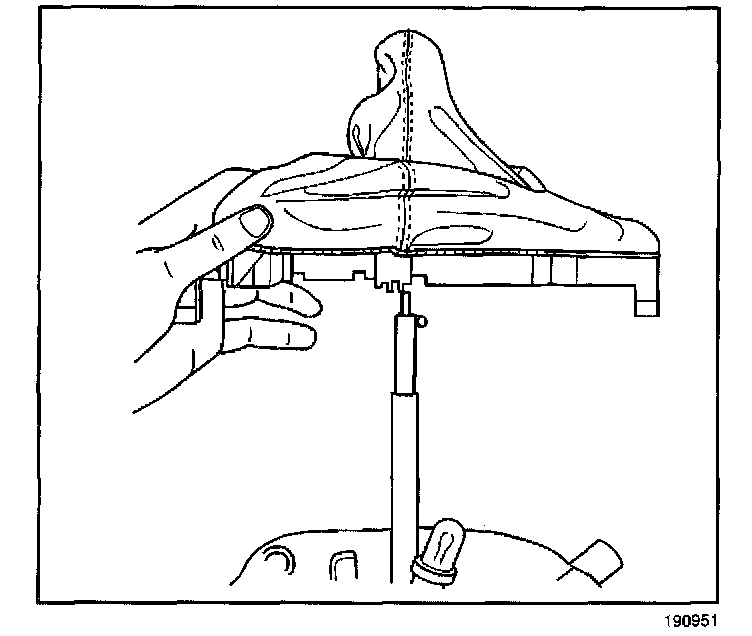

3. Remove the lamp socket.
4. Remove the bulb from the lamp socket.
INSTALLATION PROCEDURE
1. Install the bulb to the socket.

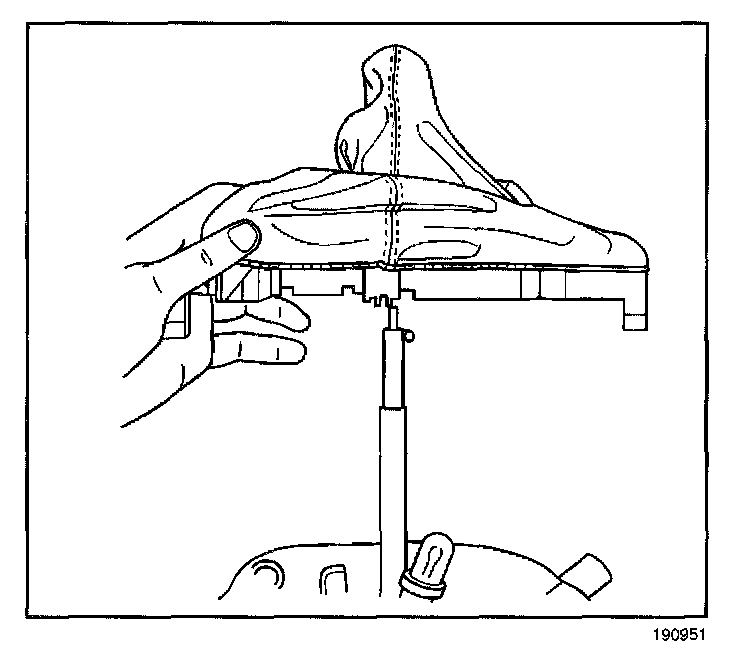

2. Install the socket to the shift boot assembly.
3. Install the shift boot to the floor shift control.

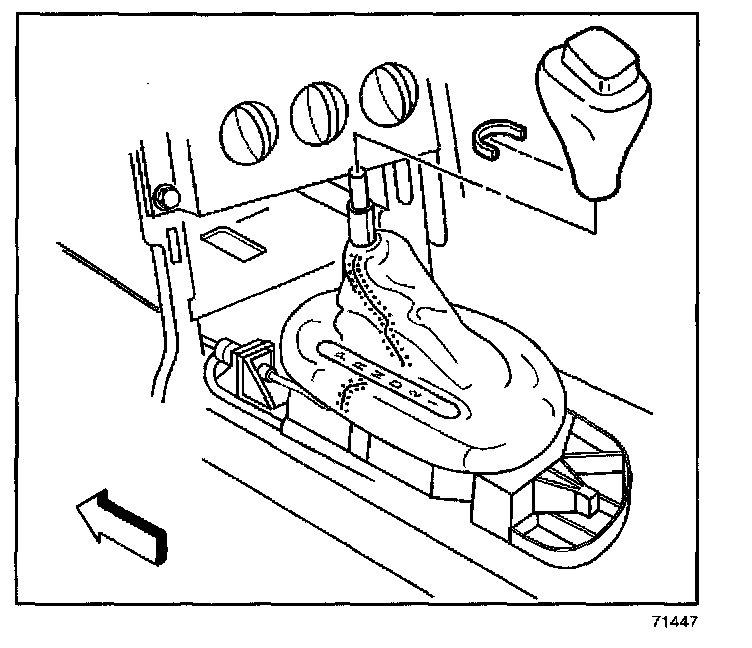

4. Install the floor shift control to the console.
