Backup Lights

Exterior Lights Schematics: Backup Lamp Control:



Exterior Lights Schematics: Backup Lamps - Domestic/Japan:

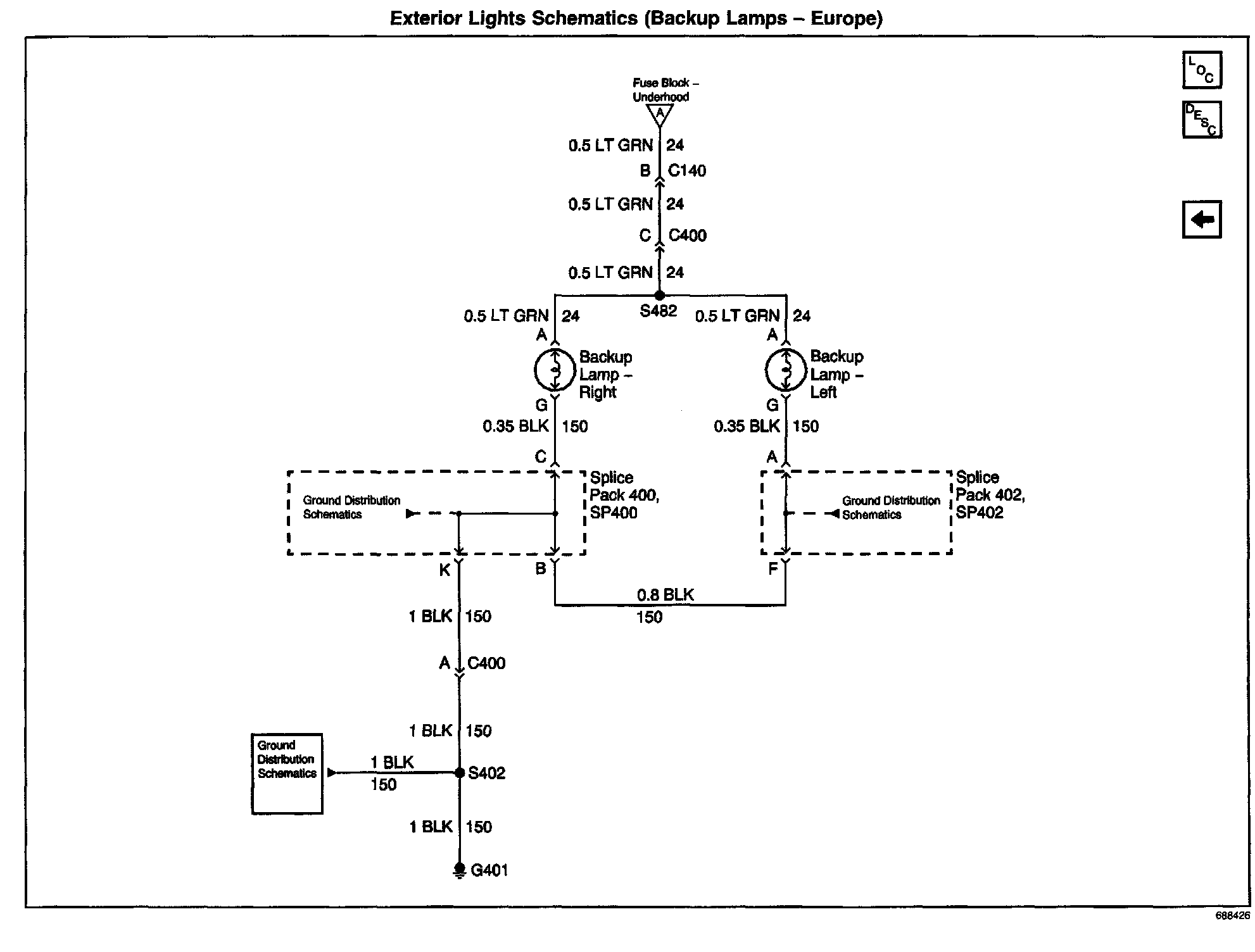

Exterior Lights Schematics: Backup Lamps - Europe:
