Horn: Service and Repair

REMOVAL PROCEDURE




1. Remove the right front fascia lower closeout panel.

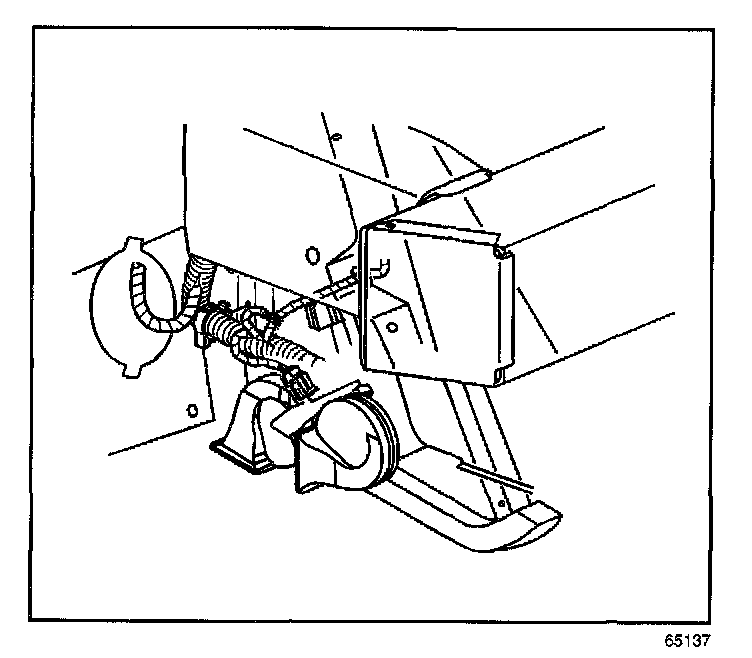

2. Disconnect the horn assembly electrical connector.

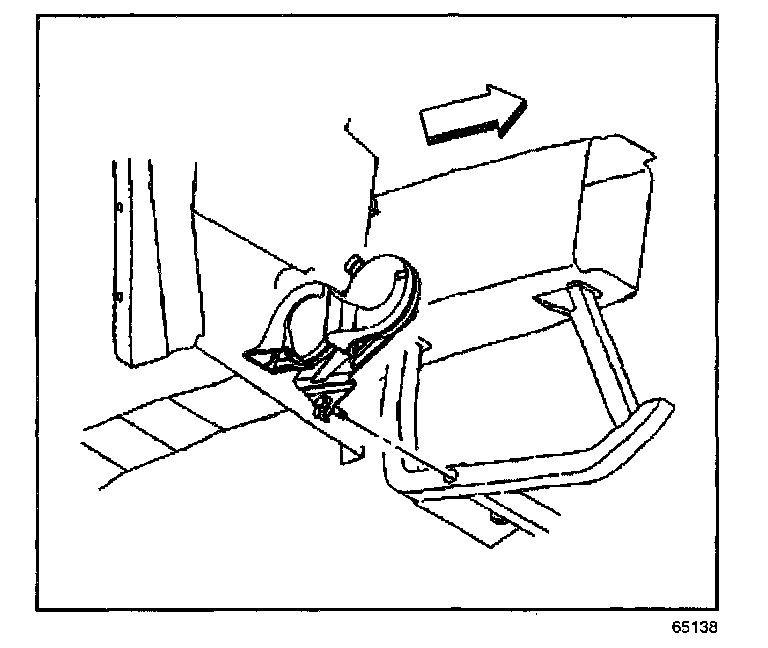

3. Remove the horn assembly bolt.
4. Remove the horn assembly from the skid bar.

INSTALLATION PROCEDURE




1. Position the horn assembly to the skid bar.
Install the aligning tab on the horn assembly into the hole on the skid bar.

NOTE: Refer to Fastener Notice in Service Precautions.

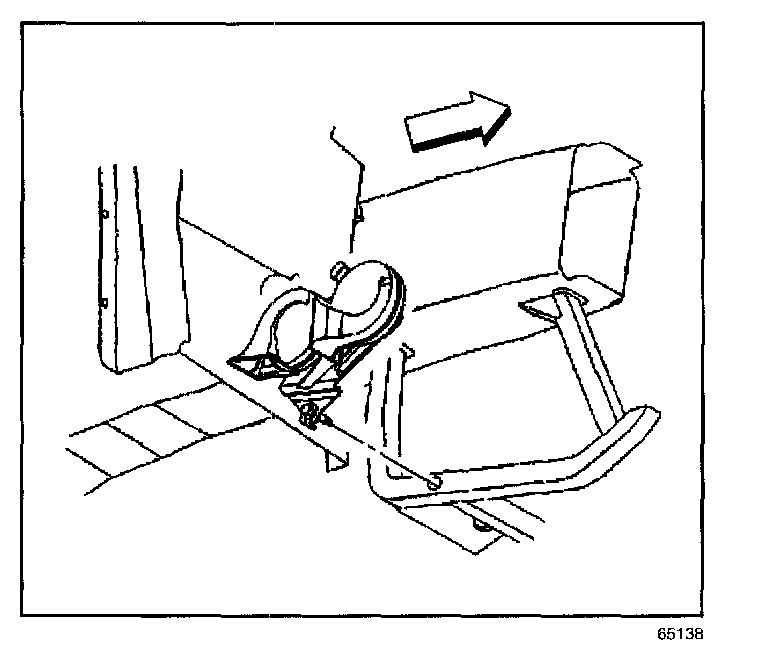

2. Install the horn assembly bolt.

Tighten
Tighten the bolt to 25 N.m (18 lb ft).

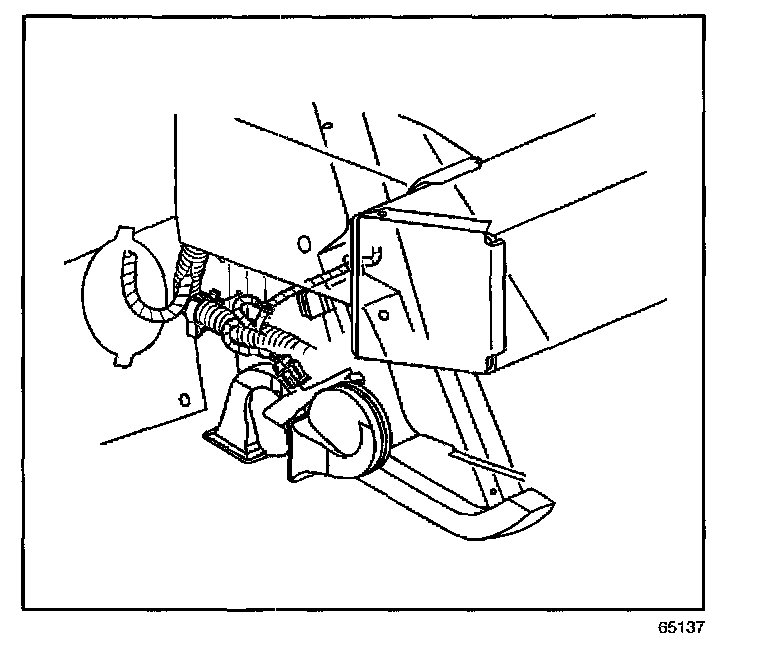

3. Connect the horn assembly electrical connector.
4. Install the right front fascia lower closeout panel.
