Park/Turn Signal/Side Marker Lamp Bulb Replacement

REMOVAL PROCEDURE




1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle.
2. Remove the front fascia lower closeout panel.

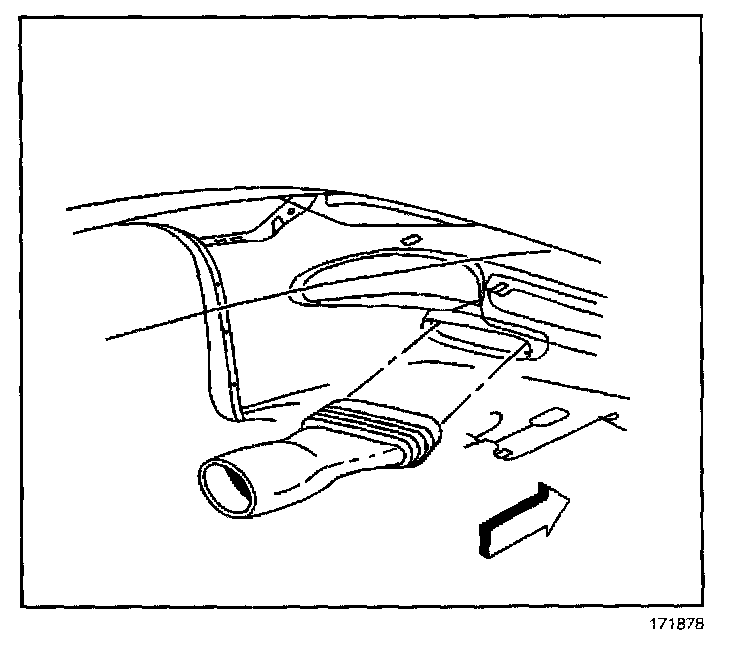

3. Release the brake caliper cooling duct from the front fascia, and position the duct aside.




4. Remove the appropriate socket from the lamp assembly.
5. Remove the bulb from the socket.

INSTALLATION PROCEDURE




1. Install the bulb to the socket.
2. Install the socket to the lamp assembly.

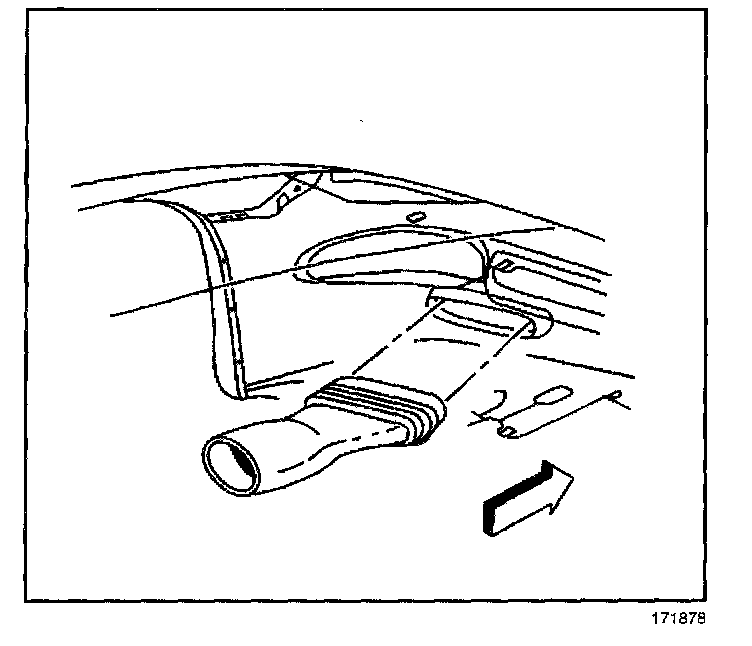

3. Position the brake caliper cooling duct to the front fascia and press the duct toward the fascia to secure.
4. Install the front fascia lower closeout panel.
5. Lower the vehicle.
