Position Lamp Replacement - Front (Europe Japan)

REMOVAL PROCEDURE




1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle.
2. Remove the front fascia lower closeout panel.

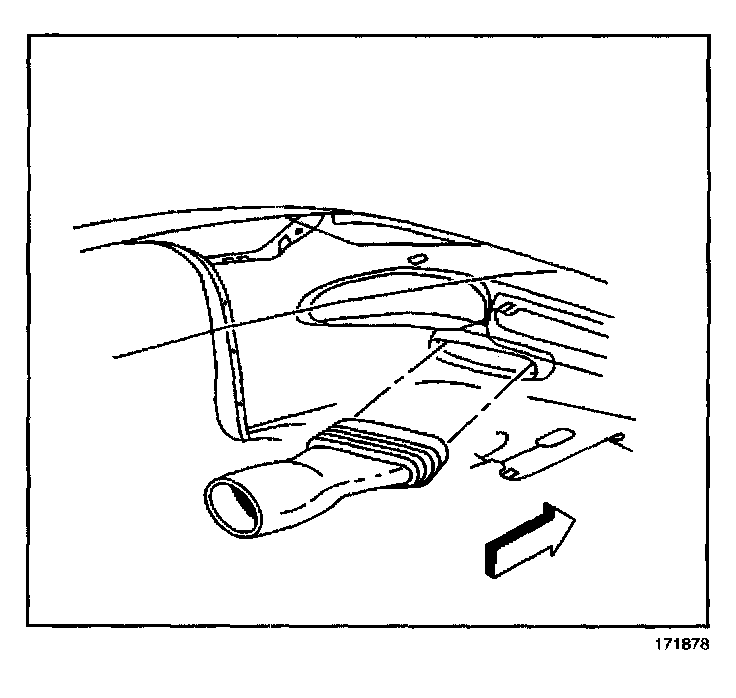

3. Release the brake caliper cooling duct from the front fascia, and position aside.




4. Open the lamp access door on top of the front fascia closeout.
5. Remove the front position lamp socket from the lamp assembly.

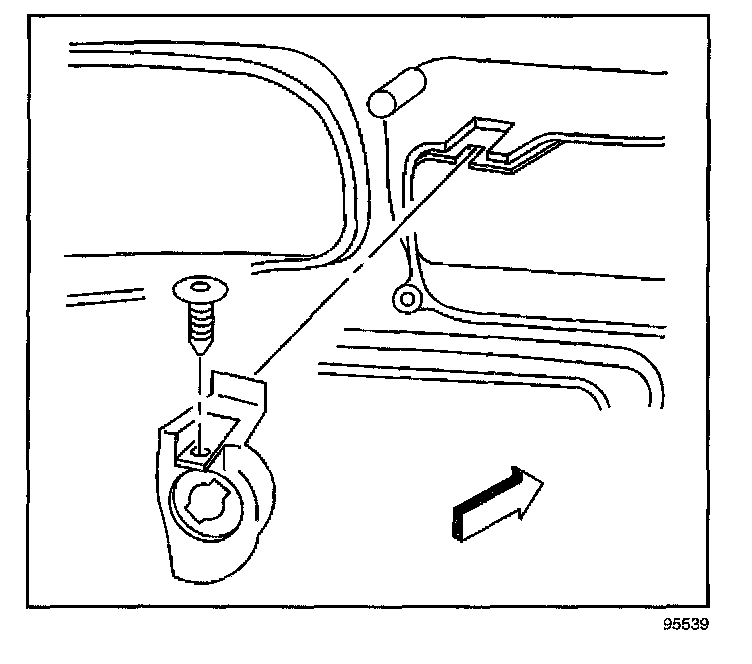

6. Remove the front position lamp retaining screw.
7. Remove the front position lamp assembly.

INSTALLATION PROCEDURE




1. Position the front position lamp to the front fascia.

NOTE: Refer to Fastener Notice in Service Precautions.

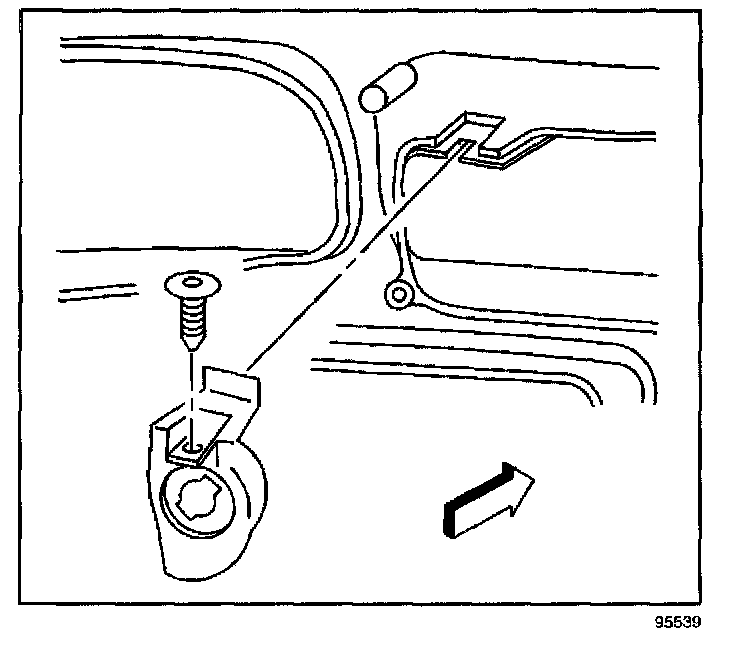

2. Install the front position lamp retaining screw.

Tighten
Tighten the front position lamp retaining screw to 2 N.m (18 lb in).




3. Install the socket to the lamp.
4. Close the lamp access door on top of the front fascia closeout.




5. Position the brake caliper cooling duct to the front fascia and press to secure.
6. Install the front fascia lower closeout panel.
7. Lower the vehicle.
