Underhood Lamp: Service and Repair

REMOVAL PROCEDURE




1. Open the hood.

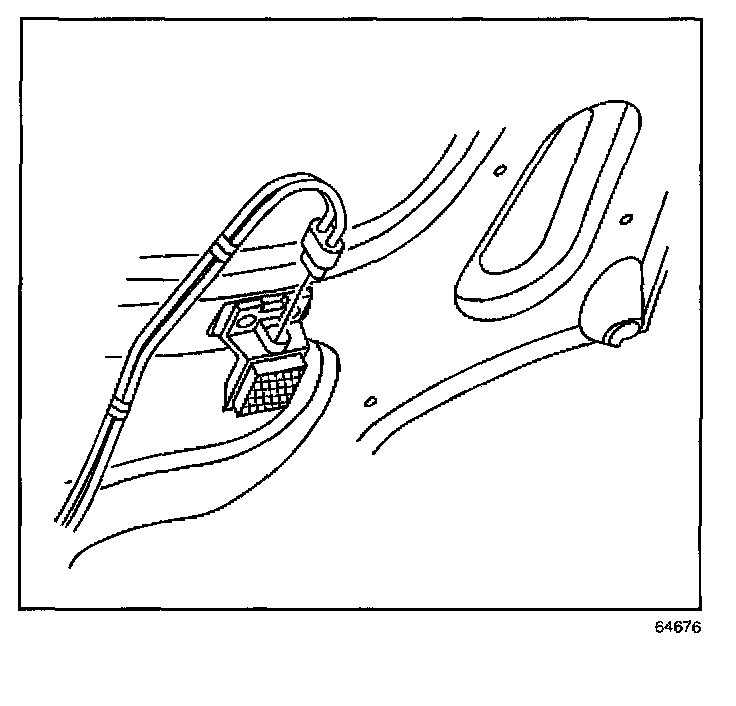

2. Disconnect the electrical connector from the underhood lamp assembly.

CAUTION: Refer to Safety Glasses Caution in Service Precautions.




3. Drill out the 2 rivets retaining the underhood lamp assembly.
4. Remove the underhood lamp from the vehicle.

INSTALLATION PROCEDURE




1. Position the underhood lamp to the hood.
2. Rivet the lamp to the hood.
3. Connect the electrical connector to the lamp.
4. Close the hood.
