Fuel Sender Assembly

Fuel Sender Assembly:

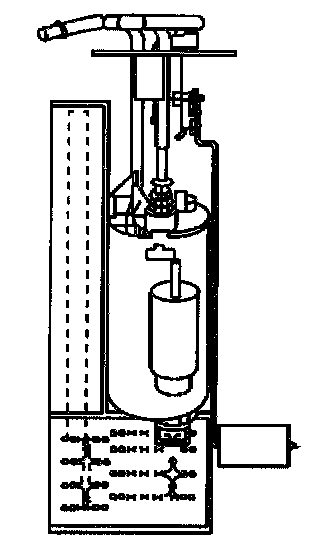

A fuel sender assembly is located inside each fuel tank. The fuel sender assembly attaches to the lower side of each fuel tank. The left fuel sender assembly consists of the following major components:
^ The fuel sender
^ The fuel pump and reservoir assembly
^ The fuel pump strainer




The right fuel sender assembly consists of the following major components:
^ The fuel sender
^ The siphon jet pump
^ 2 fuel strainers
