Battery Tray Replacement

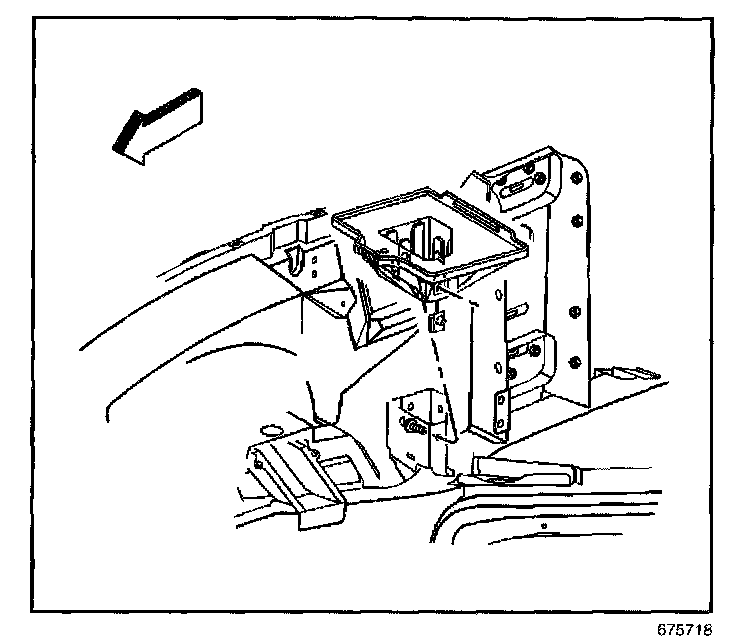

REMOVAL PROCEDURE




1. Remove the battery.
2. Remove the battery tray bolts.
3. Remove the battery tray.

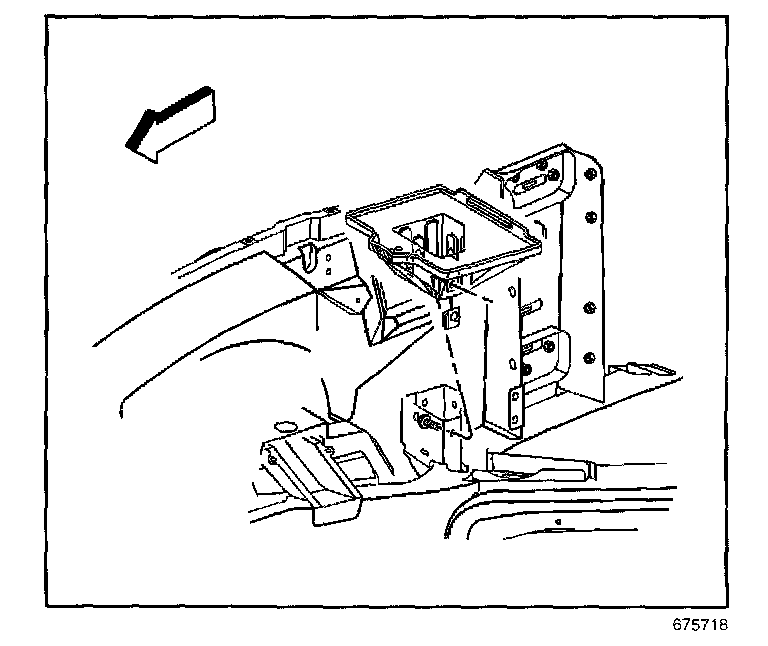

INSTALLATION PROCEDURE




1. Install the battery tray.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the battery tray bolts.

Tighten
Tighten the battery tray bolts to 12 N.m (106 lb in).

3. Install the battery.
