20. Countershaft Assemble (Main Shaft)

^ Tools Required
^ J 39438 Bearing Installer
^ J 5590 Press Tube

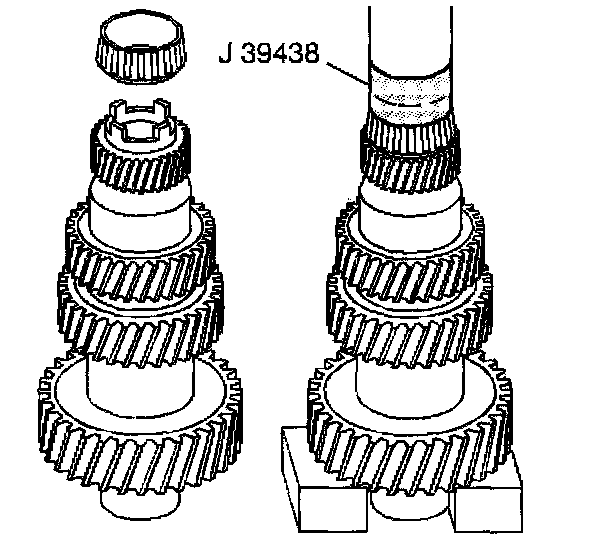

1. Install a new large tapered bearing, using the J 39438, U-blocks and a hydraulic press.

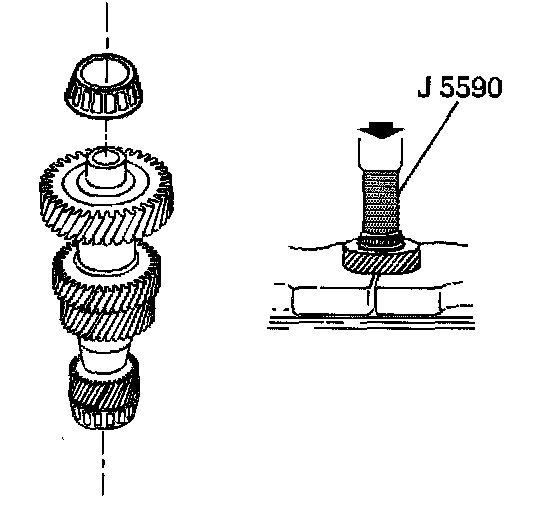

2. Install a new small tapered bearing, using the J 5590 and a hydraulic press.
