Wiper Gear Box: Service and Repair
WIPER TRANSMISSION REPLACEMENTTOOLS REQUIRED
^ J 39232 Wiper Linkage Separator
^ J 39529 Wiper Linkage Installer
REMOVAL PROCEDURE
1. Remove the wiper arms.
2. Remove the air inlet grille panel.
3. Remove the wiper motor module assembly.
4. Using the J 39232, disconnect the wiper transmission from the wiper motor crank arm.
5. Remove the wiper transmission bolts.
6. Remove the wiper transmission from the wiper motor module assembly.
INSTALLATION PROCEDURE

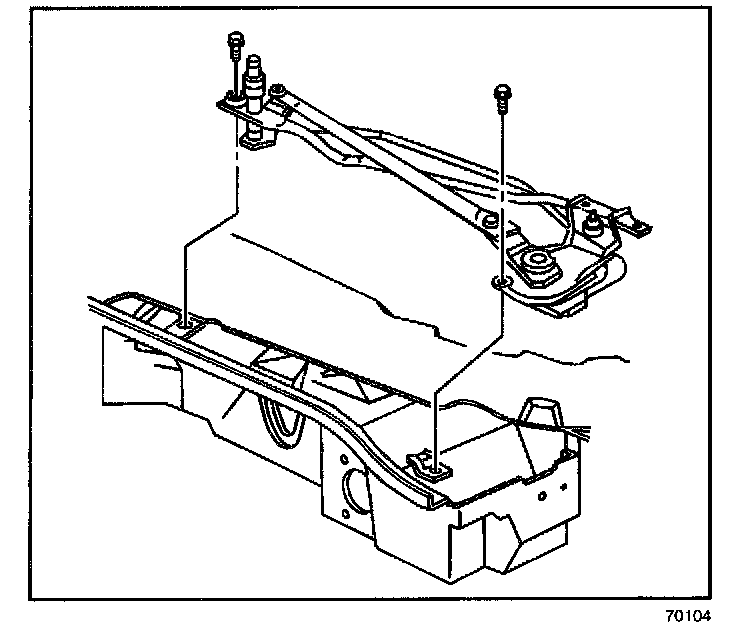

1. Position the wiper transmission to the wiper motor module assembly.
NOTE: Refer to Fastener Notice in Service Precautions.
2. Install the wiper transmission bolts.
Tighten
Tighten the bolts to 10 N.m (89 lb in).

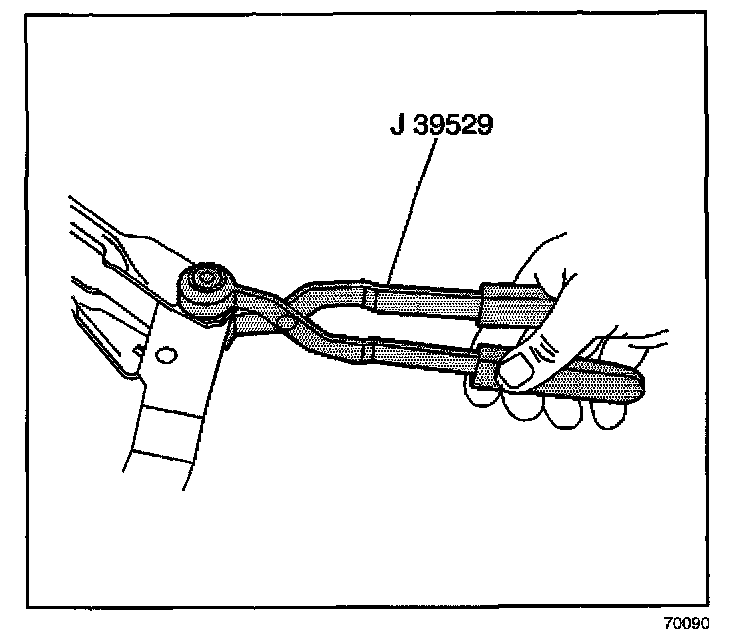

3. Using the J 39529, connect the wiper transmission to the wiper motor crank arm.
4. Install the wiper motor module assembly.
5. Install the air inlet grille panel.
6. Install the wiper arms.
