Home >> Chevrolet >> 2002 >> Corvette V8-5.7L VIN S >> Repair and Diagnosis >> Wiper and Washer Systems >> Wiper Motor >> Diagrams

Wiper Motor: Diagrams

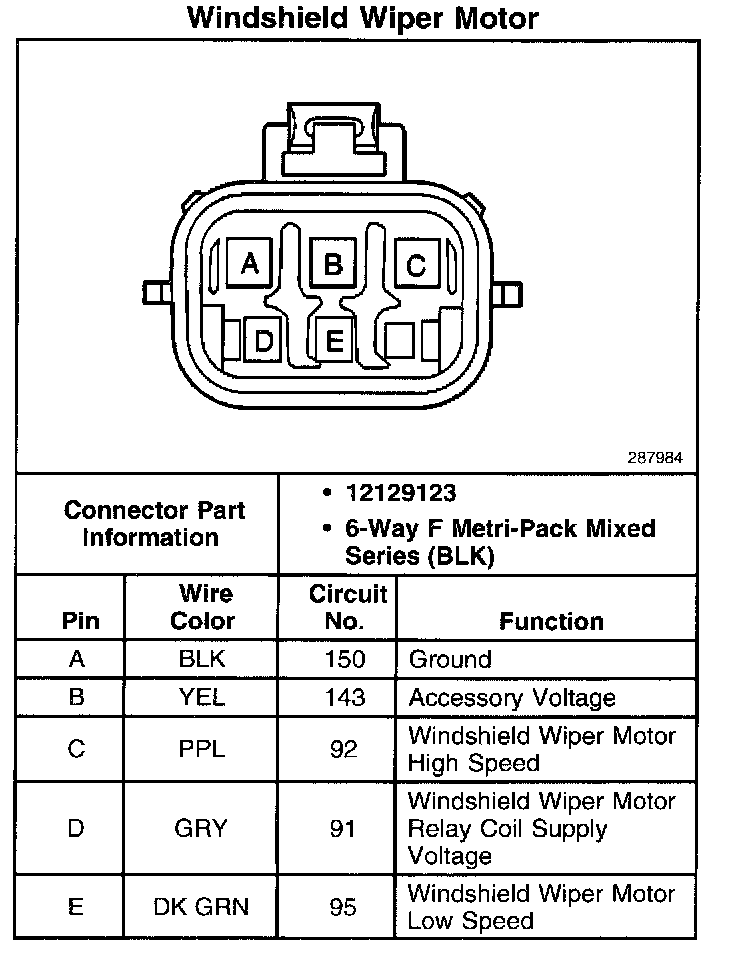

Windshield Wiper Motor:
