Home
>>
Chevrolet
>>
2002
>>
Impala V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C300 - C392
>>
C308
C308

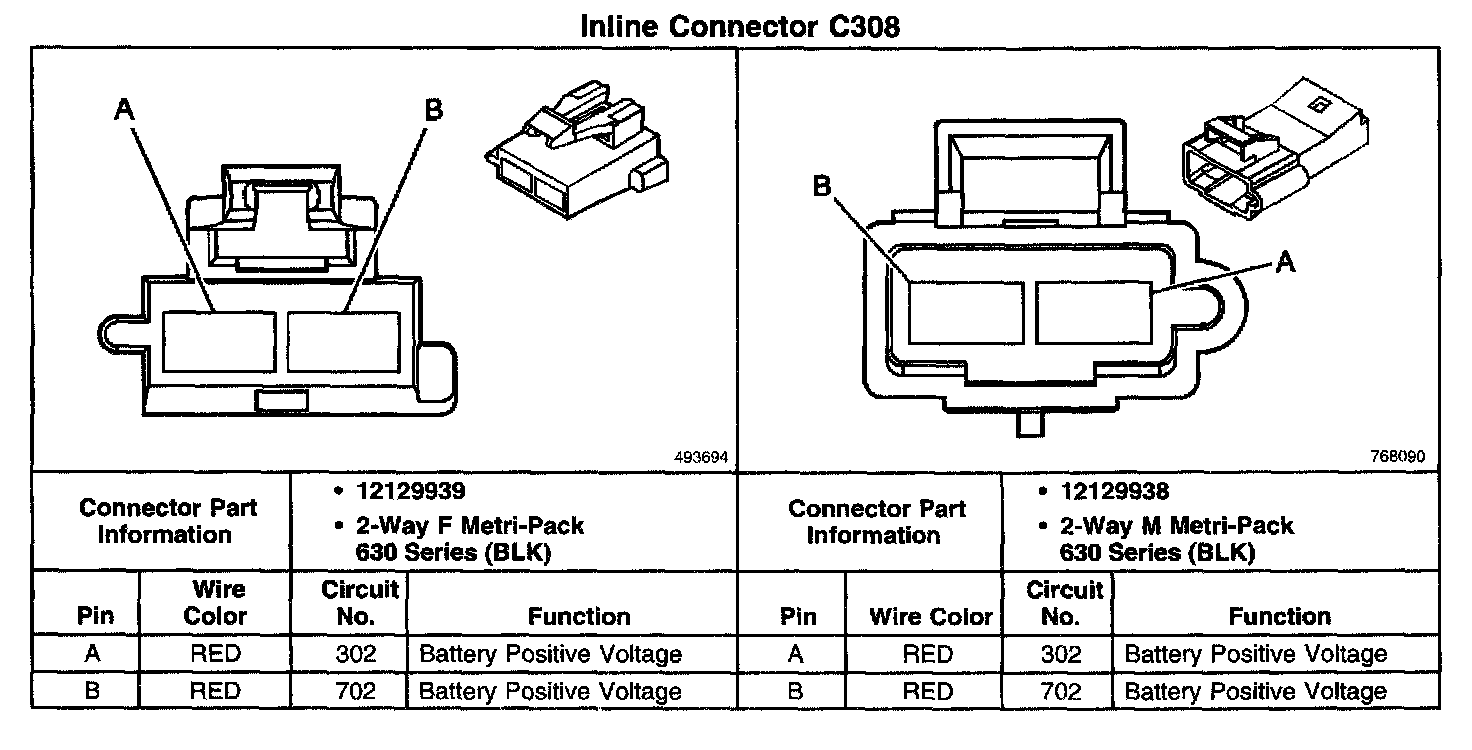

Inline Connector C308:
