Inflatable Restraint Side Impact Sensor (SIS)

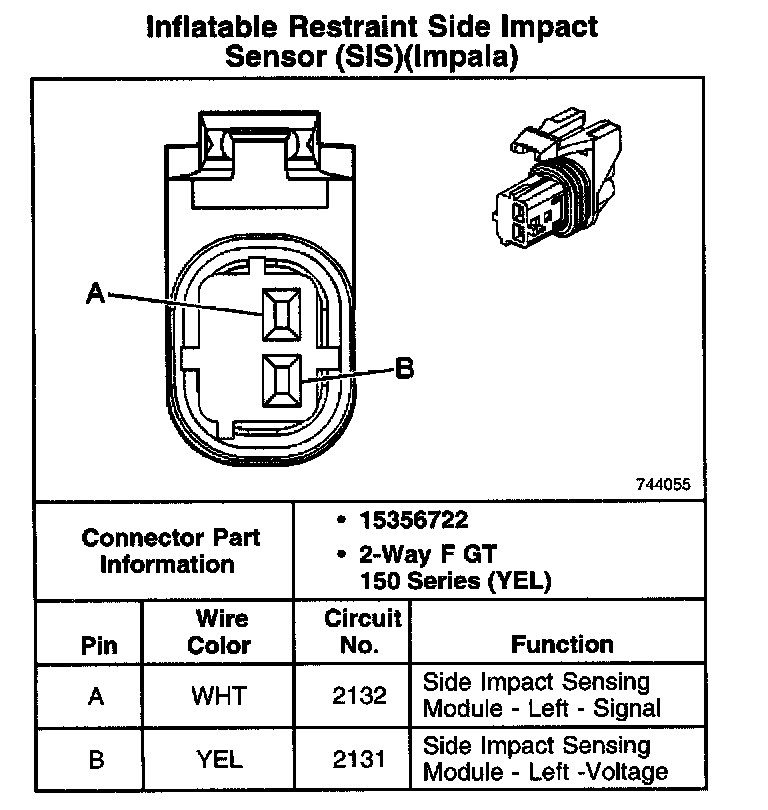

Inflatable Restraint Side Impact Sensor (SIS) (Impala):
