Seat Temperature Switch

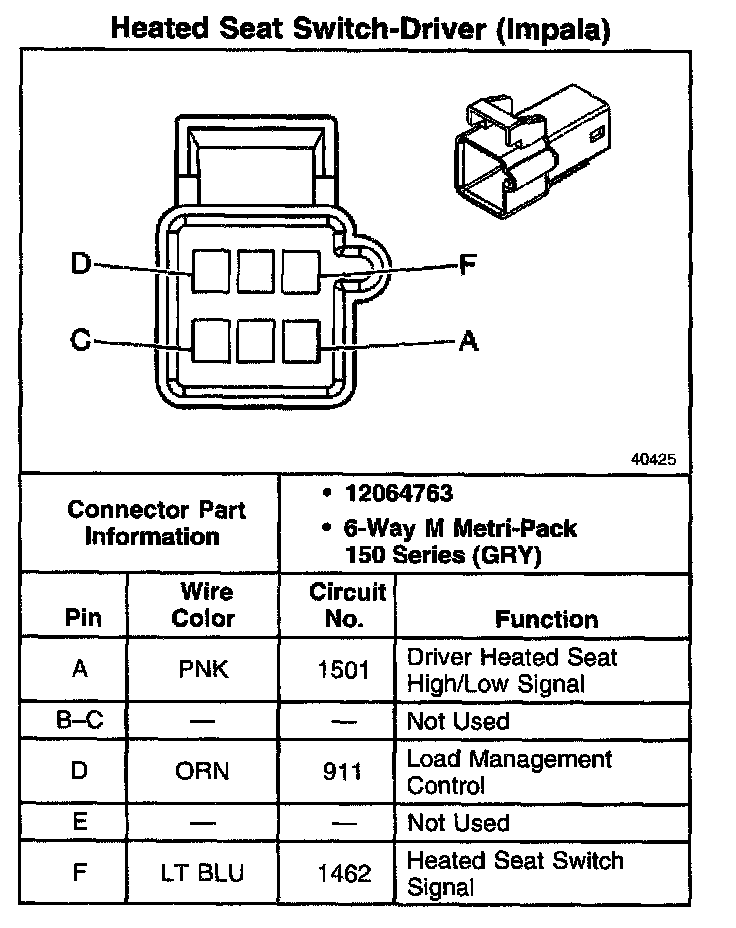

Heated Seat Switch-Driver (Impala):



Heated Seat Switch-Front Passenger (Impala):
