C900 - C999

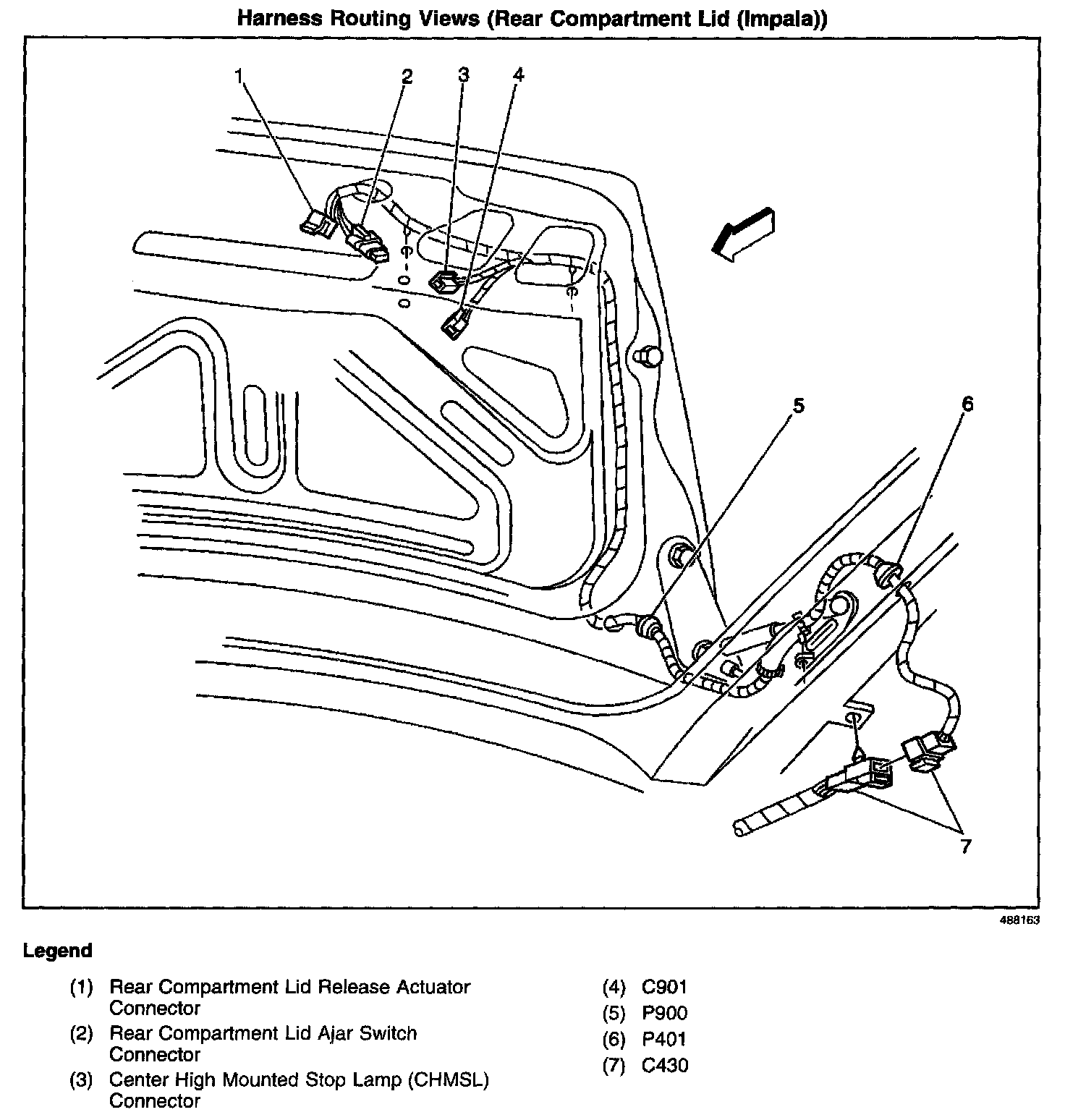

Harness Routing Views (Rear Compartment Lid (Impala)):

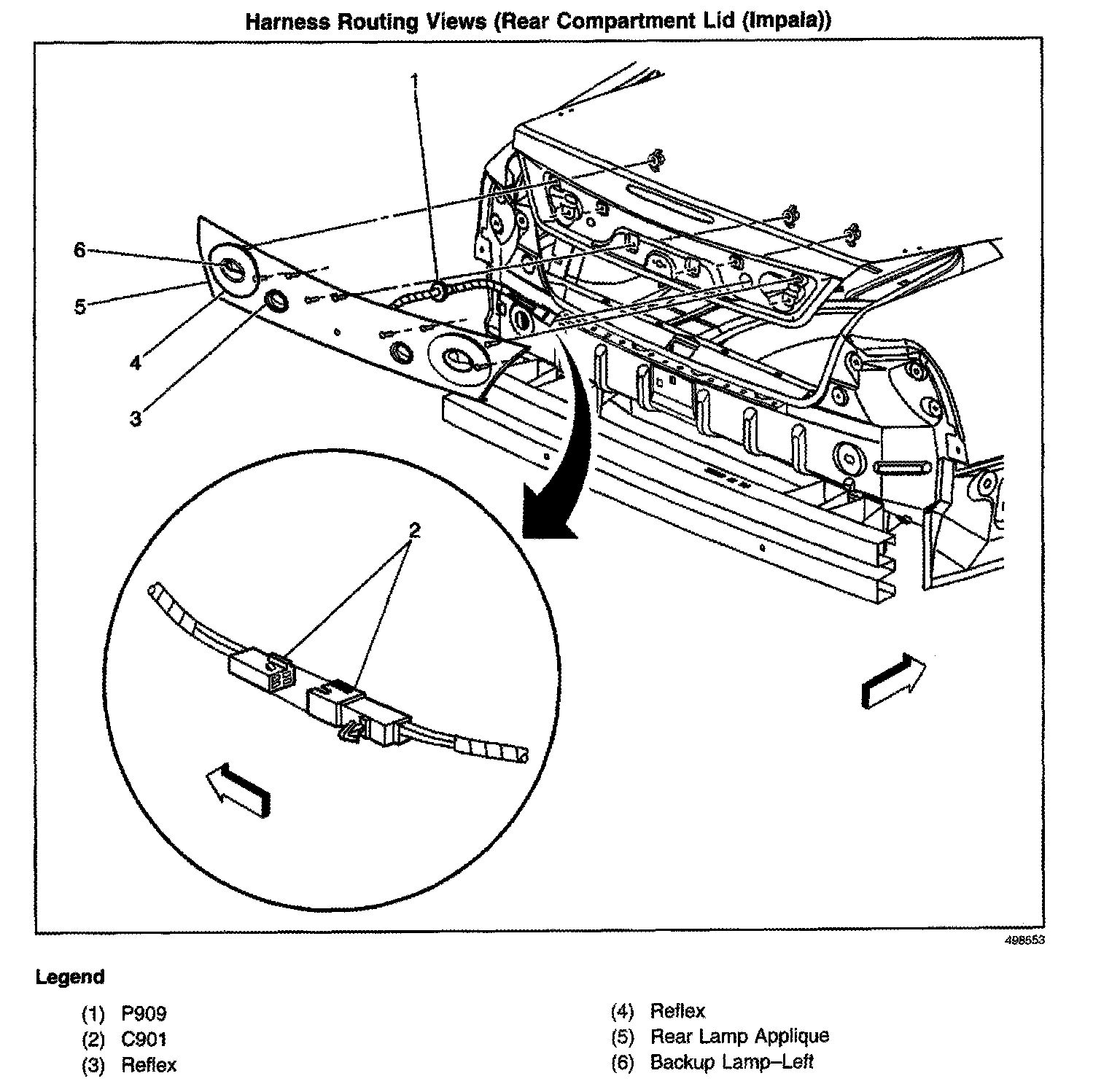

Harness Routing Views (Rear Compartment Lid (Impala)):
