Instrument Panel Cluster (IPC) - Trim Plate Bezel Replacement

Trim Plate Bezel Replacement - IP Cluster (Impala)

Removal Procedure

1. Apply the parking brake.

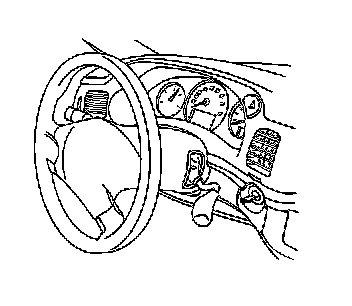

2. Using a small flat-bladed tool, remove the bezel from the ignition switch cylinder.




3. If the vehicle is equipped with a column shift, position the transaxle shift control indicator to 1. Keep the key in the ignition switch cylinder.
4. Adjust the steering wheel for access.

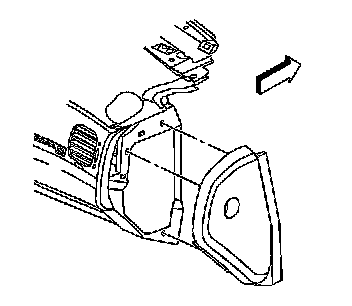

5. Remove the access covers from the right and the left instrument panel (IP) fuse block, as required.




6. Remove the screws from the IP cluster trim plate.
7. Starting at the right end of the IP cluster, grasp the trim plate and pull rearward.
8. Continue working around the IP cluster trim plate until all of the retainers are released from the IP trim pad.
9. Disconnect the electrical connectors from the hazard switch and from the traction control switch, if equipped.
10. Remove the IP cluster trim plate.

Installation Procedure




1. Position the IP cluster trim plate to the IP trim pad.
2. Connect the electrical connectors to the hazard switch and to the traction control switch, if equipped.
3. Press the IP cluster trim plate into the IP trim pad until the retainers are fully seated.

Notice: Refer to Fastener Notice in Service Precautions.

4. Install the IP cluster trim plate screws.

Tighten the screws to 2 N.m (18 lb in).




5. Install the access covers to the right and the left IP fuse block, as required.




6. Position the bezel retainers to the tabs on the ignition switch cylinder.




7. Install the bezel to the ignition switch cylinder pressing into place until fully seated.




8. Return the steering wheel to the original position.
9. If the vehicle is equipped with a column shift, position the transaxle shift control indicator to Park and remove the key from the ignition switch cylinder.
10. Release the parking brake.
