Junction Block-Underhood (Top) Wire Entry Pinout

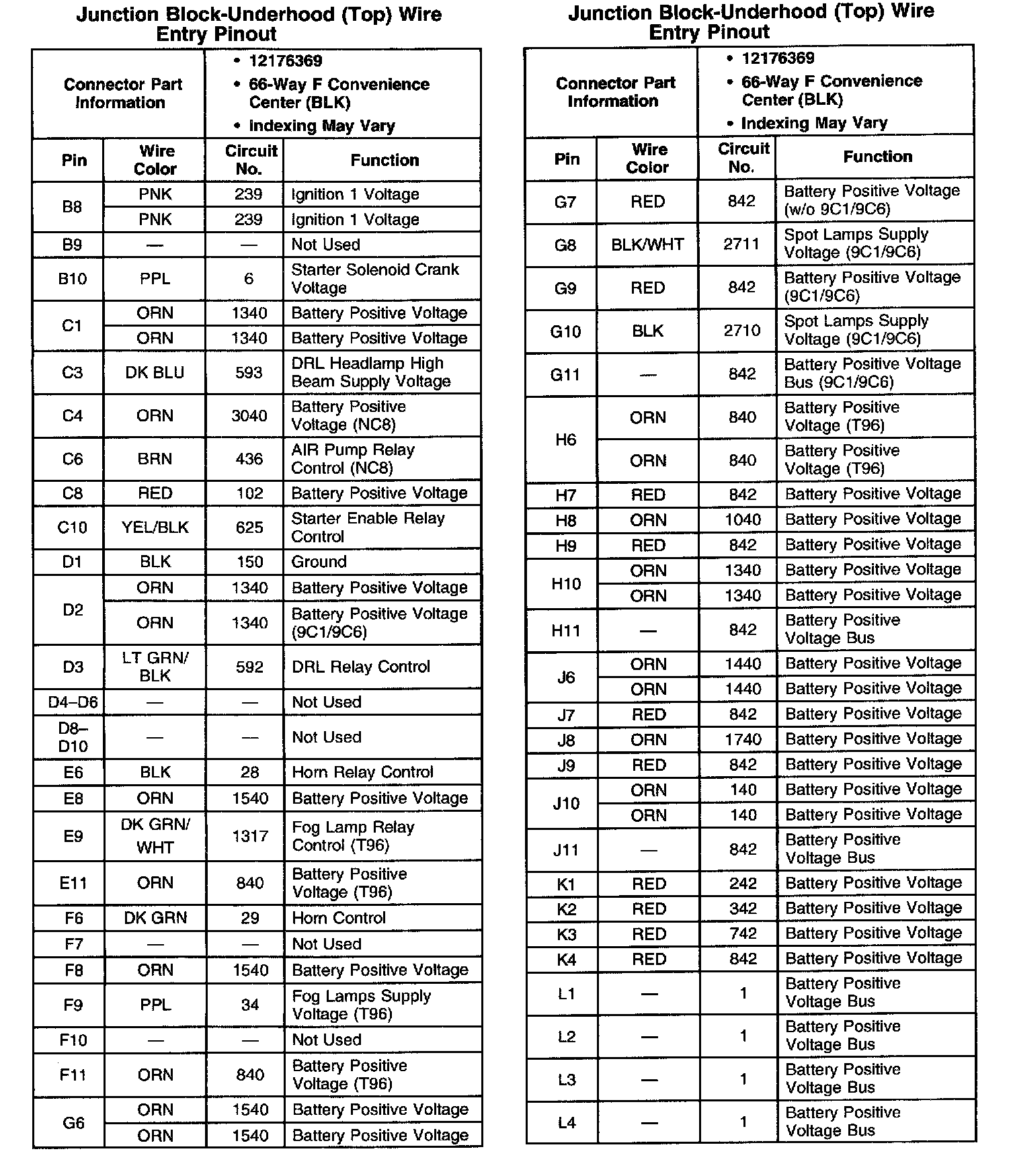

Junction Block-Underhood (Top) Wire Entry Pinout Part 1:

Junction Block-Underhood (Top) Wire Entry Pinout Part 2:

"For a description of the RPO Code(s) shown in this article or any of the images therein, refer to the RPO Code List found at Vehicle/Application. RPO Codes
