Rearview Mirror Replacement

Rearview Mirror Replacement

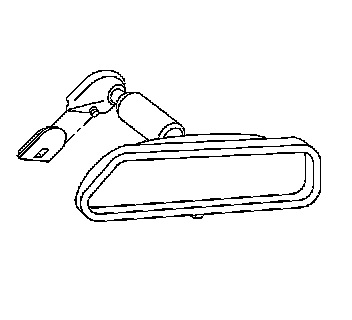

Removal Procedure

1. Remove the loosening screw at the rearview mirror support.
2. Disconnect the electrical connector, if equipped.




3. Slide the rearview mirror from the rearview mirror support.
4. Remove and retain the reading lamp bulbs, if equipped. Pry lens off with a flat bladed too to access bulb.

Installation Procedure

1. Install the reading lamp bulb to the socket, if equipped.
2. Install the lens. Ensure that the unit is retained.




3. Locate the rearview mirror support on the windshield.
4. Install the rearview mirror to the rearview mirror support, ensuring that the mirror is fully seated.
5. Connect the electrical connector, if equipped.

Notice: Refer to Fastener Notice in Service Precautions.

6. Install the screw at the rearview mirror support.

Tighten the screw to 2 N.m (18 lb in).
