Seat Replacement

Seat Replacement

Removal Procedure

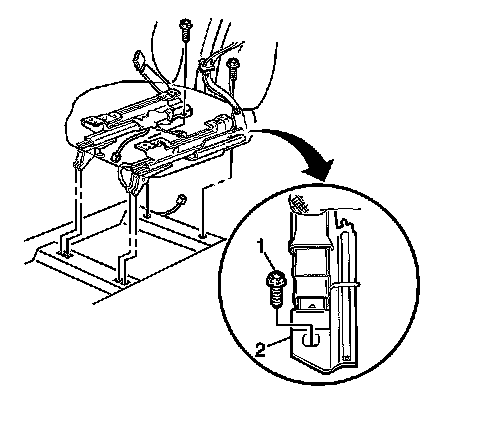

1. Position the front seat forward in order to gain access to the seat adjuster attaching bolts (1).
2. Remove the front seat adjuster attaching bolts (1).
3. Disconnect the seat belt wiring harness (driver's side only).
4. Disconnect the power seat electrical connector, if equipped, (driver's side only).
5. Remove the front seat. Manually tilt the seat forward in order to disengage the hooks from the floor pan.

Installation Procedure

1. Install the front seat. Manually tilt the seat forward in order to engage the hooks to the floor pan.
2. Connect the power seat electrical connector, if equipped, (driver's side only).
3. Connect the seat belt wiring harness (driver's side only).




4. Position the front seat forward in order to gain access to the seat adjuster attaching bolts (1).

Notice: Refer to Fastener Notice in Service Precautions.

5. Install the front seat adjuster bolts (1).

Tighten the bolts to 40 N.m (30 lb ft).
