Fuse Block Left IP
Fuse Block Left IP

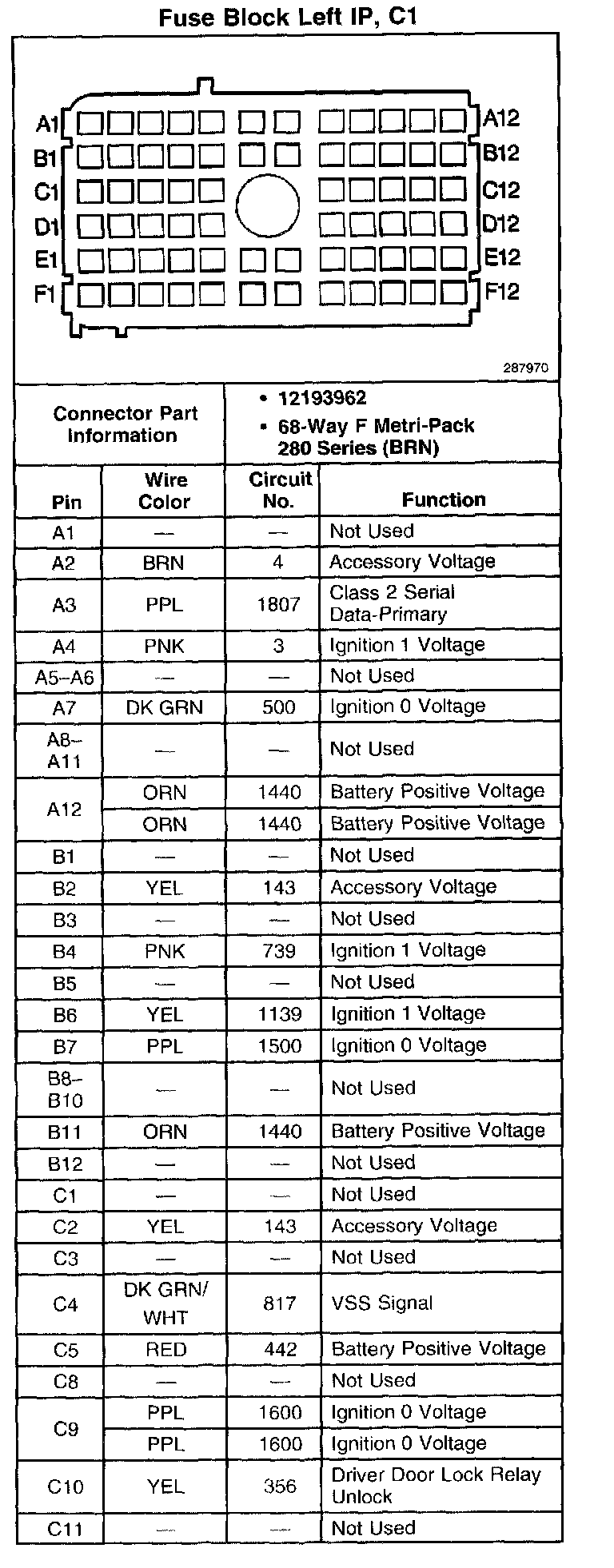

Fuse Block Left IP, C1 Part 1:

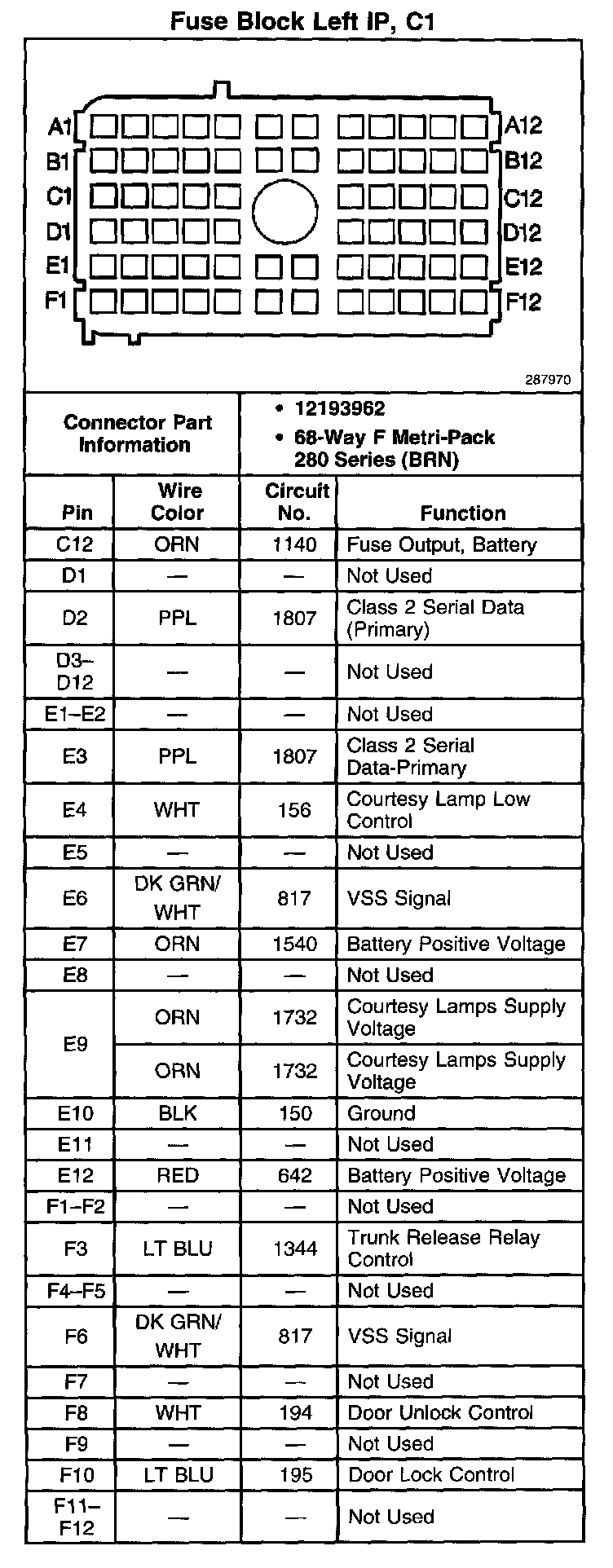

Fuse Block Left IP, C1 Part 2:

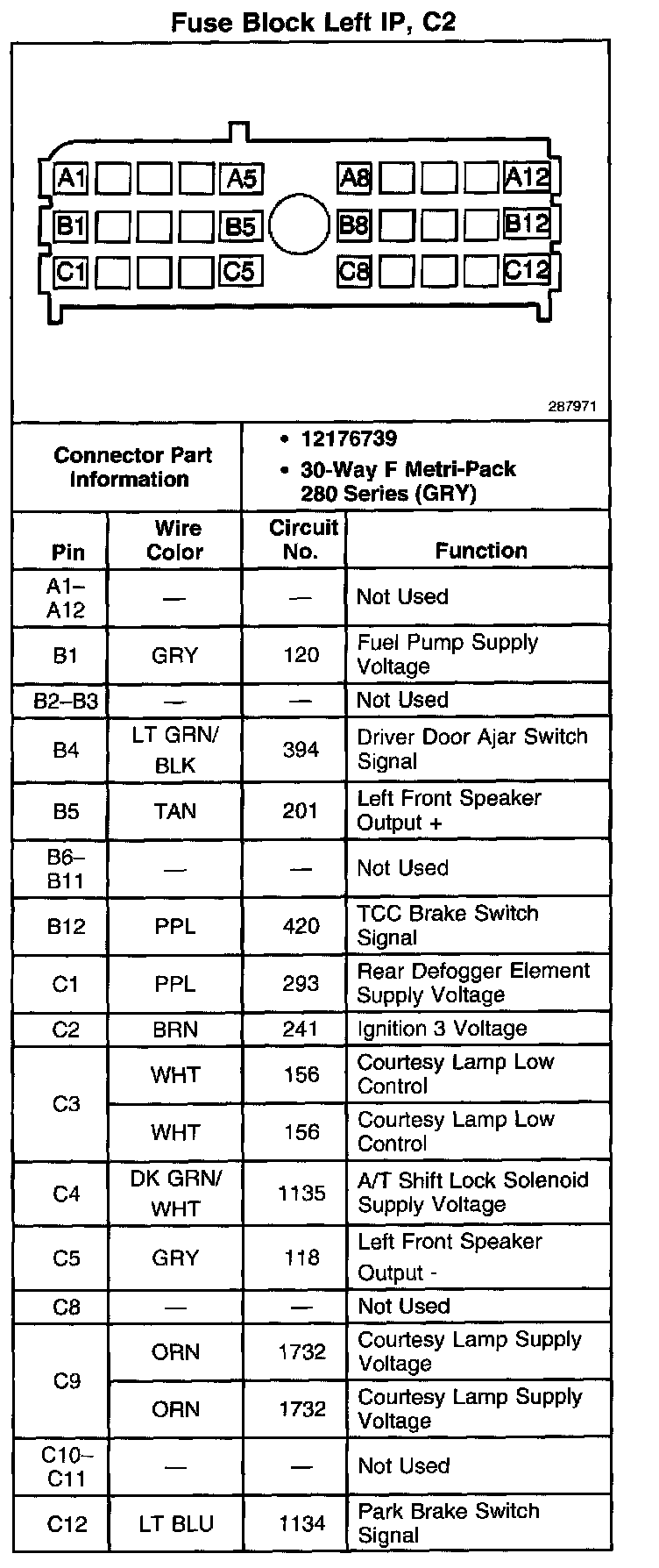

Fuse Block Left IP, C2:

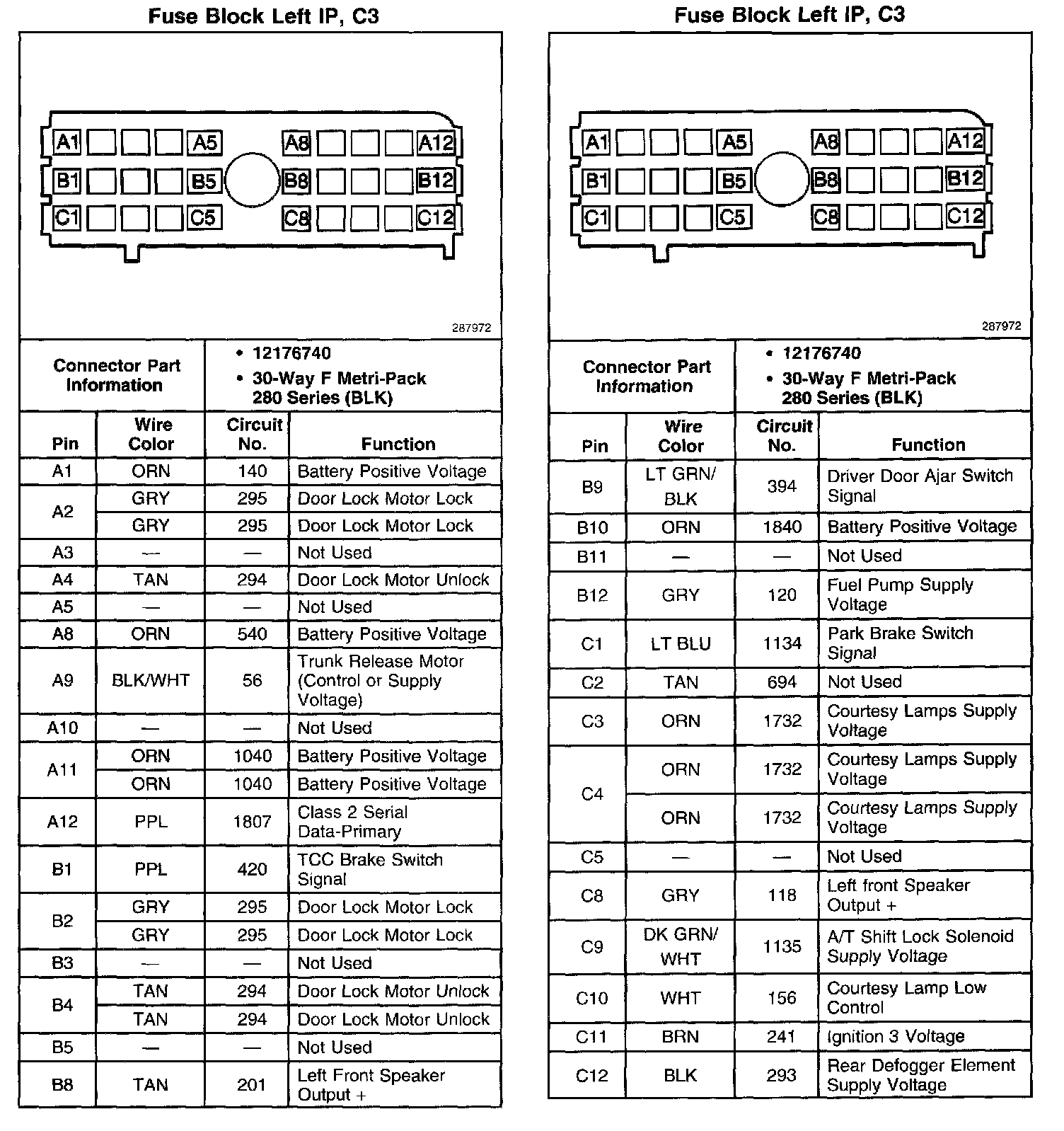

Fuse Block Left IP, C3:
