Fuse Block Underhood

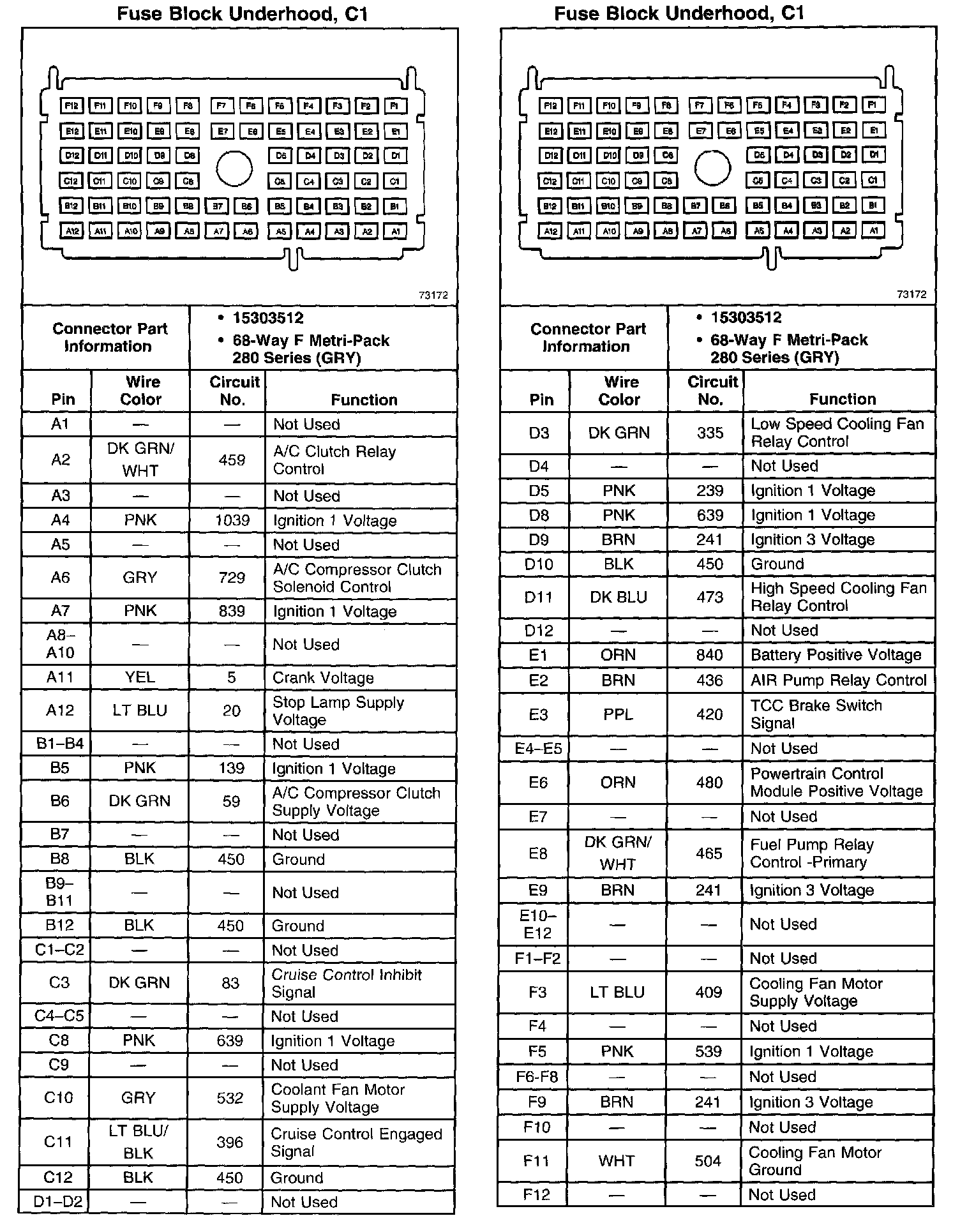

Fuse Block Underhood, C1:

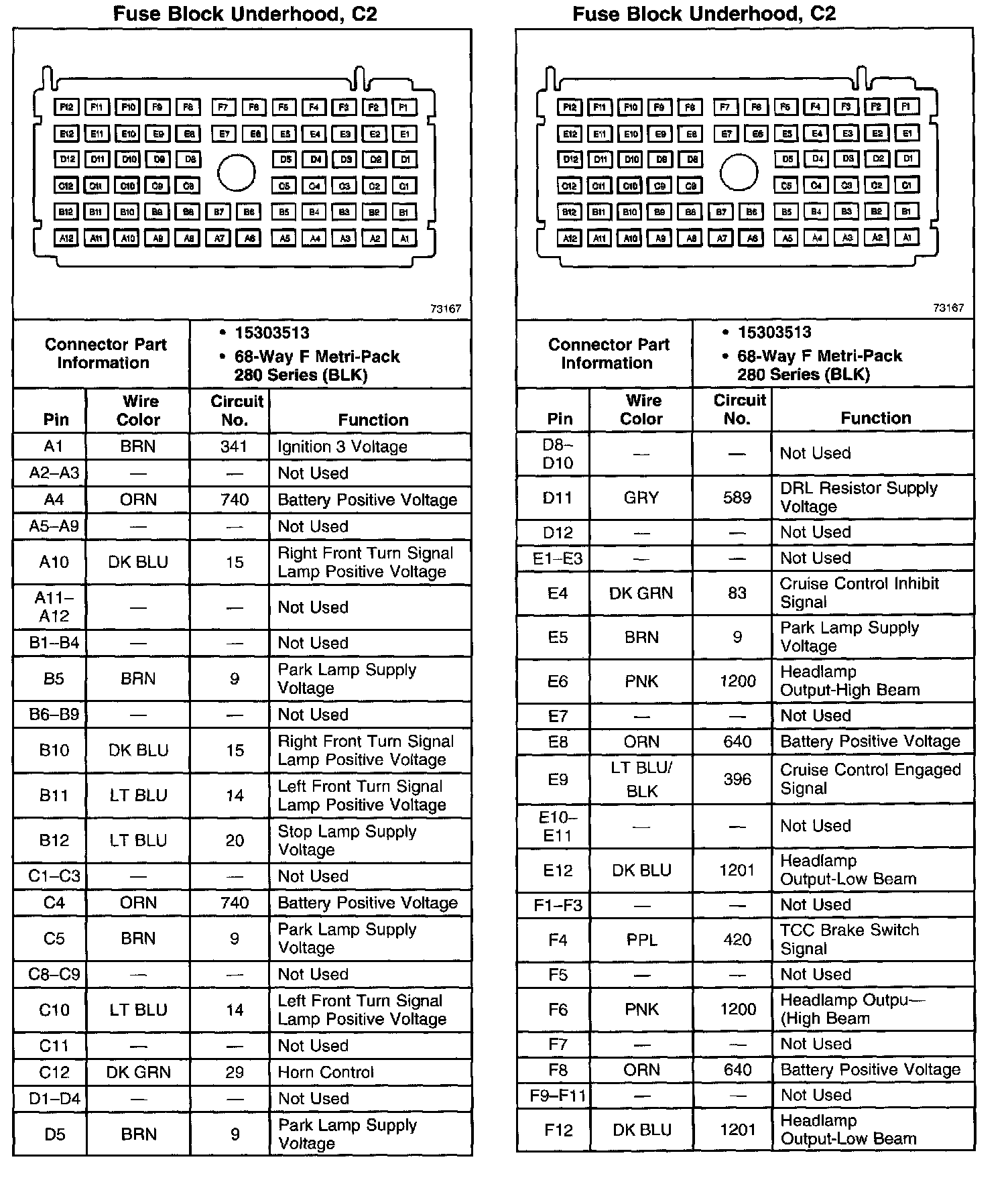

Fuse Block Underhood, C2:




Fuse Block Underhood, C3:

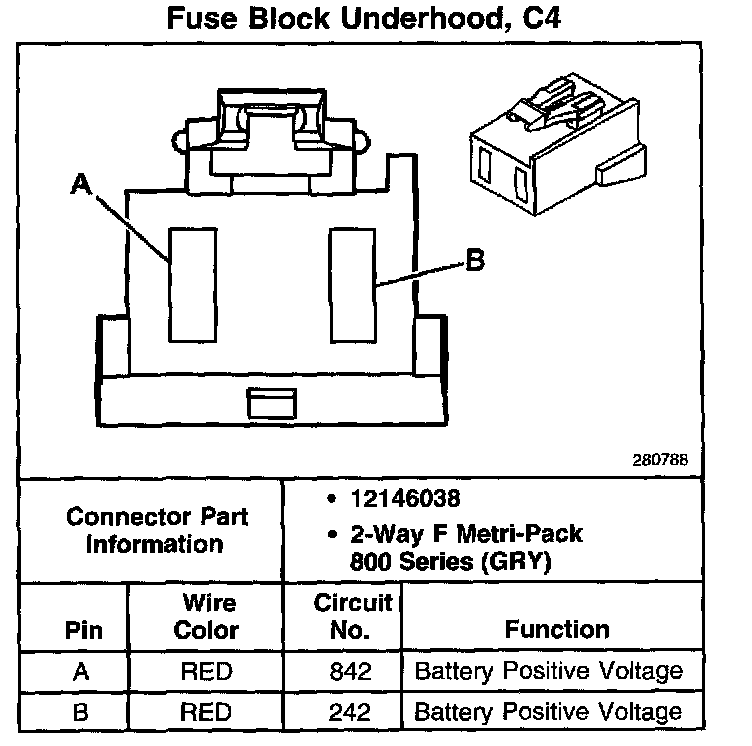

Fuse Block Underhood, C4:

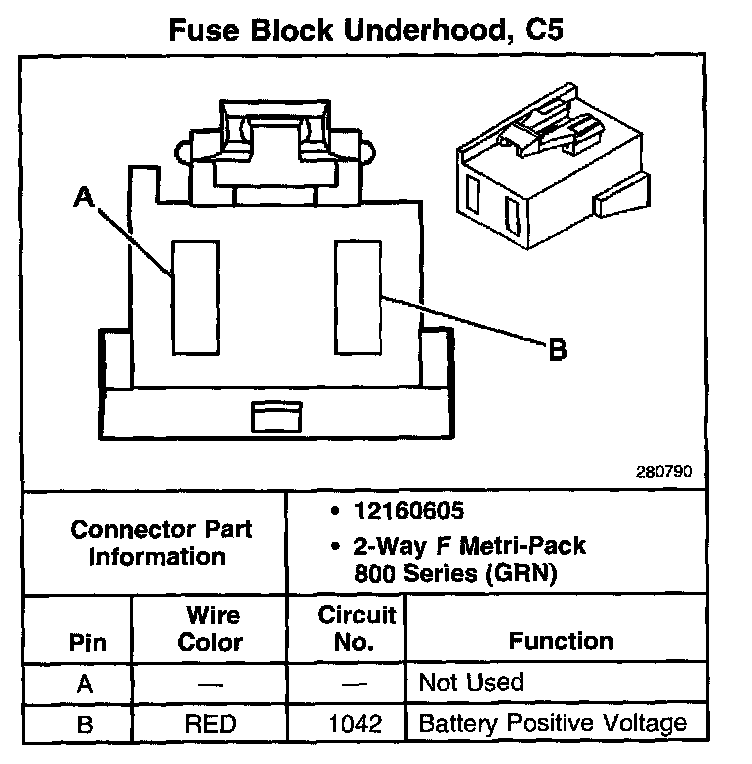

Fuse Block Underhood, C5:

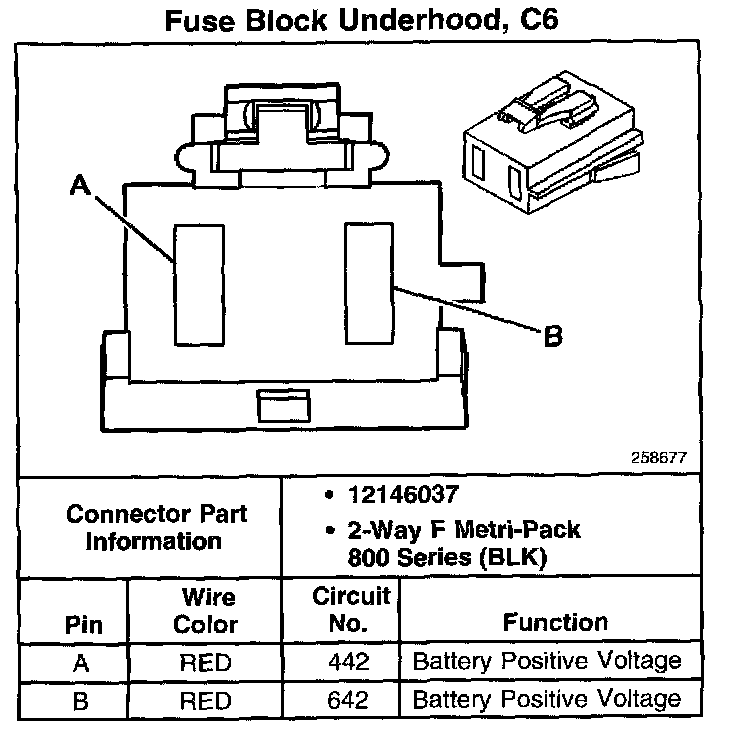

Fuse Block Underhood, C6:




Fuse Block Underhood, C7:
