Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
2002
>>
Malibu V6-3.1L VIN J
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Oxygen Sensor
>>

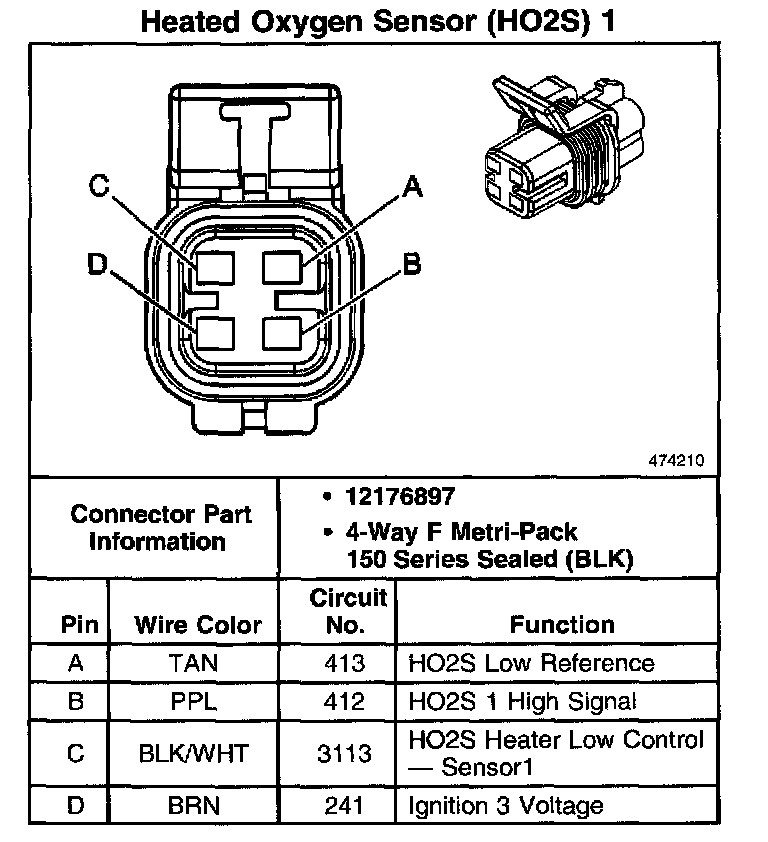

Heated Oxygen Sensor (HO2S 1)
Heated Oxygen Sensor (HO2S 1)
Heated Oxygen Sensor (HO2S) 1:
