Power Window Motor
Power Window Motor

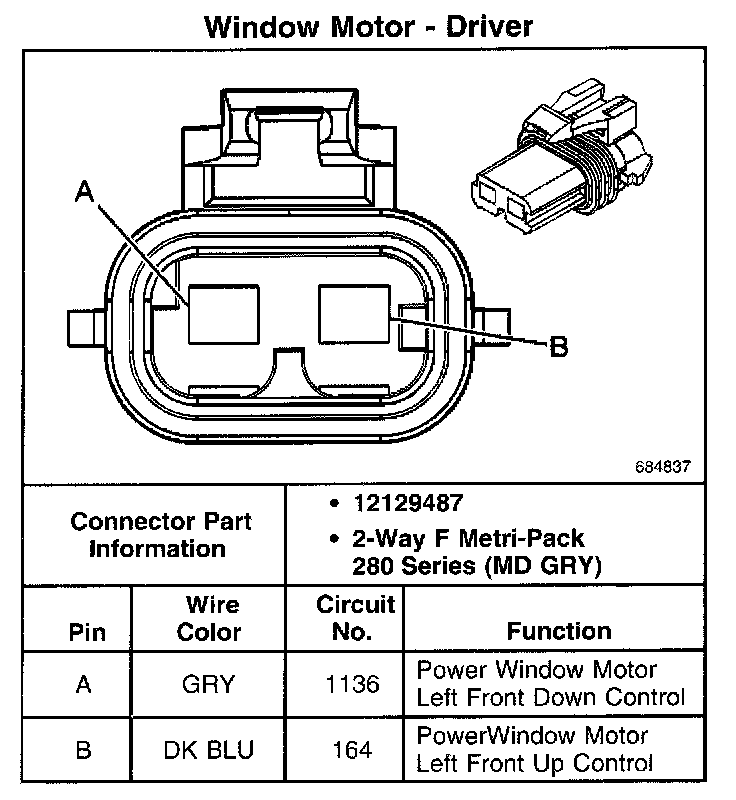

Window Motor - Driver:

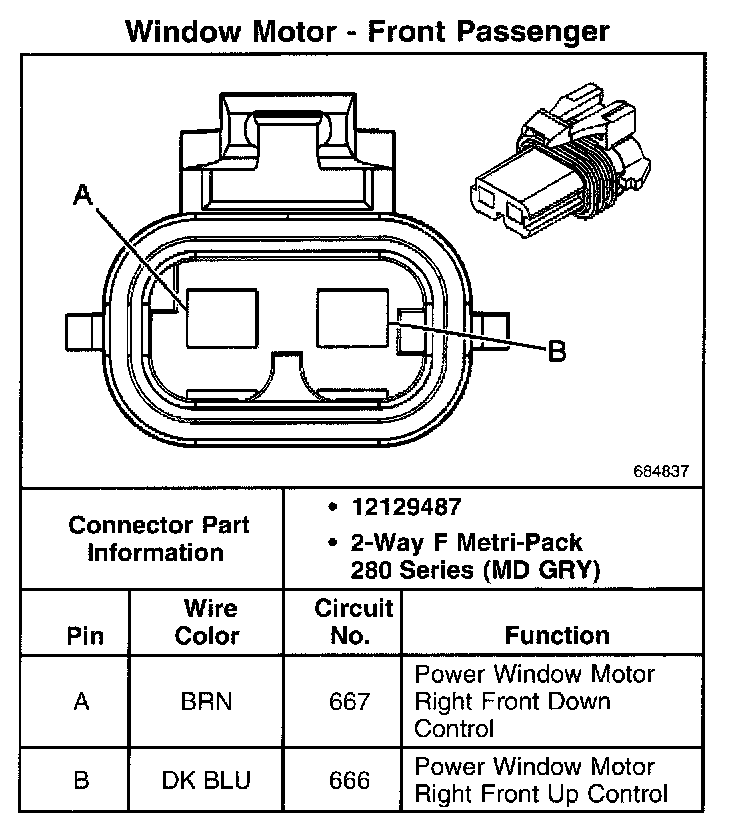

Window Motor - Front Passenger:

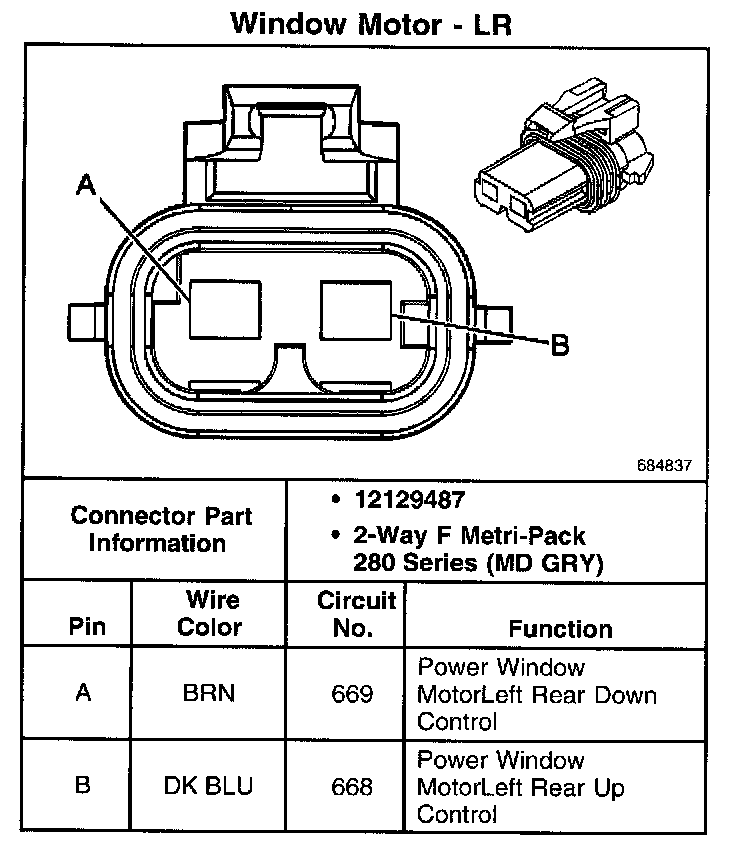

Window Mortor - LR:
Window Motor - RR:
