System Diagram

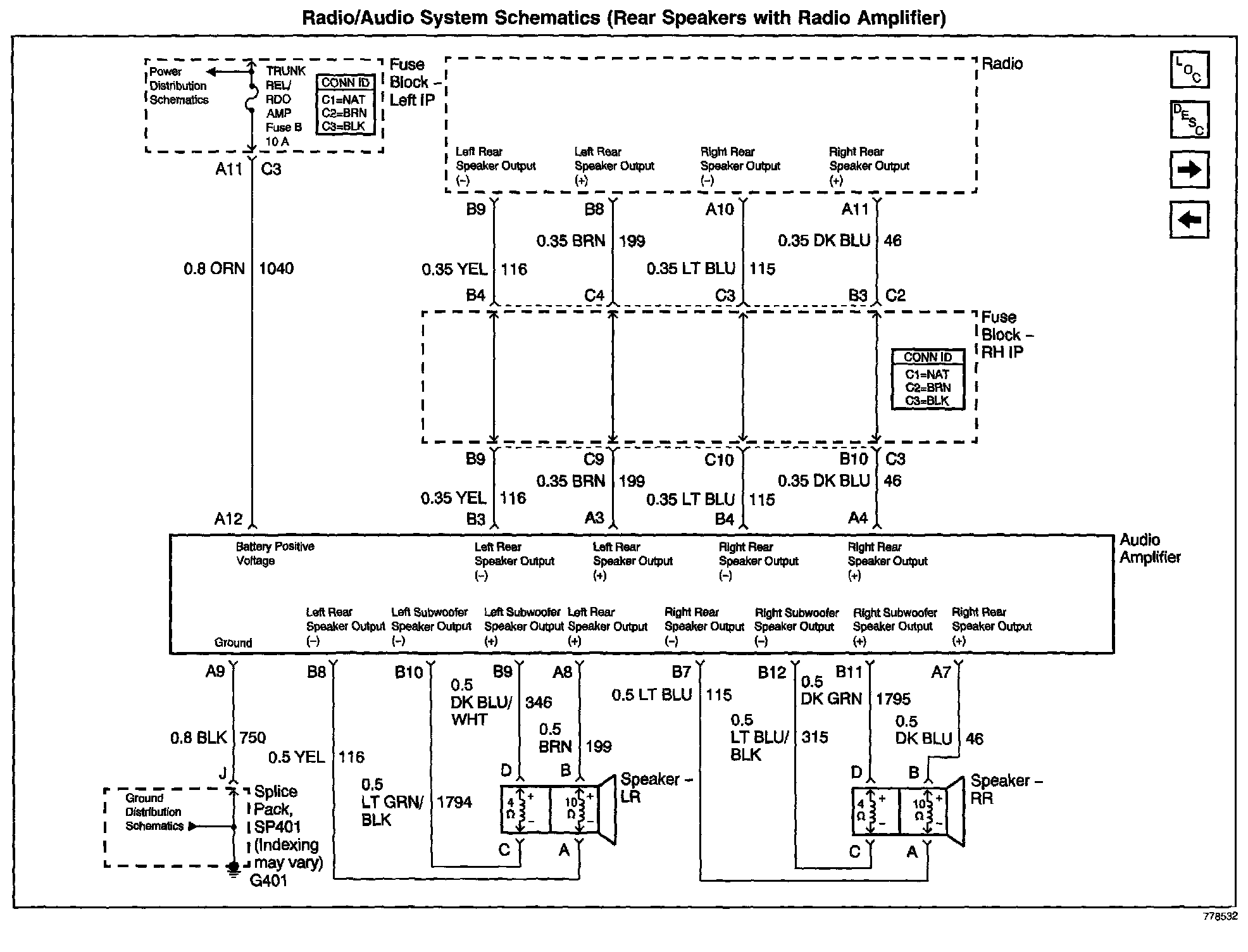

Radio/Audio System Schematics: Rear Speakers With Radio Amplifier:



Radio/Audio System Schematics: Rear Speakers Without Radio Amplifier:
