Vacuum and Vapor Hose Diagrams
>>
Heating and Air Conditioning
Heating and Air Conditioning

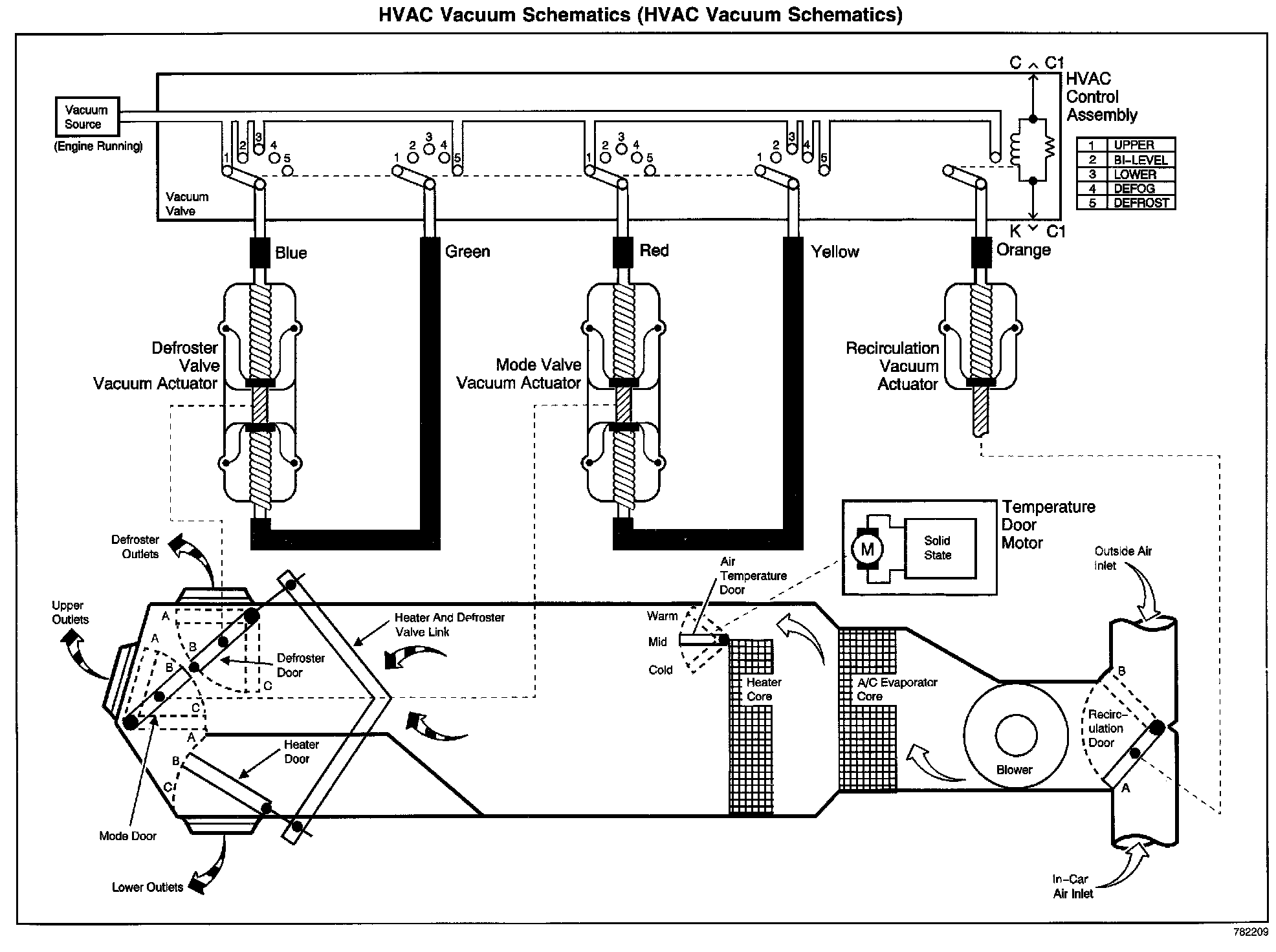

HVAC Vacuum Schematics: HVAC Vacuum Schematics:
