Blower Motor: Service and Repair
BLOWER MOTOR REPLACEMENTREMOVAL PROCEDURE

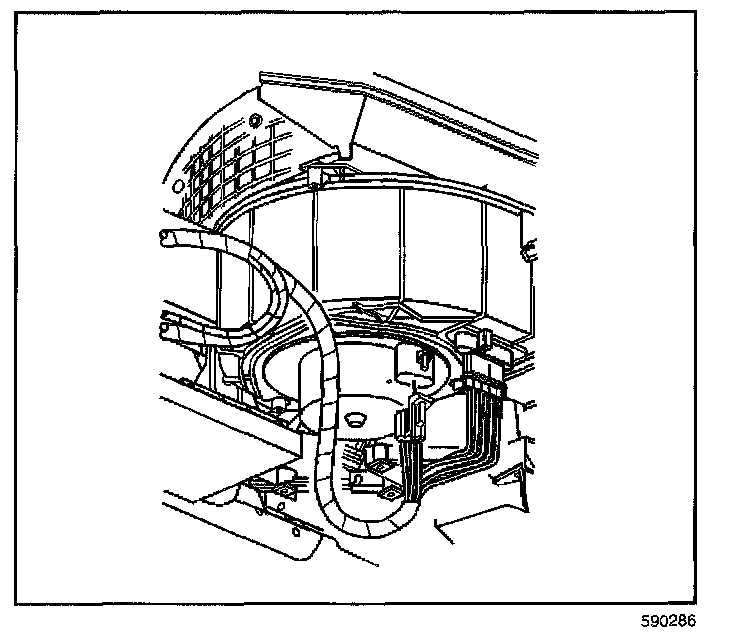

1. Remove the right side IP insulator.
2. Move the Body Control Module (BCM) aside.
3. Disconnect the blower motor electrical connector.

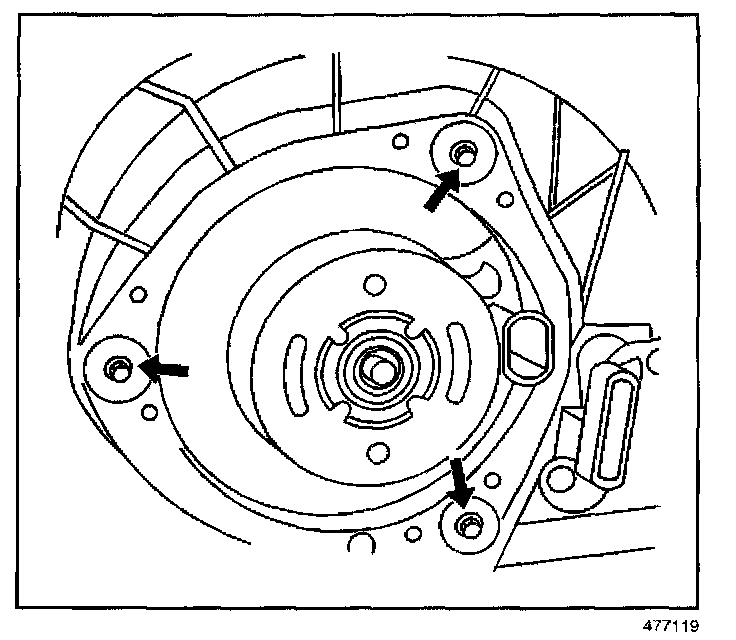

4. Remove the blower motor retaining screws.
5. Remove the blower motor and tan assembly.
INSTALLATION PROCEDURE
1. Install the blower motor and tan assembly.
NOTE: Refer to Fastener Notice in Service Precautions.

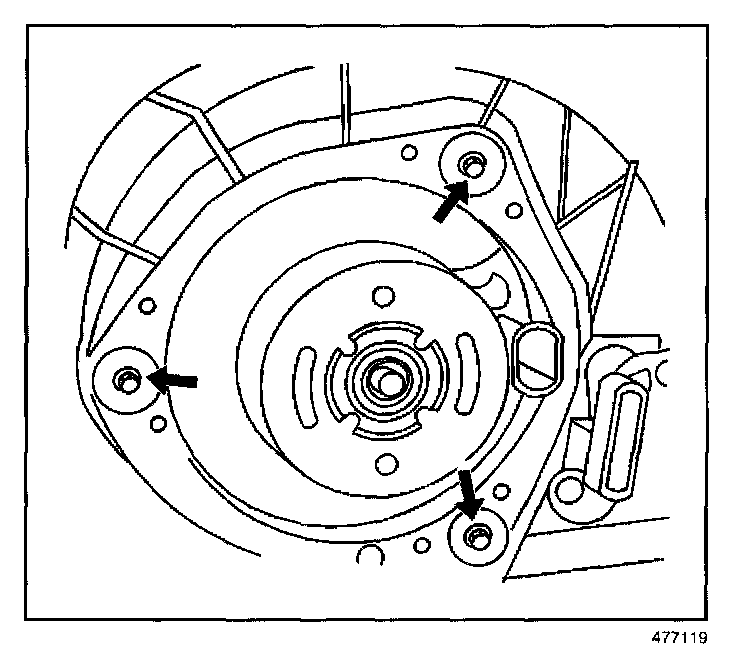

2. Install the retaining screws.
Tighten
Tighten the screws to 5 N.m (44 lb in).

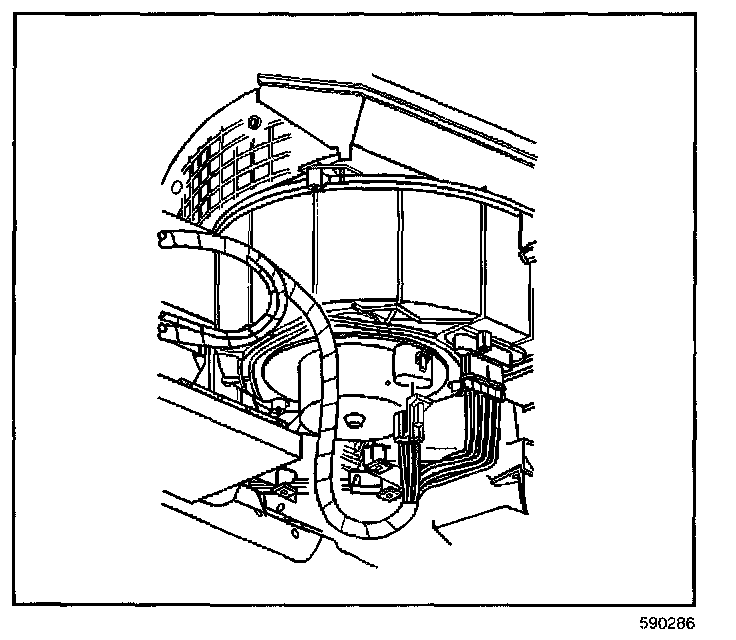

3. Connect the blower motor electrical connector.
4. Install the BCM into position.
5. Install the right side IP insulator.
